123E898E190 - White Outdoor 21" Walk-Behind Mower (1993) 21" ERS 6-Speed Convertible Mower Parts Diagram

21" Walk-Behind Mower

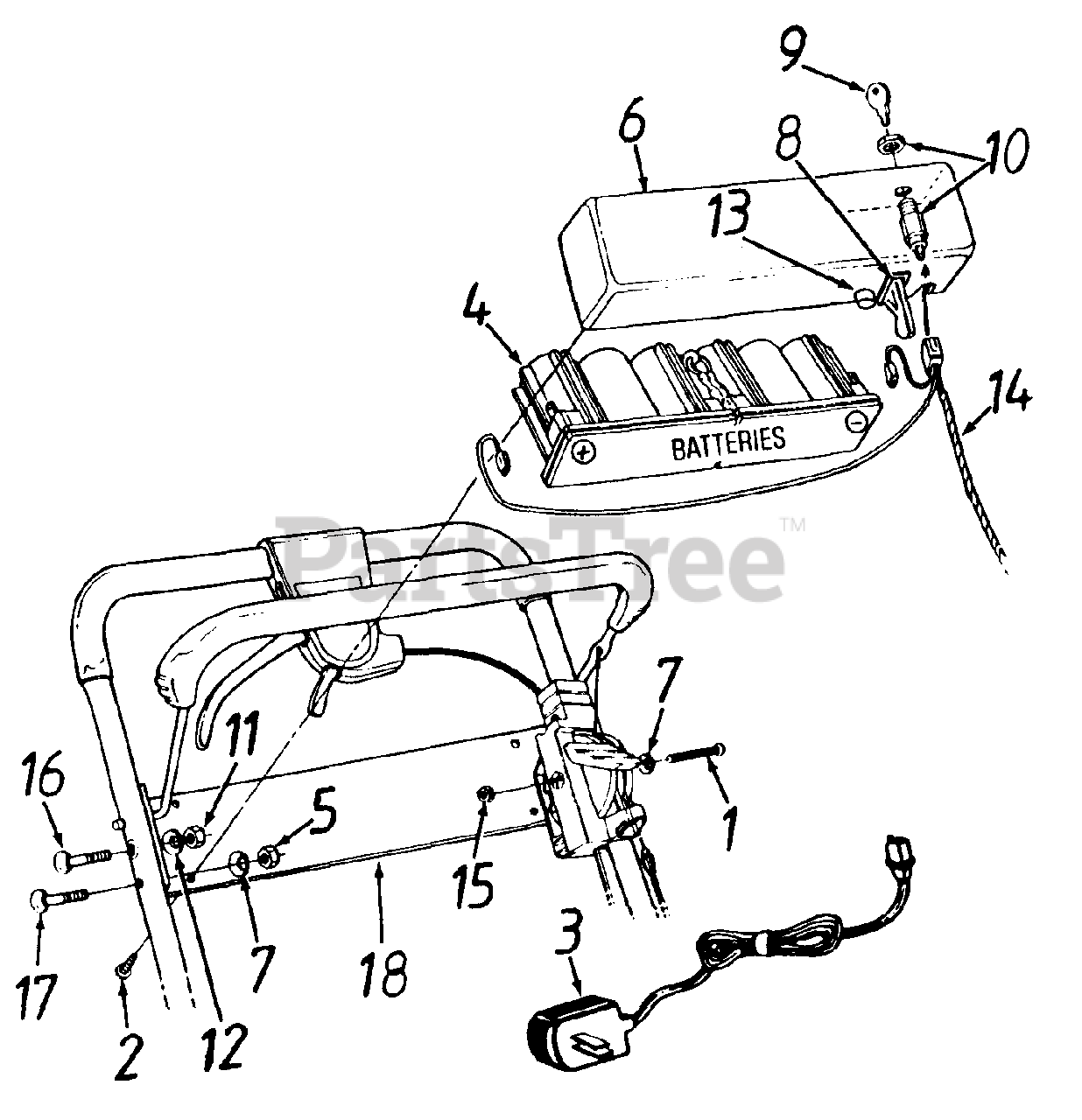

21" ERS 6-Speed Convertible Mower Parts Diagram

  • Title

1

White Outdoor 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$6.99

$

In Stock, only 1 left!

0

2

White Outdoor 710-0969

Truss Mach. Hi-Riser Tap Scr. 1" Lg.

$4.49

$

In Stock, only 3 left!

0

3

White Outdoor 725-0727

Battery Charger
(Superseded to 925-0727)

$72.99

$

In Stock, only 1 left!

0

4

White Outdoor 725-1276

Battery Pack - 12 Volt
(Superseded to 925-1276)

$172.99

$

Usually ships in 3-6 days

0

5

UNKNOWN

$

$

Not available

6

725-0891A

Battery Tray

$

$

Not available

7

UNKNOWN

$

$

Not available

8

White Outdoor 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

9

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 13

0

10

White Outdoor 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

11

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

12

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-1428

Fuse Holder
(Superseded to 925-1428)

$

$

Not available

White Outdoor 725-0298

Fuse - 7 1/2 amp
(Superseded to 925-0298)

Note: (Not shown)

$4.49

$

Usually ships in 3-6 days

0

14

White Outdoor 725-1442

Wire Harness
(Superseded to 925-1442)

$

$

Not available

15

White Outdoor 712-0291

Hex I-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

16

White Outdoor 710-0671

Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

17

White Outdoor 710-0111

Carr. Bolt 1/4-20 x 1.25" Lg.

$3.49

$

Usually ships in 3-6 days

0

18

White Outdoor 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Variations

White Outdoor 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$
