123P32-0009-H5 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump Group Parts Diagram

Vertical Engine

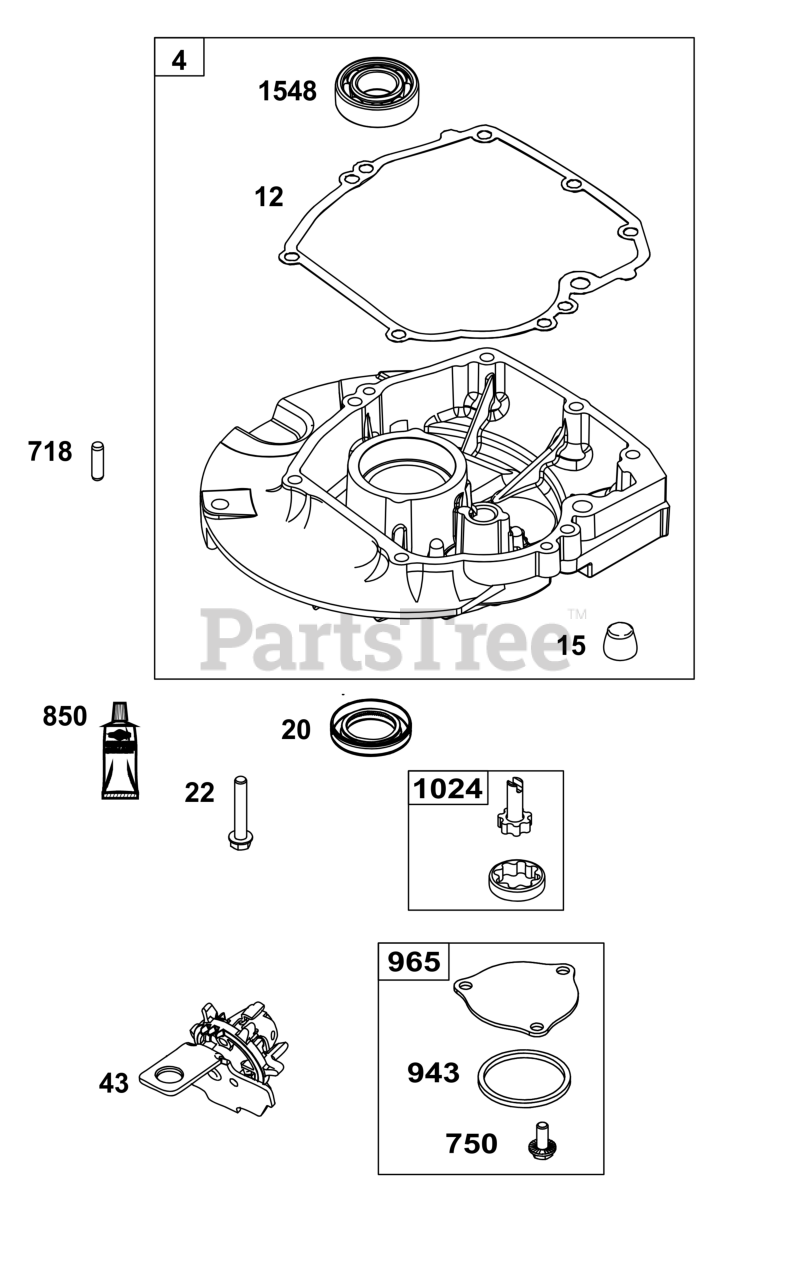

Crankcase Cover/Sump Group Parts Diagram

  • Title

4

Briggs & Stratton 592941

SUMP, Engine

$118.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 692232

GASKET, Crankcase

$5.99

$

In Stock, Qty 18

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, Qty 12

0

20

Briggs & Stratton 399781S

SEAL, Oil

Note: (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691092

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

43

SLINGER, Governor/Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available

718

PIN, Locating

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

750

Briggs & Stratton 692511

SCREW

Note: (Oil Pump Cover)

$3.99

$

Usually ships in 2-12 days

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 14

0

943

Briggs & Stratton 692514

SEAL, O-Ring

Note: (Oil Pump Cover)

$5.99

$

Usually ships in 2-12 days

0

965

COVER, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1024

PUMP, Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available

1548

Briggs & Stratton 798538

BEARING, Ball

Note: (Crankcase Cover/Sump)

$31.99

$

Usually ships in 2-12 days

0
