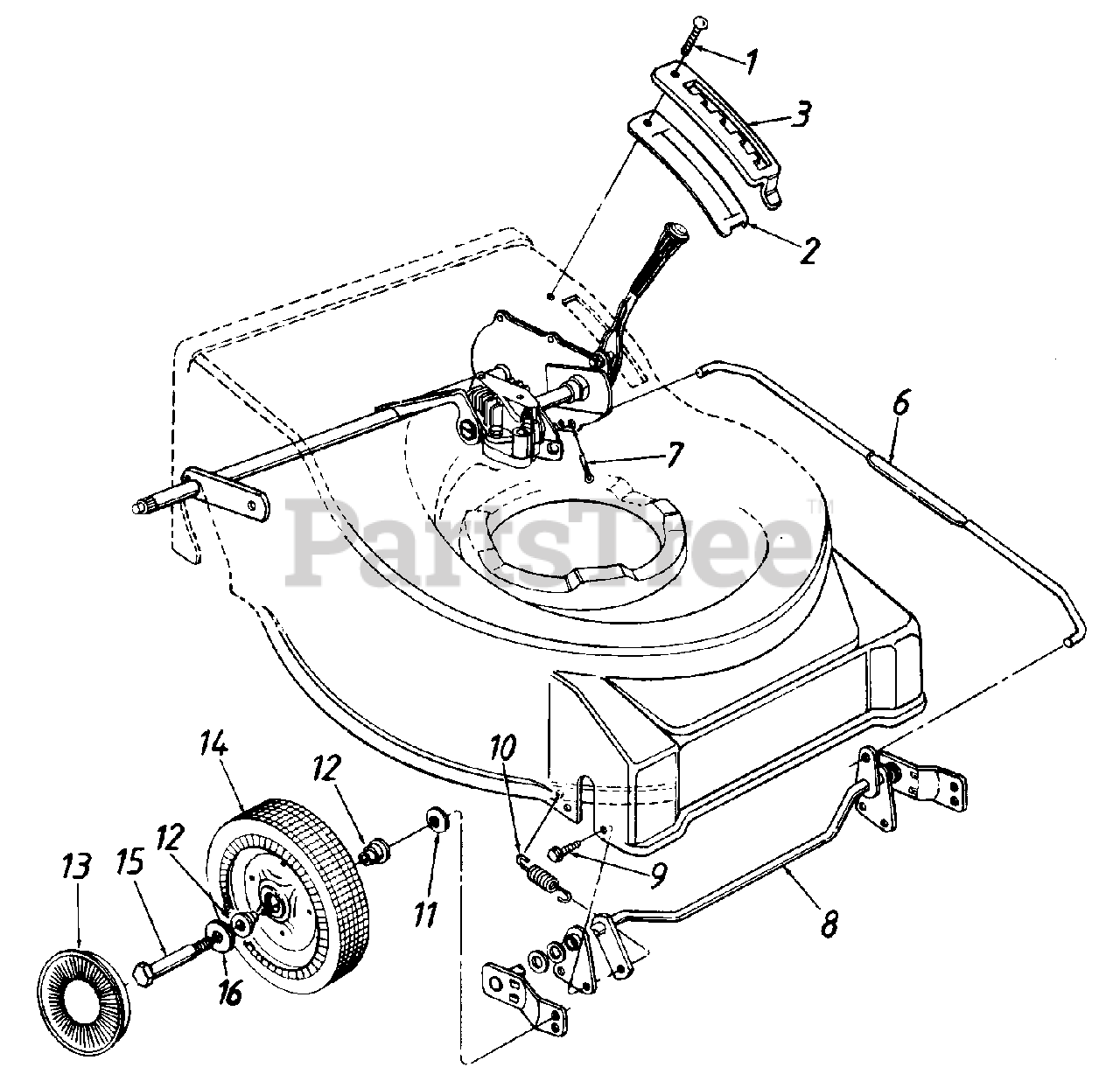

124-488F118 - Tradesman Walk-Behind Mower (1994) (Sam's Club) Wheel And Axle Ass'y Parts Diagram

Walk-Behind Mower

Wheel And Axle Ass'y Parts Diagram

  • Title
1

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

2

MTD 721-0216

Height Adjustment Support

$

$

Not available

3

MTD 17323

Height Adjustment Plate

$

$

Not available

6

MTD 747-0699

Height Adj. Connecting Rod

$

$

Not available

7

MTD 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 2 left!

0

8

MTD 17022

Front Axle Ass'y.
(Superseded to 17022-0637)

Variations

MTD 17022-0637

AXLE ASSY - POWDER BLACK (0637)

$136.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

9

MTD 710-0352

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

10

MTD 732-0589

Extension Spring 2.39" Lg.

$

$

Not available

11

MTD 736-0105

Bell-Wash. .380" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

12

Ball Bearing 1/2" I.D.

Note: See "Wheel Chart" illustration and parts list.

$

$

Not available

MTD 741-0484

Front Ball Brg.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

MTD 741-0486B

Rear Sleeve Brg.

$

$

Not available

MTD 741-0484

Front Ball Brg.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

MTD 741-0486B

Rear Sleeve Brg.

$

$

Not available

13

MTD 720-0249

Hub Cap Gray (3-1/2" Dia.)
(Superseded to 920-0249)

Note: Optional

$

$

Not available

13

MTD 731-0981A

Hub Cap Gray (5-1/2" Dia.)
(Superseded to 731-0981C)

Note: Optional

$10.99

$

In Stock, only 2 left!

0

13

MTD 731-0982A

Hub Cap Beige (5-1/2" Dia.)
(Superseded to 731-0982C)

Note: Optional

$11.99

$

In Stock, Qty 18

0

14

Wheel Ass'y. Comp. - Front

Note: See "Wheel Chart" illustration and parts list.

$

$

Not available

MTD 634-0020

Front Wheels 8" x 1.75" Bar Thread

$39.99

$

In Stock, Qty 6

0

MTD 734-1268

Front Wheels 8" x 1.75" "T" Tread

$71.99

$

Usually ships in 3-6 days

0

MTD 734-1512A

Front Wheels 8" x 2" "S" Wave
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

MTD 734-1513B

Front Wheels 8" x 2" "S" Wave
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

MTD 734-1412

Rear Wheels

$

$

Not available

MTD 734-1510B

Rear Wheels
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

MTD 734-1510B

Rear Wheels
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

15

MTD 738-0102

Shld. Bolt .498" Dia. x 1.45"

$9.99

$

In Stock, Qty 10

0

16

MTD 736-0504

Wave Wash. .51" I.D. x .78"
(Superseded to 936-0504)

Note: (Used w/Ball Bearings)

$4.49

$

In Stock, Qty 10

0
