124-488N190 - White Outdoor 21" Walk-Behind Mower (1994) Deck Parts Diagram

21" Walk-Behind Mower

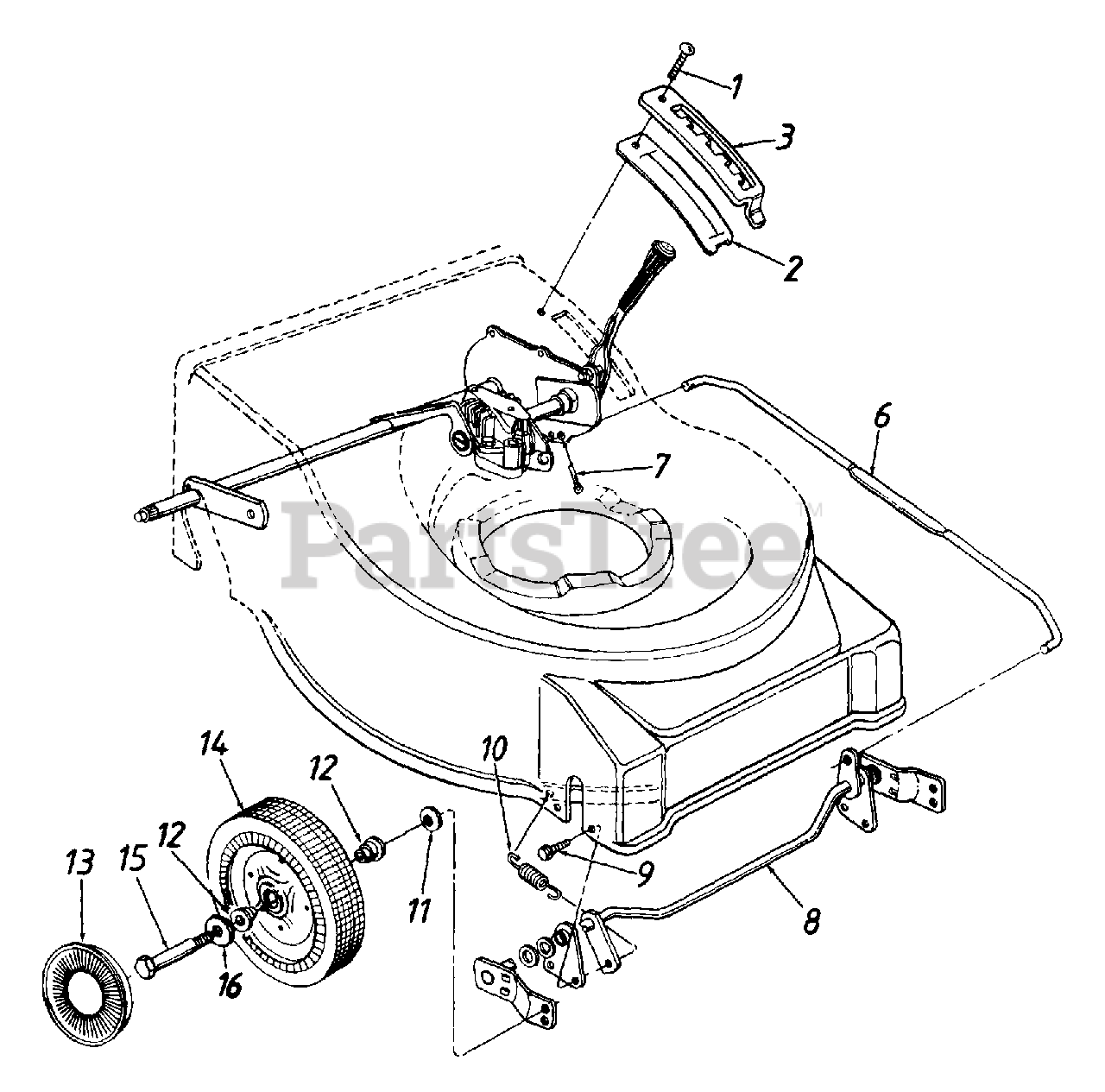

Deck Parts Diagram

  • Title

1

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.99

$

In Stock, Qty 14

0

2

MTD 721-0216

Height Adjustment Support

Note: NLA

$

$

Not available

3

MTD 17323

Height Adjustment Plate

Note: NLA

$

$

Not available

6

MTD 747-0699

Height Adj. Connecting Rod

Note: NLA

$

$

Not available

7

MTD 914-0507

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 17

0

8

MTD 17022-0637

Front Axle Ass'y.

$144.99

$

Usually ships in 3-6 days

0

9

MTD 710-0352

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

10

MTD 732-0589

Extension Spring 2.39" Lg.

Note: NLA

$

$

Not available

11

MTD 736-0105

Bell-Wash. .380" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

12

MTD 941-0484

Ball Bearing 1/2" I.D.

$7.99

$

Usually ships in 3-6 days

0

13

MTD 731-0981C

Hub Cap

$11.99

$

In Stock, Qty 6

0

14

MTD 734-1793

Wheel Ass'y. Comp. - Front

Note: NLA

$

$

Not available

15

MTD 938-0102

Shld. Bolt .498" Dia. x 1.45"
(Superseded to 738-0102)

$

$

Not available

16

MTD 936-0504

Wave Wash. .51" I.D. x .78"

$4.99

$

In Stock, only 2 left!

0
