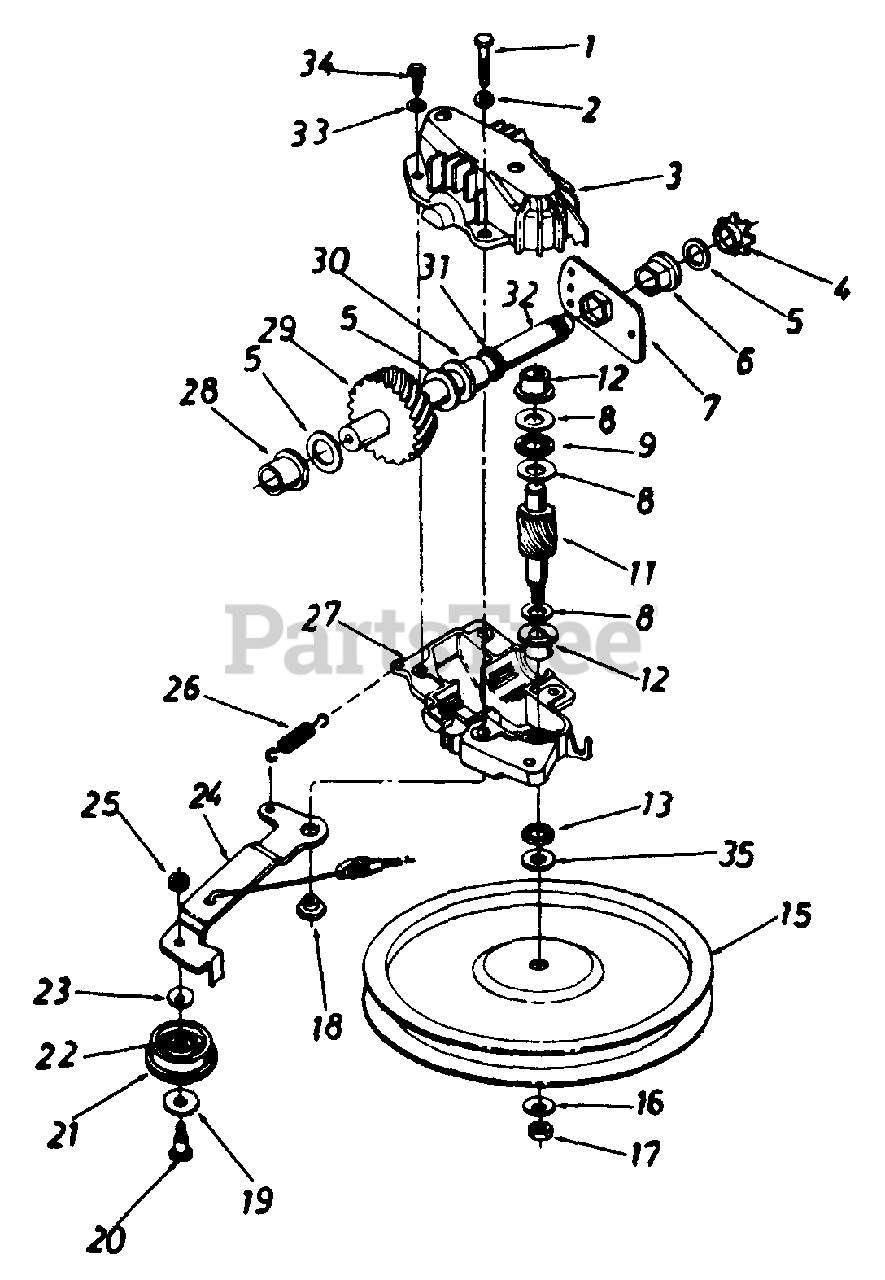

124-488N190 - White Outdoor 21" Walk-Behind Mower (1994) > Parts Diagrams (3) > Transmission

  • Title
710-1062

1

Hex Bolt 1/4-20 x 1.25" Lg. w/Patch

Part# 710-1062

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.05

936-0329

2

L-Wash. 1/4" I.D.

Part# 936-0329

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

717-0418A

3

Upper Hsg. Half

Part# 717-0418A

OEM Warranty Repair Part for MTD

Not available

713-0400

4

#48 Sprocket 7 Tooth x 1/2 Pitch

Part# 713-0400

OEM Warranty Repair Part for MTD

Not available

936-0336

5

Fl-Wash. 5/8" I.D. x .030

Part# 936-0336

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

941-0413

6

Hex Flange Brg. .631" I.D.

Part# 941-0413

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $6.73

16500A-0637

7

Hex Bearing Cup

Part# 16500A-0637

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $6.92

936-0314

8

Thrust Wash. .382" I.D. x .70" O.D.

Part# 936-0314

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

741-0479

9

Thrust Bearing .375" I.D. x .812" O.D.

Part# 741-0479

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $7.40

917-1216

11

11 Tooth Pinion Shaft

Part# 917-1216

OEM Warranty Repair Part for MTD

Not available

748-0208A

12

Flange Bearing

Part# 748-0208A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.92

721-0212

13

Oil Seal

Part# 721-0212

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $6.65

756-0330A

15

Fl-Pulley 5.06" O.D.

Part# 756-0330A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $27.24

736-0270

16

Bell-Wash, .265" I.D. x .75"

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.66

912-0351

17

Hex L-Nut 1/4-28 L.H. Thd.

Part# 912-0351 (Superseded to 712-04326)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $9.74

738-0440

18

Shld. Spacer .375" Dia. x .170

Part# 738-0440

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.00

936-0344

19

Fl-Wash. .390" I.D. x 1.0"

Part# 936-0344

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.07

938-0826

20

Shld. Bolt .375" Dia. x .40"

Part# 938-0826

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.24

956-0008

21

Fl-Idler Plastic 1.50" Dia.

Part# 956-0008

Note: Incl. Ref. #22

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.93

941-0556

22

Needle Brg. .375" x .31

Part# 941-0556

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.63

736-0270

23

Bell-Wash. .265" I.D. x .75"

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.66

17052A

24

Idler Brk't. Ass'y.

Part# 17052A

OEM Warranty Repair Part for MTD

Not available

912-0138

25

Hex Patch L-Nut 1/4-28 Thd.

Part# 912-0138

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.44

932-0357A

26

Extension Spring 1.12" Lg.

Part# 932-0357A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

717-0419A

27

Lower Hsg. Half

Part# 717-0419A

Note: NLA

OEM Warranty Repair Part for MTD

Not available

941-0415

28

Flange Bearing .566 Dia.

Part# 941-0415

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $6.82

717-0616A

29

33 Tooth Helical Gear

Part# 717-0616A

OEM Warranty Repair Part for MTD

Not available

741-0414

30

Flange Bearing .629 Dia.

Part# 741-0414

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $6.97

721-0213

31

Oil Seal .625 Dia.

Part# 721-0213

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.44

717-0616A

32

Gear Sprocket Shaft

Part# 717-0616A

OEM Warranty Repair Part for MTD

Not available

936-0722

33

L-Wash. #10 I.D.

Part# 936-0722

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.65

710-0651

34

Hex B-Tap Scr. #10 x .62"

Part# 710-0651

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.34

936-0410

35

Hex Washer .26" x .88"

Part# 936-0410

OEM Warranty Repair Part for MTD

Not available

917-0417B

Transmission Comp.

Part# 917-0417B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $176.37
