124 C - Husqvarna String Trimmer (2009-03) Repairs Parts Parts Diagram

String Trimmer

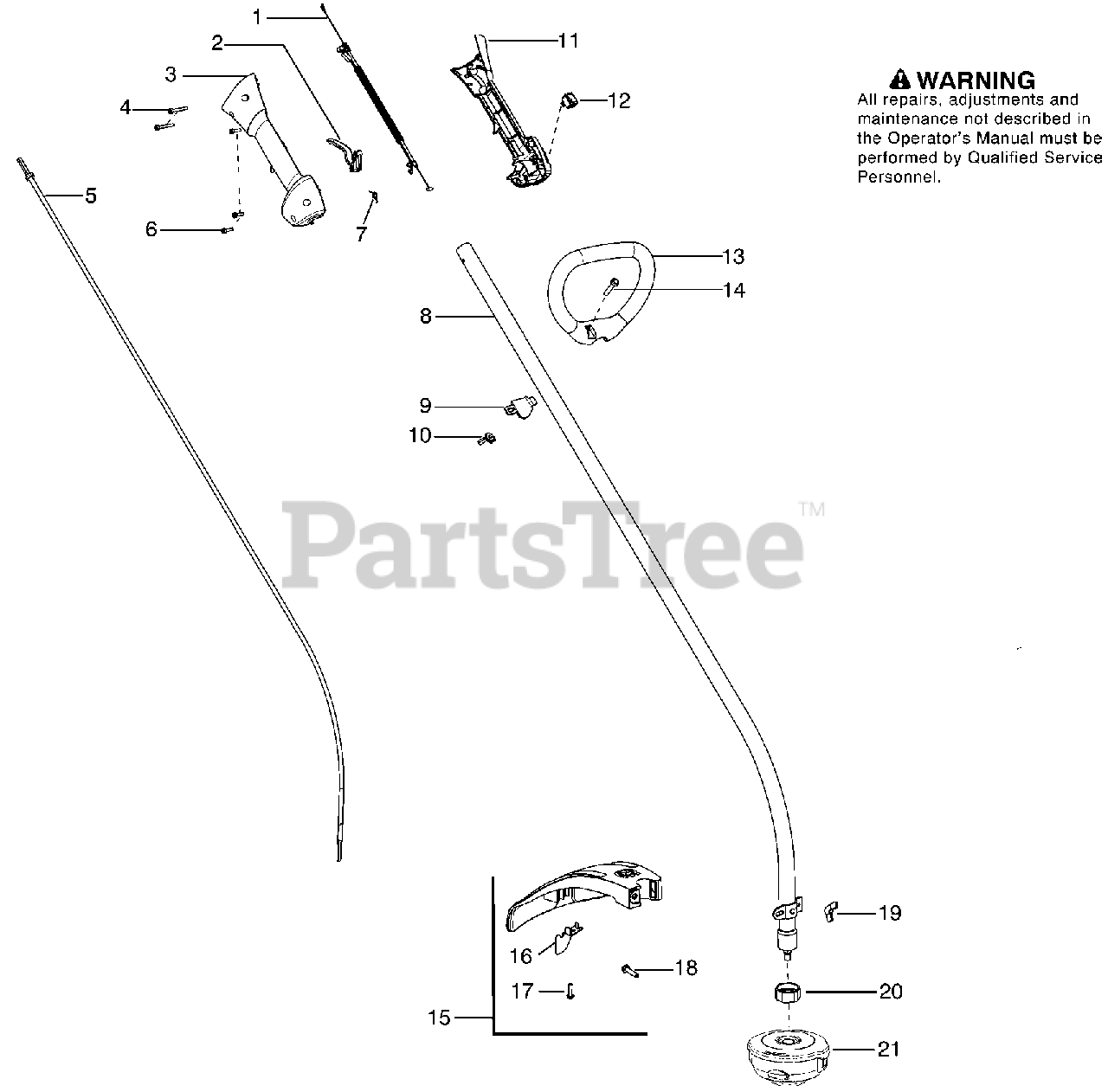

Repairs Parts Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

Note: Refer to the Service Referenoe Indicated for more information. (Loated at the END of the IPL)

$

$

Not available

2

Husqvarna 545066001

TRIGGER THROTTLE

$

$

Not available

3

Husqvarna 545062002

HOUSING-THROTTLE (RH)

$

$

Not available

4

Husqvarna 530016448

SCREW

$3.49

$

In Stock, Qty 9

0

5

Flexshaft

Note: Refer to the Service Referenoe Indicated for more information. (Loated at the END of the IPL)

$

$

Not available

6

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$3.49

$

In Stock, Qty 17

0

7

Husqvarna 530016454

SPRING TRIGGER

$5.99

$

In Stock, Qty 16

0

8

Husqvarna 545180806

DRIVESHAFT KIT

$

$

Not available

9

Husqvarna 530059185

CLAMP ASSIST HANDLE

$4.99

$

In Stock, Qty 6

0

10

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, Qty 7

0

11

Husqvarna 545067001

HSG THROTTLE LH

$

$

Not available

12

Husqvarna 545030601

KIT SWITCH
(Superseded to 545049301)

$11.99

$

In Stock, Qty 5

0

13

Husqvarna 530150076

HANDLE ASSIST

$11.99

$

In Stock, Qty 5

0

14

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, Qty 10

0

15

Husqvarna 545031101

TRIMMER GUARD 128C

Note: (Incl. 16,17,18,19)

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 545081862

KIT - LIMITER - LINE

$6.99

$

In Stock, only 1 left!

0

17

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 6

0

18

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, Qty 10

0

19

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, Qty 7

0

20

Husqvarna 545017404

DUST CUP

Note: New Part Number For This IPL

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537263701

Assy-T25 Cutting Head

Note: New Part Number For This IPL

$

$

Not available

Husqvarna 545003073

DECAL WARN AUST CS

Note: Not Shown

$

$

Not available
