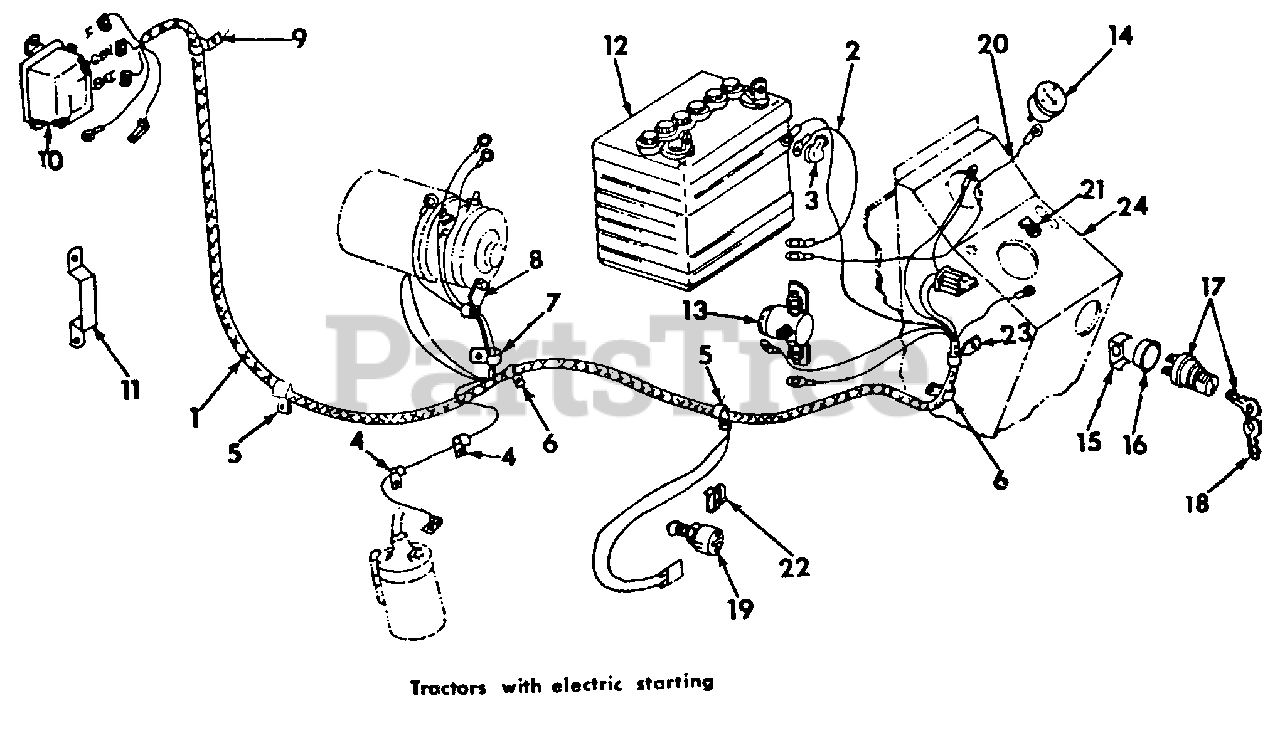

124 - Cub Cadet Garden Tractor Ignition & Starting Parts Diagram

Garden Tractor

Ignition & Starting Parts Diagram

  • Title

1

Harness Assy, Cable

Note: (Not serviced separately, order wiring package IH-59321-C91)

$

$

Not available

2

Cub Cadet IH-376287-R92

Cable Assy, Battery to Magnetic Switch
(Superseded to IH-376287-R93)

$

$

Not available

Cub Cadet 710-0451

Bolt, 5/16-18 X 3/4 C-Z Sq-Nk Crg

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 9

0

Cub Cadet 712-0267

Nut, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-3020

Washer, 17/64 X 5/8 X .049 C-Z

$7.49

$

In Stock, Qty 6

0

3

Cub Cadet IH-364910-R1

Cover, Battery Terminal

$

$

Currently unavailable

4

Cub Cadet 726-3025

Clip, Ignition Cable
(Superseded to 726-0272)

$7.99

$

Usually ships in 3-6 days

0

5

Cub Cadet IH-370383-R1

Clip, Cable Harness

Note: (On RH rear grille housing mounting bolt)

$

$

Not available

Cub Cadet 712-3019

Nut, 7/16 C-Z Hex

$7.49

$

In Stock, Qty 6

0

Screw, 7/16-14 X 5/8 C-Z Hex Hd Cap

Note: Common Hardware, Purchase Locally

$

$

Not available

Cub Cadet 736-0171

Washer, 7/16 C-Z Med Lock

$4.99

$

In Stock, only 4 left!

0

6

Cub Cadet 726-3007

Clip, Cable Harness, Long

$

$

Not available

Cub Cadet 712-3019

Nut, 7/16 C-Z Hex

$7.49

$

In Stock, Qty 6

0

Screw, 7/16-14 X 5/8 C-Z Hex Hd Cap

Note: Common Hardware, Purchase Locally

$

$

Not available

Cub Cadet 736-0171

Washer, 7/16 C-Z Med Lock

$4.99

$

In Stock, only 4 left!

0

7

~NLA

Clip, Generator Cable

$

$

Not available

8

Cub Cadet IH-363660-R1

Clip, Cable Harness

Note: (On motor generator rear mounting bolt, twisted)

$

$

Currently unavailable

9

Cub Cadet 726-3015

Clip, Cable Harness
(Superseded to 726-3008)

Note: (On upper RH hole in grille housing)

$5.49

$

Usually ships in 3-6 days

0

Screw, 1/4-20 X 1/2 Hex Hd Cap

Note: Common Hardware, Purchase Locally

$

$

Not available

Washer, 1/4 Med Lock

Note: Common Hardware, Purchase Locally

$

$

Not available

10

Cub Cadet IH-545130-R92

Regulator, Voltage
(Superseded to IH-545130-R93)

$202.99

$

Usually ships in 3-6 days

0

Screw, 1/4-20 X 1/2 Hex Hd Cap

Note: Common Hardware, Purchase Locally

$

$

Not available

11

~NLA

Bracket, Voltage Regulator

$

$

Not available

Bolt, 1/4-20 X 1/2 Hex Hd Mach

Note: Common Hardware, Purchase Locally

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

12

Cub Cadet IH-PRLU

Battery, Prestolite 9948X, 12 Volt
(Superseded to 925-1707D)

$

$

Not available

13

Cub Cadet IH-1114532

Switch Assy, Magnetic
(Superseded to IH-1114532P)

$156.99

$

In Stock, only 1 left!

0

Nut, 1/4-20 Hex

Note: Common Hardware, Purchase Locally

$

$

Not available

Cub Cadet 736-0222

Washer, 1/4 Ext-Tooth Lock

$6.49

$

In Stock, only 3 left!

0

14

Cub Cadet 725-3023

Indicator Assy, Charge
(Superseded to 925-3141)

$66.99

$

In Stock, only 3 left!

0

15

Cub Cadet IH-402239-R1

Retainer, Ignition Switch

$

$

Not available

16

Cub Cadet IH-402238-R1

Socket, Ignition Switch

$

$

Currently unavailable

17

Cub Cadet IH-60736-C2

Switch Assy, Battery Ignition Switch
(Superseded to IH-60736-C3)

$95.99

$

In Stock, only 4 left!

0

Cub Cadet IH-365502-R1

Nut, Switch Mounting

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-375431-R1

Washer, Switch Mounting

$12.99

$

In Stock, only 1 left!

0

18

Cub Cadet IH-382458-R2

Key, Switch
(Superseded to IH-131313-C2)

$12.99

$

In Stock, only 4 left!

0

19

Cub Cadet 725-3038

Switch Assy, Safety Starting
(Superseded to 925-3038)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-365502-R1

Nut, Switch Mounting

$12.99

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-404424-R1

Cable Assy, Charge Indicator

$

$

Currently unavailable

21

Not used in this application

$

$

Not available

22

Cub Cadet 726-3021

Clip, Safety Starting Switch Cable Snap On

$

$

Not available

23

Cub Cadet IH-363660-R1

Clip, Cable Harness

Note: (On battery & instrument panel front RH mounting bolt below battery tray)

$

$

Currently unavailable

Cub Cadet 710-3000

Screw, 3/8-16 X 3/4 C-Z Hex Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, only 4 left!

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 11

0

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

$4.49

$

In Stock, only 2 left!

0

24

Pedestal Assy

Note: (Refer to hood, grille & frame listing)

$

$

Not available

Cub Cadet IH-59321-C91

Package, Wiring

$

$

Not available

Cub Cadet IH-370383-R1

Clip

$

$

Not available

Cub Cadet IH-404379-R4

Harness Assy
(Superseded to IH-59321-C91)

$

$

Not available
