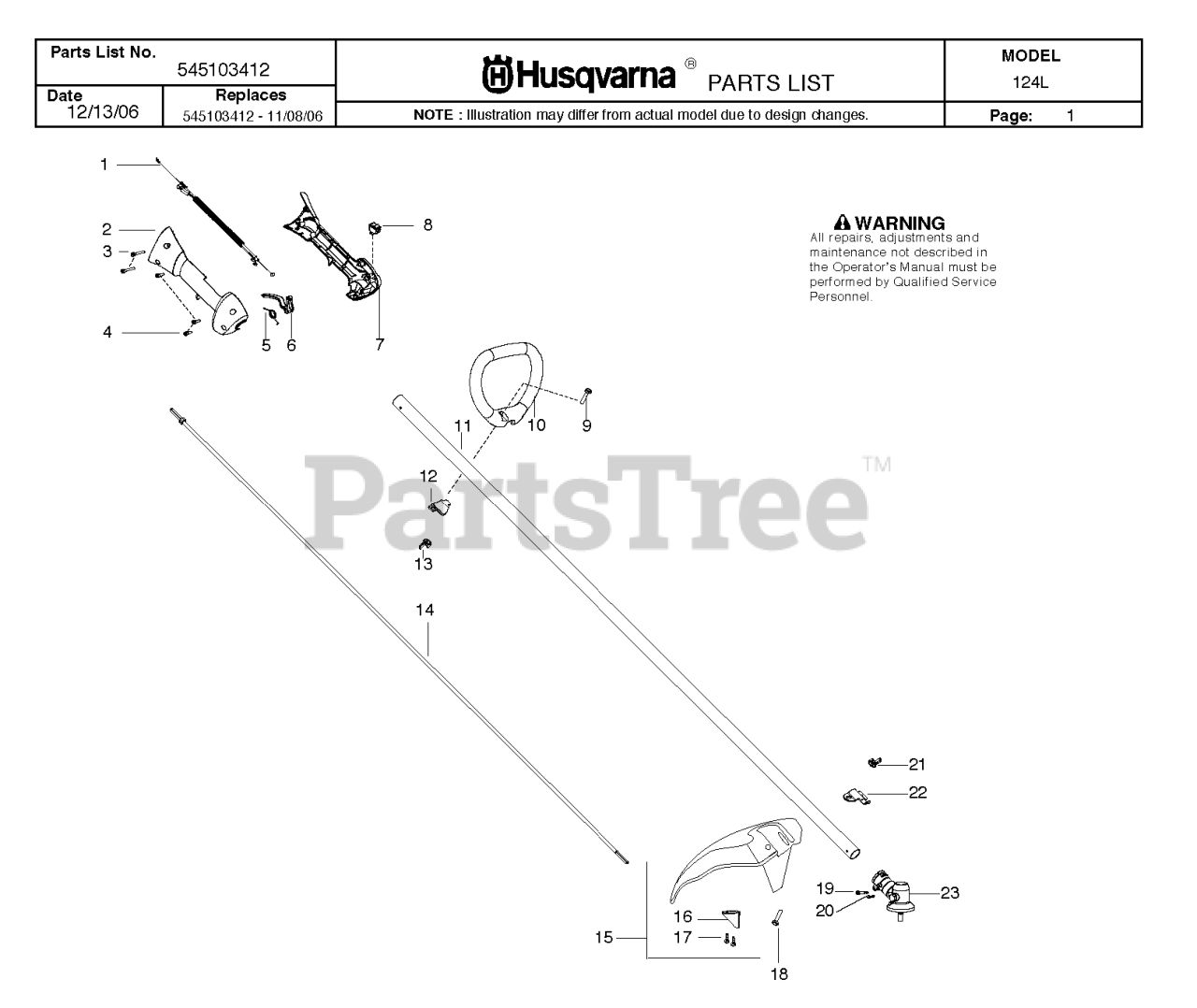

124 L - Husqvarna String Trimmer (2007-04) Handle & Shaft Assembly Parts Diagram

String Trimmer

Handle & Shaft Assembly Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

2

Husqvarna 545062002

HOUSING-THROTTLE (RH)

Note: RH

$

$

Not available

3

Husqvarna 530016448

SCREW

$3.49

$

In Stock, only 2 left!

0

4

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$3.49

$

In Stock, Qty 14

0

5

Husqvarna 530016454

SPRING TRIGGER

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 545066001

TRIGGER THROTTLE

$

$

Not available

7

Husqvarna 545067001

HSG THROTTLE LH

Note: LH

$

$

Not available

8

Husqvarna 545030601

KIT SWITCH
(Superseded to 545049301)

$11.99

$

In Stock, only 4 left!

0

9

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, Qty 11

0

10

Husqvarna 530150076

HANDLE ASSIST

$11.99

$

In Stock, Qty 5

0

11

Husqvarna 545030701

KIT DRIVESHAFT SST
(Superseded to 545081011)

$

$

Not available

12

Husqvarna 530059185

CLAMP ASSIST HANDLE

$4.99

$

In Stock, Qty 7

0

13

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, Qty 8

0

14

Flexshaft 57"

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

15

Husqvarna 545081704

KIT-SHIELD

Note: Incl. 16,17

$

$

Not available

16

Husqvarna 530052285

LINE LIMITER 17"

$

$

Not available

17

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 6

0

18

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, Qty 11

0

19

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$3.49

$

In Stock, only 2 left!

0

20

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, Qty 8

0

22

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.99

$

In Stock, Qty 6

0

23

Husqvarna 530096099

GEARBOX 1

$45.99

$

In Stock, only 4 left!

0
