124 L - Husqvarna String Trimmer (2007-04) Starter & Engine Assembly Parts Diagram

String Trimmer

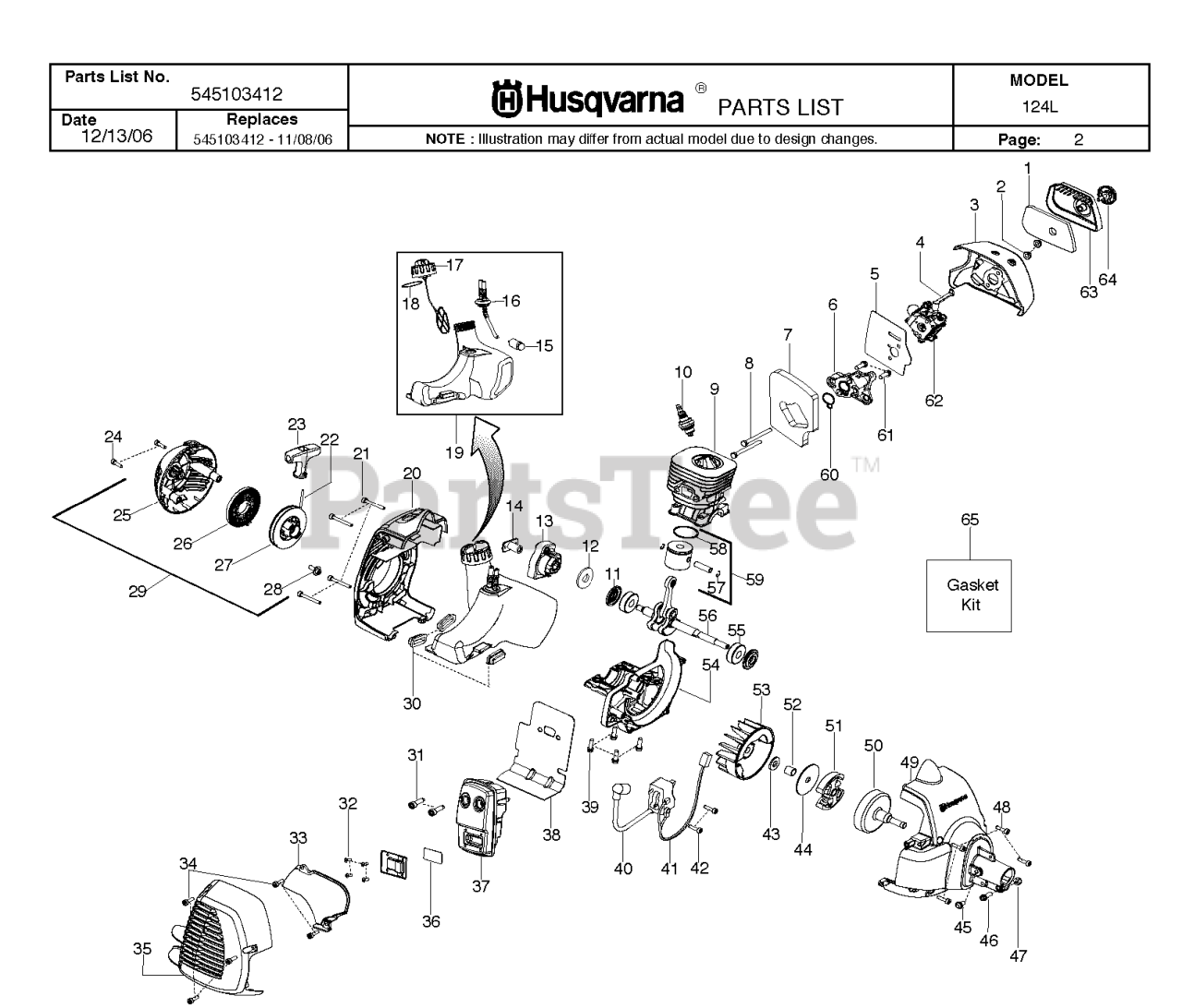

Starter & Engine Assembly Parts Diagram

  • Title

1

Husqvarna 530150253

FILTER AIRBOX

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 530016101

NUT

$4.99

$

In Stock, Qty 10

0

3

Air Box

Note: New Part Number For This IPL; Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

4

Husqvarna 530057844

CHOKE LEVER

$6.99

$

In Stock, Qty 12

0

5

Husqvarna 545050402

KIT GASKET CARB

Note: Incl 7,60

$18.99

$

In Stock, Qty 6

0

6

Husqvarna 530035596

CARB ADAPTOR

$9.49

$

In Stock, Qty 9

0

7

Husqvarna 545030101

KIT GASKET 28CC TRIMMER
(Superseded to 545008084)

Note: foam

$22.99

$

In Stock, Qty 8

0

8

Husqvarna 530016400

BOLT CARB ADAPTOR

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 545001001

CYLINDER
(Superseded to 545003378)

$39.99

$

Usually ships in 3-10 days

0

10

Husqvarna 952030201

Plug-Spark
(Superseded to 503235112)

Note: RCJ-8Y

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 545050403

KIT SEAL CRANKSHAFT

$9.49

$

In Stock, only 4 left!

0

12

Husqvarna 530015828

WASHER FLAT

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 545102302

ASSY-STARTER CUP
(Superseded to 545102303)

$17.99

$

In Stock, Qty 6

0

14

Husqvarna 545099201

COUPLING-STARTER

$7.99

$

In Stock, only 2 left!

0

15

Husqvarna 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 545030201

KIT FUEL LINE
(Superseded to 545081897)

$20.99

$

In Stock, Qty 13

0

17

Husqvarna 530150350

ASSY-CAP W/RETAINER
(Superseded to 578931503)

Note: Incl. 18

$9.49

$

In Stock, Qty 18

0

18

Husqvarna 530019293

O RING NITRILE

$

$

Not available

19

Husqvarna 545105102

ASSY FUEL TANK FL
(Superseded to 545105107)

Note: Incl. 15,16,17,18 New Part Number For This IPL

$

$

Not available

20

Husqvarna 530057851

REAR SHROUD
(Superseded to 576153201)

$13.99

$

In Stock, only 3 left!

0

21

Husqvarna 530016448

SCREW

$3.49

$

In Stock, only 2 left!

0

22

Husqvarna 545029901

KIT ROPE

$7.99

$

In Stock, only 2 left!

0

23

Husqvarna 530150318

STARTER HANDLE GRAY

$5.99

$

In Stock, Qty 11

0

24

Husqvarna 530016426

SCREW M5-0.8X30MM

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 545029603

STARTER HOUSING

$

$

Not available

26

Husqvarna 545029801

%KIT STARTER SPRING
(Superseded to 545008015)

$7.99

$

In Stock, Qty 5

0

27

Husqvarna 545029701

KIT STARTER PULLEY

$17.99

$

In Stock, Qty 9

0

28

Husqvarna 530016468

SCREW

$3.49

$

In Stock, only 4 left!

0

29

Husqvarna 545106301

ASSY-STARTER HSG.

Note: Incl. 22,23,25,26,27,28

$28.99

$

In Stock, Qty 20+

0

30

Husqvarna 530059780

ISOLATOR FUEL TANK

$5.99

$

In Stock, only 1 left!

0

31

Husqvarna 530058982

BOLT MUFFLER

$3.49

$

In Stock, only 3 left!

0

32

Husqvarna 530015496

SCREW-10-16 X 1/2 HI-LO

$

$

Not available

33

Husqvarna 530150440

SHIELD HEAT

$6.99

$

Usually ships in 3-10 days

0

34

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$3.49

$

In Stock, Qty 19

0

35

Husqvarna 545104901

GUARD-MUFFLER
(Superseded to 576215001)

$17.99

$

In Stock, Qty 9

0

36

Husqvarna 545030501

KIT SPARK ARRESTOR SCREEN

Note: Incl. 32

$7.99

$

Usually ships in 3-10 days

0

37

Husqvarna 545057501

ASSY-MUFFLER
(Superseded to 574031502)

$43.99

$

In Stock, only 2 left!

0

38

Husqvarna 530057848

GASKET PAPER METAL

$

$

Not available

39

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.49

$

In Stock, Qty 19

0

40

Husqvarna 530039224

IGNITION MODULE MB45
(Superseded to 545046701)

$62.99

$

In Stock, Qty 18

0

41

Husqvarna 530039227

ASSY MODULE LEAD WIRE

$7.99

$

In Stock, only 2 left!

0

42

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$3.49

$

In Stock, Qty 12

0

43

Husqvarna 530016030

WASHER

$

$

Not available

44

Husqvarna 530094189

WASHER-CLUTCH

$6.99

$

In Stock, Qty 7

0

45

Husqvarna 530016469

SCREW

$4.99

$

In Stock, only 1 left!

0

46

Husqvarna 530016470

SCREW

$

$

Not available

47

Husqvarna 530403094

NUT HEX LOCK 10-24

$

$

Not available

48

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$3.49

$

In Stock, Qty 12

0

49

Husqvarna 545017501

FAN HSG ASSY

$

$

Not available

50

Assy-Clutch Drum

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

51

Husqvarna 545050405

%KIT CLUTCH ASSY
(Superseded to 525472901)

$

$

Not available

52

Husqvarna 530057852

SPACER FLYWHEEL

$11.99

$

In Stock, only 2 left!

0

53

Husqvarna 530039242

FLYWHEEL

$37.99

$

In Stock, only 2 left!

0

54

Husqvarna 545054601

CRANKCASE CASTING

$

$

Not available

55

Husqvarna 545013401

BEARING RADIAL BALL (6201)

$6.99

$

Usually ships in 3-10 days

0

56

Husqvarna 545030001

KIT CRANKSHAFT ASSY

$

$

Not available

57

Husqvarna 530015162

WRIST PIN RET.

$3.49

$

In Stock, only 2 left!

0

58

Husqvarna 530019283

RING PISTON
(Superseded to 575227901)

$6.99

$

In Stock, Qty 17

0

59

Husqvarna 545030301

KIT PISTON 28CC TRIMMER

Note: Incl. 57,58

$62.99

$

Usually ships in 3-10 days

0

60

Husqvarna 545030101

KIT GASKET 28CC TRIMMER
(Superseded to 545008084)

Note: adaptor seal

$22.99

$

In Stock, Qty 8

0

61

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.49

$

In Stock, Qty 19

0

62

Husqvarna 545006060

CARBURETOR

Note: Incl. 4,5

$85.99

$

In Stock, only 2 left!

0

63

Husqvarna 530057846

COVER-AIR BOX

$9.49

$

In Stock, Qty 19

0

64

Husqvarna 530059796

KNOB ASSY AIRBOX COVER

$5.99

$

In Stock, Qty 19

0

65

Husqvarna 545030101

KIT GASKET 28CC TRIMMER
(Superseded to 545008084)

Note: Incl. 5,7,11,18,38,60

$22.99

$

In Stock, Qty 8

0

Husqvarna 530058709

PURGE BULB ZAMA

Note: Not Shown

$7.99

$

In Stock, Qty 20+

0
