124 L - Husqvarna String Trimmer (2009-10) Engine Parts Diagram

String Trimmer

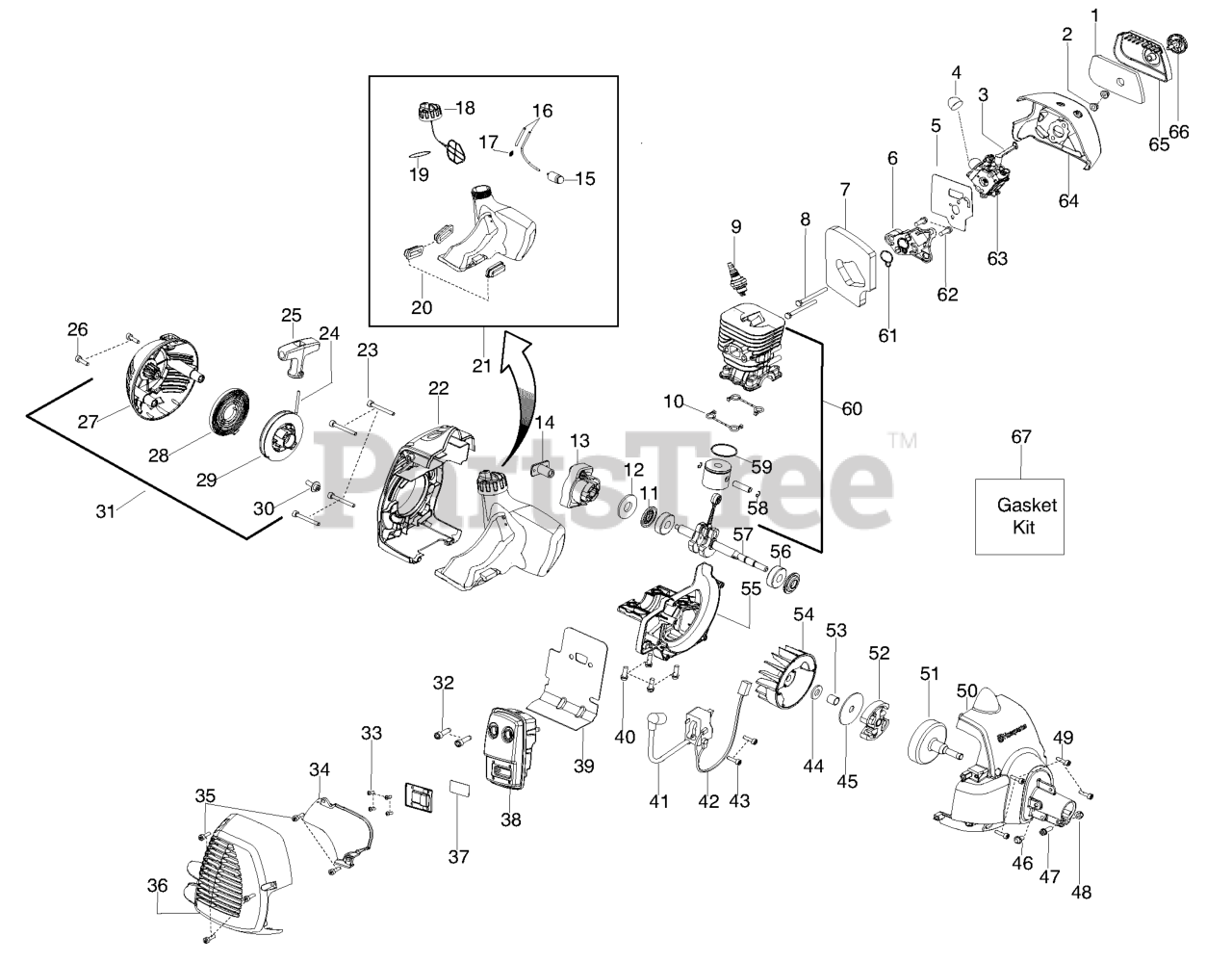

Engine Parts Diagram

  • Title

1

Husqvarna 530150253

FILTER AIRBOX

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 530016101

NUT

$4.99

$

In Stock, Qty 10

0

3

Husqvarna 530057844

CHOKE LEVER

$6.99

$

In Stock, Qty 12

0

4

Husqvarna 530058709

PURGE BULB ZAMA

$7.99

$

In Stock, Qty 20+

0

5

Husqvarna 545008086

KIT GASKET CARB 28CC

Note: (Incl 7,63)

$13.99

$

Usually ships in 3-10 days

0

6

Husqvarna 530035596

CARB ADAPTOR

$9.49

$

In Stock, Qty 9

0

7

Husqvarna 545008084

KIT GASKET 28CC

$22.99

$

In Stock, Qty 8

0

8

Husqvarna 530016400

BOLT CARB ADAPTOR

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 952030249

Plug - Spark (RCJ-6Y)
(Superseded to 530030179)

$4.49

$

In Stock, Qty 20+

0

10

Husqvarna 545008084

KIT GASKET 28CC

$22.99

$

In Stock, Qty 8

0

11

Husqvarna 545008084

KIT GASKET 28CC

$22.99

$

In Stock, Qty 8

0

12

Washer

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

13

Assy - Starter Cup

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

14

Coupling - Starter

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

15

Husqvarna 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 530069599

KIT-LINE(FUEL)

Note: (Incl. 17)

$11.99

$

In Stock, Qty 20+

0

17

Husqvarna 530023877

FUEL LINE FITTING

$5.99

$

In Stock, Qty 20+

0

18

Husqvarna 530150350

ASSY-CAP W/RETAINER
(Superseded to 578931503)

Note: (Incl. 19)

$9.49

$

In Stock, Qty 18

0

19

Husqvarna 545008084

KIT GASKET 28CC

$22.99

$

In Stock, Qty 8

0

20

Husqvarna 530059780

ISOLATOR FUEL TANK

$5.99

$

In Stock, only 1 left!

0

21

Husqvarna 545180870

KIT FUEL TANK HVA

Note: (Incl. 15,16,17,18,19,20)

$45.99

$

In Stock, Qty 6

0

22

Husqvarna 530057851

REAR SHROUD
(Superseded to 576153201)

$13.99

$

In Stock, only 3 left!

0

23

Husqvarna 530016448

SCREW

$3.49

$

In Stock, only 2 left!

0

24

Husqvarna 545029901

KIT ROPE

$7.99

$

In Stock, only 2 left!

0

25

Husqvarna 530150318

STARTER HANDLE GRAY

$5.99

$

In Stock, Qty 11

0

26

Husqvarna 530016426

SCREW M5-0.8X30MM

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 545029603

STARTER HOUSING

$

$

Not available

28

Husqvarna 545029801

%KIT STARTER SPRING
(Superseded to 545008015)

$7.99

$

In Stock, Qty 5

0

29

Husqvarna 545029701

KIT STARTER PULLEY

$17.99

$

In Stock, Qty 9

0

30

Husqvarna 530016468

SCREW

$3.49

$

In Stock, only 4 left!

0

31

Husqvarna 545106301

ASSY-STARTER HSG.

Note: (Incl. 24,25,27,28,29,30)

$28.99

$

In Stock, Qty 20+

0

32

Husqvarna 530058982

BOLT MUFFLER

$3.49

$

In Stock, only 3 left!

0

33

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$3.49

$

In Stock, Qty 14

0

34

Husqvarna 530150440

SHIELD HEAT

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$3.49

$

In Stock, Qty 19

0

36

Husqvarna 545104901

GUARD-MUFFLER
(Superseded to 576215001)

$17.99

$

In Stock, Qty 9

0

37

Husqvarna 545030501

KIT SPARK ARRESTOR SCREEN

Note: (Incl. 33)

$7.99

$

Usually ships in 3-10 days

0

38

Husqvarna 574031501

KIT MUFFLER LE28
(Superseded to 574031502)

Note: (Incl. 32,33,37,39)

$43.99

$

In Stock, only 2 left!

0

39

Husqvarna 545008084

KIT GASKET 28CC

$22.99

$

In Stock, Qty 8

0

40

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.49

$

In Stock, Qty 19

0

41

Husqvarna 530039224

IGNITION MODULE MB45
(Superseded to 545046701)

$62.99

$

In Stock, Qty 18

0

42

Husqvarna 530039227

ASSY MODULE LEAD WIRE

$7.99

$

In Stock, only 2 left!

0

43

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$3.49

$

In Stock, Qty 12

0

44

Husqvarna 530016463

WASHER CLUTCH

$4.99

$

In Stock, only 3 left!

0

45

Husqvarna 530094189

WASHER-CLUTCH

$6.99

$

In Stock, Qty 7

0

46

Husqvarna 530016469

SCREW

$4.99

$

In Stock, only 1 left!

0

47

Husqvarna 530016470

SCREW

$

$

Not available

48

Husqvarna 530015768

LOCKNUT-HEX 10-24

$3.49

$

In Stock, Qty 10

0

49

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$3.49

$

In Stock, Qty 12

0

50

Husqvarna 545017501

FAN HSG ASSY

$

$

Not available

51

Assy - Clutch Drum

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

52

Husqvarna 545050405

%KIT CLUTCH ASSY
(Superseded to 525472901)

$

$

Not available

53

Husqvarna 530057852

SPACER FLYWHEEL

$11.99

$

In Stock, only 2 left!

0

54

Husqvarna 530039242

FLYWHEEL

$37.99

$

In Stock, only 2 left!

0

55

Crankcase - cast

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

56

Husqvarna 545013401

BEARING RADIAL BALL (6201)

$6.99

$

Usually ships in 3-10 days

0

57

Crankshaft - Assy

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL) New Part Number For This IPL

$

$

Not available

58

Husqvarna 530015162

WRIST PIN RET.

$3.49

$

In Stock, only 2 left!

0

59

Husqvarna 530019283

RING PISTON
(Superseded to 575227901)

$6.99

$

In Stock, Qty 17

0

60

Kit - Cyl./Piston

Note: (Incl. 60,61) Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

61

Husqvarna 545008084

KIT GASKET 28CC

$22.99

$

In Stock, Qty 8

0

62

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.49

$

In Stock, Qty 19

0

63

Kit - Carb.

Note: (Incl. 3,4,5) Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

64

Airbox

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

65

Husqvarna 530057846

COVER-AIR BOX

$9.49

$

In Stock, Qty 19

0

66

Husqvarna 530059796

KNOB ASSY AIRBOX COVER

$5.99

$

In Stock, Qty 19

0

67

Husqvarna 545008084

KIT GASKET 28CC

Note: (Incl. 5,7,10,11,19,39,61)

$22.99

$

In Stock, Qty 8

0
