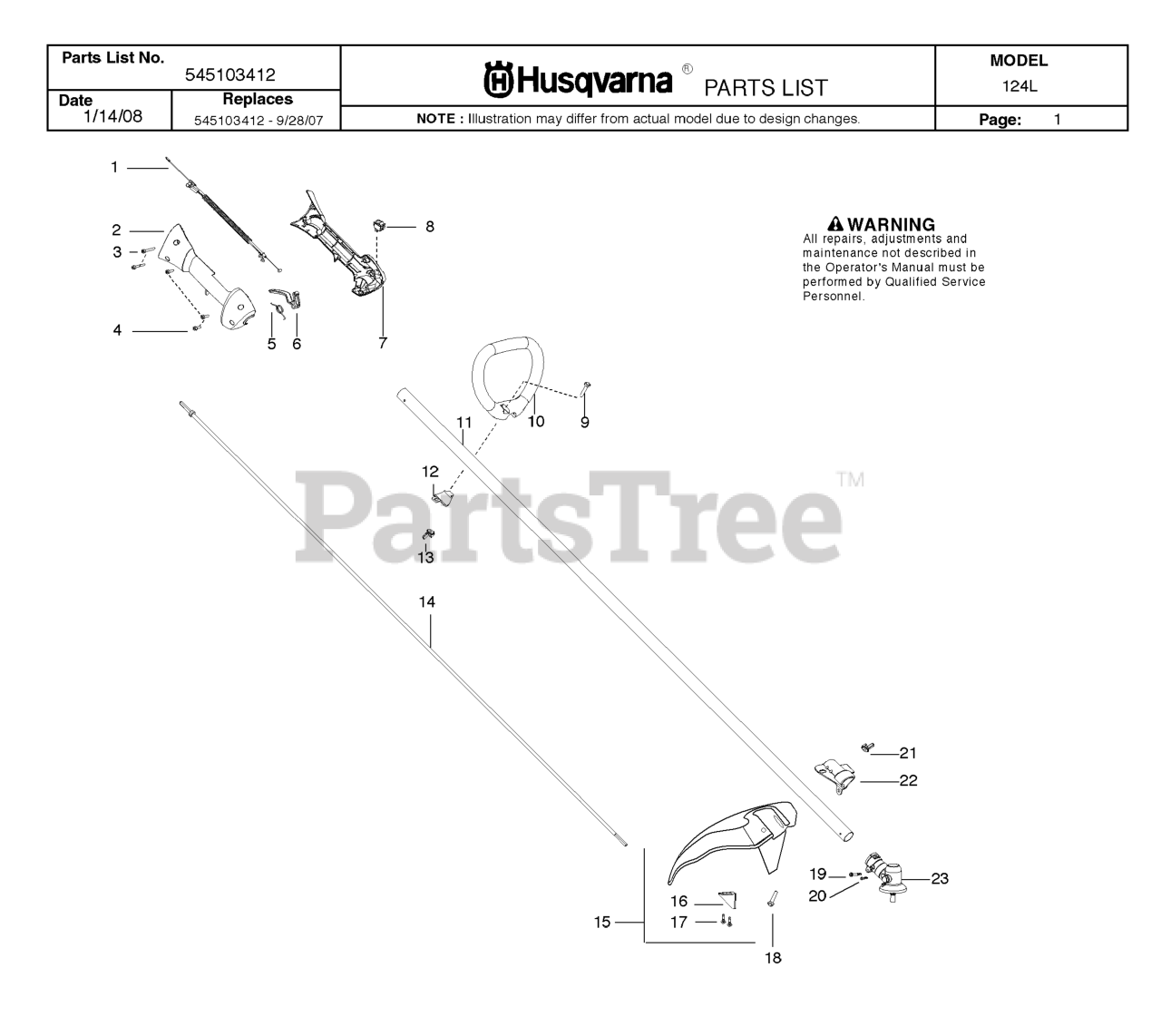

124 L - Husqvarna String Trimmer (SN: 20082200001 - 20102200000) SHAFT & HANDLE Parts Diagram

String Trimmer

SHAFT & HANDLE Parts Diagram

  • Title

16

Husqvarna 530052285

LINE LIMITER 17"

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 545150701

BRACKET

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 545081704

KIT-SHIELD

$27.99

$

Usually ships in 3-10 days

0

7

Husqvarna 545067001

HSG THROTTLE LH

$

$

Not available

17

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 530015820

BOLT, TYPE 2

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 545066001

TRIGGER THROTTLE

$

$

Not available

23

Husqvarna 530096099

GEARBOX 1

$53.99

$

In Stock, only 1 left!

0

4

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, Qty 20+

0

-

Husqvarna 545059101

DECAL WARNING

$

$

Not available

3

Husqvarna 530016448

SCREW

$6.49

$

In Stock, Qty 19

0

2

Husqvarna 545062002

HOUSING-THROTTLE (RH)

$

$

Not available

9

Husqvarna 530015820

BOLT, TYPE 2

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 545081878

KIT DRIVESHAFT SST

$91.99

$

Usually ships in 3-10 days

0

5

Husqvarna 530016454

SPRING TRIGGER

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 530059185

CLAMP ASSIST HANDLE

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 545030601

KIT SWITCH
(Superseded to 545049301)

$9.99

$

In Stock, Qty 17

0

10

Husqvarna 530150076

HANDLE ASSIST

$12.99

$

In Stock, Qty 5

0

19

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0
