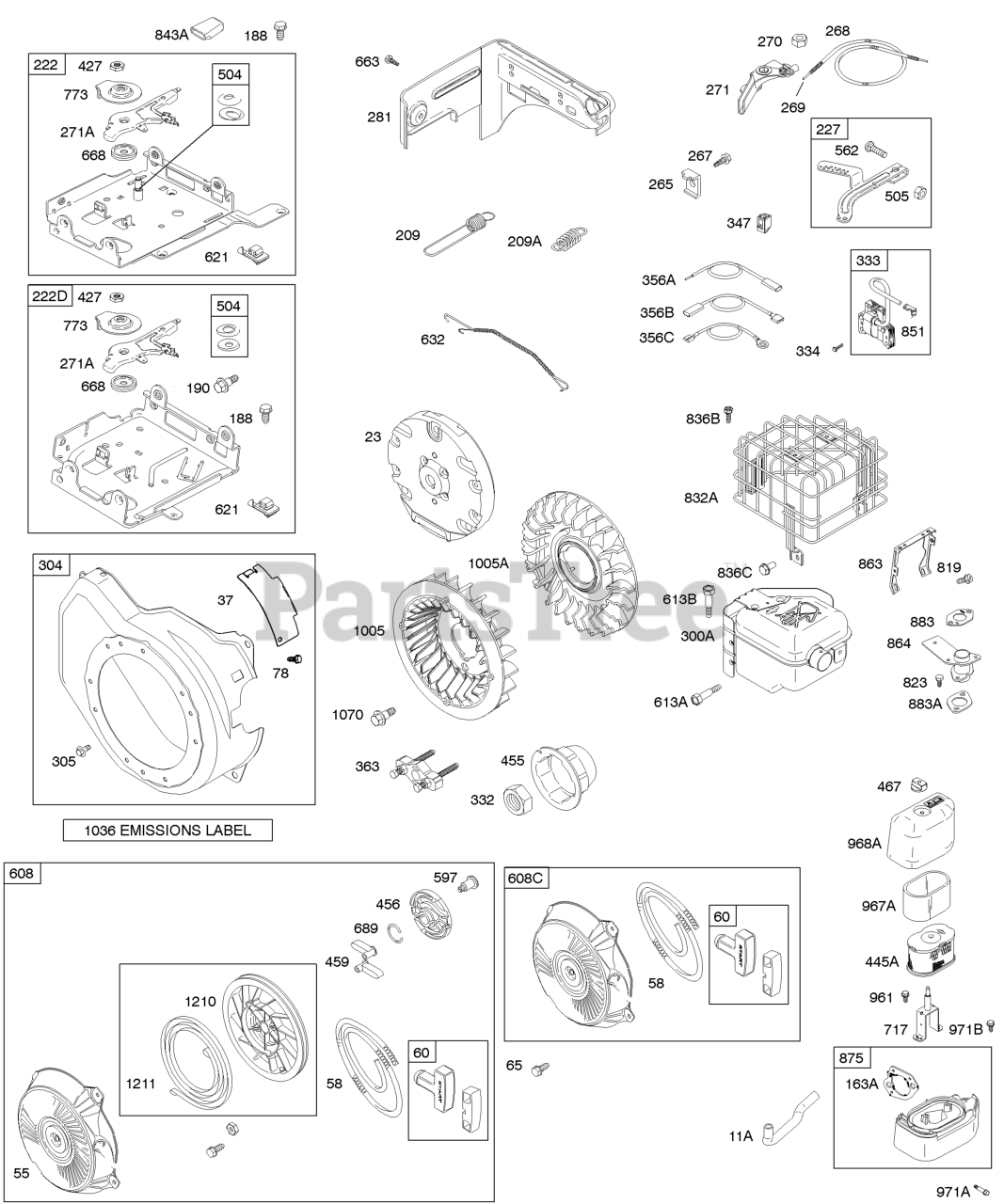

124032-0267-E1 - Briggs & Stratton Horizontal Engine Air Cleaner, Blower Housing, Controls, Exhaust System, Flywheel, Governor Spring, Ignition, Rewind Starter Parts Diagram

Horizontal Engine

Air Cleaner, Blower Housing, Controls, Exhaust System, Flywheel, Governor Spring, Ignition, Rewind Starter Parts Diagram

  • Title

11A

Briggs & Stratton 693647

Tube-Breather

Note: (High Mount Air Cleaner)

$10.99

$

In Stock, only 3 left!

0

23

Briggs & Stratton 699488

Flywheel

$185.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 699661

Guard-Flywheel

$8.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 791848

Housing-Rewind Starter

Note: Used After Code Date 08030200

$45.99

$

In Stock, only 1 left!

0

55

Briggs & Stratton 791848

Housing-Rewind Starter

Note: (Rewind Starter Parts Used With 5MM Diameter Starter Rope) Used Before Code Date 08030300

$45.99

$

In Stock, only 1 left!

0

55

Briggs & Stratton 691422

Housing-Rewind Starter

Note: (Rewind Starter Parts Used With 3MM Diameter Starter Rope) Used Before Code Date 08030300

$45.99

$

In Stock, only 2 left!

0

58

Briggs & Stratton 693389

ROPE, Starter (Cut To Required Length)

Note: Used After Code Date 08030200

$9.49

$

In Stock, Qty 8

0

58

Briggs & Stratton 693389

ROPE, Starter (Cut To Required Length)

Note: (Rewind Starter Parts Used With 3MM Diameter Starter Rope) Used Before Code Date 08030300

$9.49

$

In Stock, Qty 8

0

58

Briggs & Stratton 66574

Rope-Starter

Note: (Rewind Starter Parts Used With 5MM Diameter Starter Rope) Used Before Code Date 08030300

$7.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 8

0

65

Briggs & Stratton 699851

Screw

Note: (Rewind Starter) (Metric)

$3.99

$

In Stock, only 4 left!

0

65

Briggs & Stratton 699228

SCREW

Note: (Rewind Starter) (SAE)

$3.99

$

In Stock, Qty 8

0

78

Briggs & Stratton 699205

Screw

Note: (Flywheel Guard)

$3.99

$

Usually ships in 2-12 days

0

163A

Briggs & Stratton 792870

Gasket-Air Cleaner

Note: (High Mount)

$6.49

$

In Stock, only 4 left!

0

188

Briggs & Stratton 699479

SCREW

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 699220

Screw
(Superseded to 597133)

Note: (Fuel Tank)

$4.99

$

In Stock, Qty 13

0

209

Briggs & Stratton 692571

Spring-Governor

$7.49

$

In Stock, only 4 left!

0

209A

Briggs & Stratton 691278

Spring-Governor

$7.99

$

In Stock, Qty 5

0

222

Briggs & Stratton 699589

Bracket-Control
(Superseded to 793107)

Note: Used Before Code Date 06051500

$45.99

$

Usually ships in 2-12 days

0

222D

Briggs & Stratton 793107

Bracket-Control

Note: Used After Code Date 06051400

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692573

Lever-Governor Control
(Superseded to 794367)

$16.99

$

In Stock, Qty 6

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 699492

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 2 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

271A

Briggs & Stratton 694256

Lever-Control

$19.99

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 793122

Panel-Control

$35.99

$

Usually ships in 2-12 days

0

300A

Briggs & Stratton 699231

Muffler
(Superseded to 797433)

$83.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 699598

Housing-Blower

$90.99

$

In Stock, only 4 left!

0

305

Briggs & Stratton 699481

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, only 4 left!

0

332

Briggs & Stratton 792723

Nut
(Superseded to 591988)

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 695711

Armature-Magneto
(Superseded to 796964)

$55.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 699477

SCREW

Note: (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 697854

SWITCH, Rocker

$13.99

$

In Stock, Qty 8

0

356A

Briggs & Stratton 692390

Wire-Stop

$10.99

$

Usually ships in 2-12 days

0

356B

Briggs & Stratton 692602

Wire-Stop

$11.99

$

Usually ships in 2-12 days

0

356C

Briggs & Stratton 695630

WIRE, Stop

$7.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

427

Briggs & Stratton 694255

Nut

Note: (Control Bracket) (SAE)

$3.49

$

Usually ships in 2-12 days

0

427

Briggs & Stratton 798458

NUT

Note: (Control Bracket) (Metric)

$3.99

$

Usually ships in 2-12 days

0

445A

Briggs & Stratton 697029

Filter-Air Cleaner Cartridge

Note: (High Mount)

$13.99

$

In Stock, Qty 15

0

455

Briggs & Stratton 591302

Cup-Flywheel

Note: Used After Code Date 11123100

$11.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 692591

Cup-Flywheel
(Superseded to 591302)

Note: Used Before Code Date 12010100

$11.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, Qty 20+

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 20+

0

467

Briggs & Stratton 691668

Knob-Air Cleaner Cover

$5.49

$

In Stock, only 3 left!

0

504

Briggs & Stratton 694254

Washer Set-Friction
(Superseded to 695383)

$10.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 10

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 18

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, only 4 left!

0

608

Briggs & Stratton 795930

Starter-Rewind
(Superseded to 591301)

Note: Used After Code Date 08030200 Used Before Code Date 12010100

$56.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 791670

Starter-Rewind
(Superseded to 591301)

Note: (Rewind Starter Parts Used With 5MM Diameter Starter Rope) Used Before Code Date 08030300

$56.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 693394

Starter-Rewind
(Superseded to 591301)

Note: (Rewind Starter Parts Used With 3MM Diameter Starter Rope) Used Before Code Date 08030300

$56.99

$

Usually ships in 2-12 days

0

608C

Briggs & Stratton 591301

Starter-Rewind

Note: Used After Code Date 11123100

$56.99

$

Usually ships in 2-12 days

0

613A

Briggs & Stratton 699481

SCREW

Note: (Muffler)

$3.99

$

In Stock, only 4 left!

0

613B

Briggs & Stratton 697812

Screw

Note: (Muffler) (SAE)

$5.99

$

Usually ships in 2-12 days

0

613B

Briggs & Stratton 799081

Screw

Note: (Muffler) (Metric)

$5.99

$

In Stock, only 2 left!

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

632

Briggs & Stratton 693408

Spring/Link-Mechanical Governor

$8.99

$

In Stock, Qty 10

0

663

Briggs & Stratton 699206

Screw

Note: (Control Panel)

$3.99

$

In Stock, only 4 left!

0

668

Briggs & Stratton 694257

Spacer

$4.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 691855

SPRING, Friction

Note: (Rewind Starter)

$4.49

$

In Stock, Qty 7

0

717

Briggs & Stratton 693462

Bracket-Air Cleaner

$8.49

$

Usually ships in 2-12 days

0

773

Briggs & Stratton 694258

Retainer

Note: (Control Bracket)

$4.49

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 699233

Screw

Note: (Muffler Bracket)

$3.99

$

Usually ships in 2-12 days

0

823

Briggs & Stratton 699209

Screw
(Superseded to 791972)

Note: (Muffler Adapter)

$4.49

$

In Stock, only 2 left!

0

832A

Briggs & Stratton 697818

Guard-Muffler

$53.99

$

Usually ships in 2-12 days

0

836B

Briggs & Stratton 699209

Screw
(Superseded to 791972)

Note: (Muffler Guard)

$4.49

$

In Stock, only 2 left!

0

836C

Briggs & Stratton 699234

Screw

Note: (Muffler Guard)

$3.99

$

In Stock, only 4 left!

0

843A

Briggs & Stratton 695588

SLEEVE, Lever

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

863

Briggs & Stratton 699229

Bracket-Muffler

$24.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 699232

Adapter-Muffler

$37.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 697030

Base-Air Cleaner

Note: (Plastic) (High Mount)

$

$

Not available

883

Briggs & Stratton 691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 10

0

883A

Briggs & Stratton 692237

Gasket-Exhaust

$5.49

$

In Stock, Qty 20+

0

961

Briggs & Stratton 698304

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

Usually ships in 2-12 days

0

967A

Briggs & Stratton 273356S

Filter-Pre Cleaner

Note: (High Mount)

$5.49

$

In Stock, Qty 19

0

968A

Briggs & Stratton 693460

Cover-Air Cleaner

Note: (High Mount)

$24.99

$

In Stock, only 4 left!

0

971A

Briggs & Stratton 690349

Screw

Note: (Air Cleaner Base to Carburetor)

$6.99

$

In Stock, only 2 left!

0

971B

Briggs & Stratton 699629

Screw
(Superseded to 699234)

Note: (Air Cleaner Base to Carburetor)

$3.99

$

In Stock, only 4 left!

0

1005

Briggs & Stratton 692592

Fan-Flywheel
(Superseded to 555778)

$14.99

$

Usually ships in 2-12 days

0

1005A

Briggs & Stratton 794273

Fan-Flywheel

$16.99

$

In Stock, Qty 9

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1070

Briggs & Stratton 699201

Screw

Note: (Flywheel Fan)

$4.49

$

Usually ships in 2-12 days

0

1210

Briggs & Stratton 791849

Pulley/Spring Assembly

Note: (Pulley) Used After Code Date 08030200

$27.99

$

In Stock, only 1 left!

0

1210

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Pulley) (Rewind Starter Parts Used With 3MM Diameter Starter Rope) Used Before Code Date 08030300

$19.99

$

In Stock, only 2 left!

0

1210

Briggs & Stratton 791849

Pulley/Spring Assembly

Note: (Pulley) (Rewind Starter Parts Used With 5MM Diameter Starter Rope) Used Before Code Date 08030300

$27.99

$

In Stock, only 1 left!

0

1211

Briggs & Stratton 791849

Pulley/Spring Assembly

Note: (Spring) (Rewind Starter Parts Used With 5MM Diameter Starter Rope) Used Before Code Date 08030300

$27.99

$

In Stock, only 1 left!

0

1211

Briggs & Stratton 791849

Pulley/Spring Assembly

Note: (Spring) Used After Code Date 08030200

$27.99

$

In Stock, only 1 left!

0

1211

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Spring) (Rewind Starter Parts Used With 3MM Diameter Starter Rope) Used Before Code Date 08030300

$19.99

$

In Stock, only 2 left!

0
