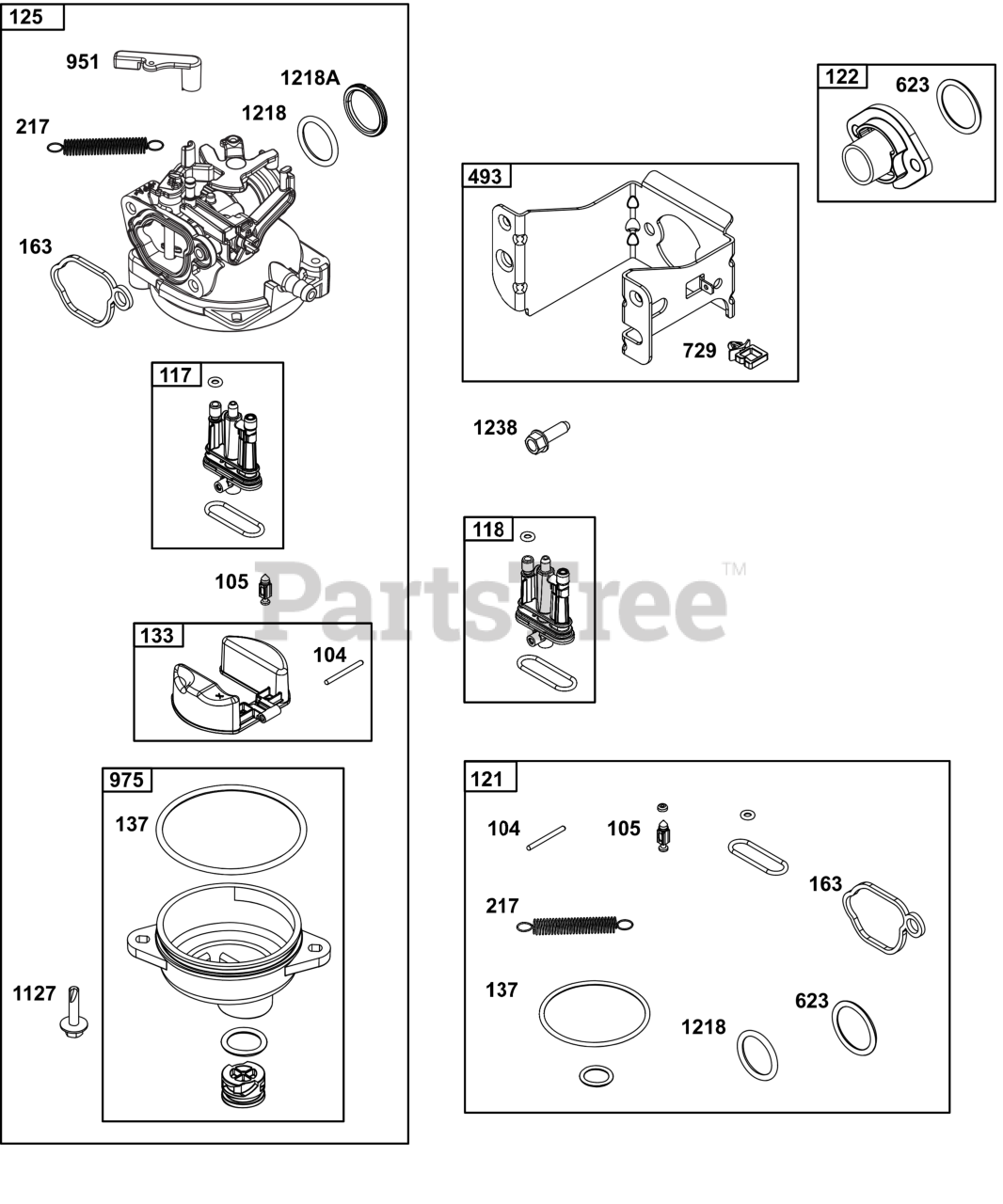

124P02-0004-F1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

Carburetor Group Parts Diagram

  • Title

104

Briggs & Stratton 590558

PIN, Float Hinge

$4.99

$

In Stock, only 2 left!

0

105

Briggs & Stratton 594581

VALVE, Float Needle

$7.49

$

In Stock, only 1 left!

0

117

Briggs & Stratton 597304

JET, Main

Note: (Standard)

$21.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 597305

JET, Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 594636

KIT, Carburetor Overhaul

$35.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 590549

SPACER, Carburetor

$11.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 597306

CARBURETOR

$80.99

$

In Stock, only 2 left!

0

133

Briggs & Stratton 591120

FLOAT, Carburetor

$15.99

$

In Stock, Qty 9

0

137

Briggs & Stratton 594633

GASKET, Float Bowl

$16.99

$

In Stock, Qty 5

0

163

Briggs & Stratton 799580

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 5

0

217

Briggs & Stratton 590740

SPRING, Choke Return

$9.49

$

In Stock, only 4 left!

0

493

Briggs & Stratton 593330

BRACKET, Mounting

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$10.99

$

In Stock, only 1 left!

0

623

Briggs & Stratton 799581

SEAL, O-Ring

Note: (Carburetor Spacer)

$5.49

$

In Stock, only 1 left!

0

729

Briggs & Stratton 594752

CLIP, Wire

$

$

Not available

951

Briggs & Stratton 591104

LEVER, Choke

$11.99

$

In Stock, Qty 5

0

975

Briggs & Stratton 594632

BOWL, Float

$19.99

$

In Stock, only 2 left!

0

1127

Briggs & Stratton 590554

SCREW

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, only 2 left!

0

1218

Briggs & Stratton 270344S

SEAL, O-Ring

Note: (Carburetor)

$3.49

$

In Stock, Qty 20+

0

1218A

Briggs & Stratton 697478

RETAINER, Seal

$5.49

$

In Stock, Qty 5

0

1238

Briggs & Stratton 590562

SCREW

Note: (Carburetor Spacer)

$3.49

$

In Stock, Qty 6
