124P05-0011-F1 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Vertical Engine

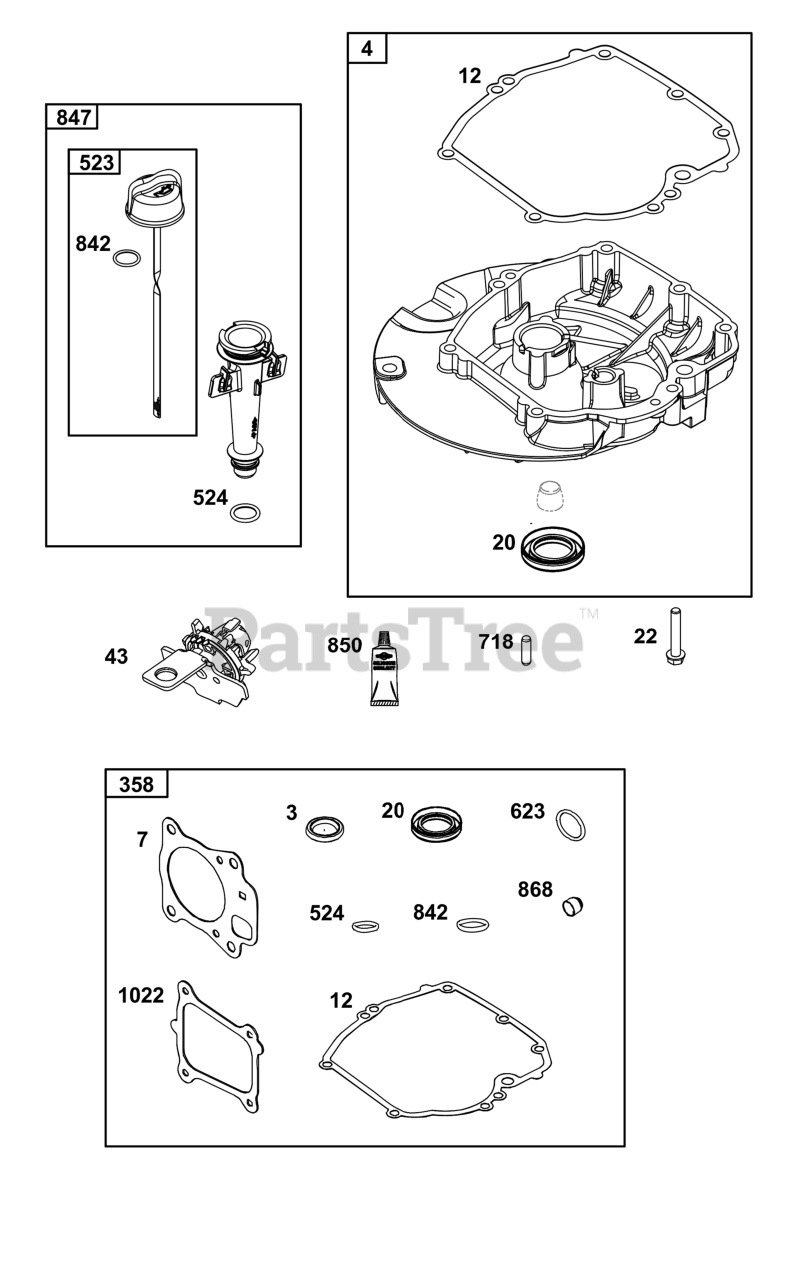

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

4

Briggs & Stratton 84007233

SUMP, Engine

$124.99

$

In Stock, only 2 left!

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 692232

GASKET, Crankcase

$6.49

$

In Stock, Qty 16

0

20

Briggs & Stratton 399781S

SEAL, Oil

Note: (PTO Side)

$8.49

$

In Stock, Qty 13

0

22

Briggs & Stratton 691092

SCREW

Note: (Crankcase Cover/Sump)

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 691092

SCREW

Note: (Crankcase Cover/Sump)

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 593913

SLINGER, Governor/Oil

$28.99

$

In Stock, only 2 left!

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

523

Briggs & Stratton 796503

DIPSTICK

Note: (Black)

$16.99

$

In Stock, Qty 5

0

524

Briggs & Stratton 691876

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

In Stock, Qty 9

0

623

SEAL, O-Ring

Note: (Part information located in Carburetor Group.)

$

$

Not available

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.99

$

In Stock, Qty 7

0

847

Briggs & Stratton 596092

DIPSTICK/TUBE ASSEMBLY

$13.99

$

In Stock, only 1 left!

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, only 4 left!

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available
