125-222-190 - White Outdoor Lawn Boss 22" Walk-Behind Mower (1985) Mower Assembly Parts Diagram

Lawn Boss 22" Walk-Behind Mower

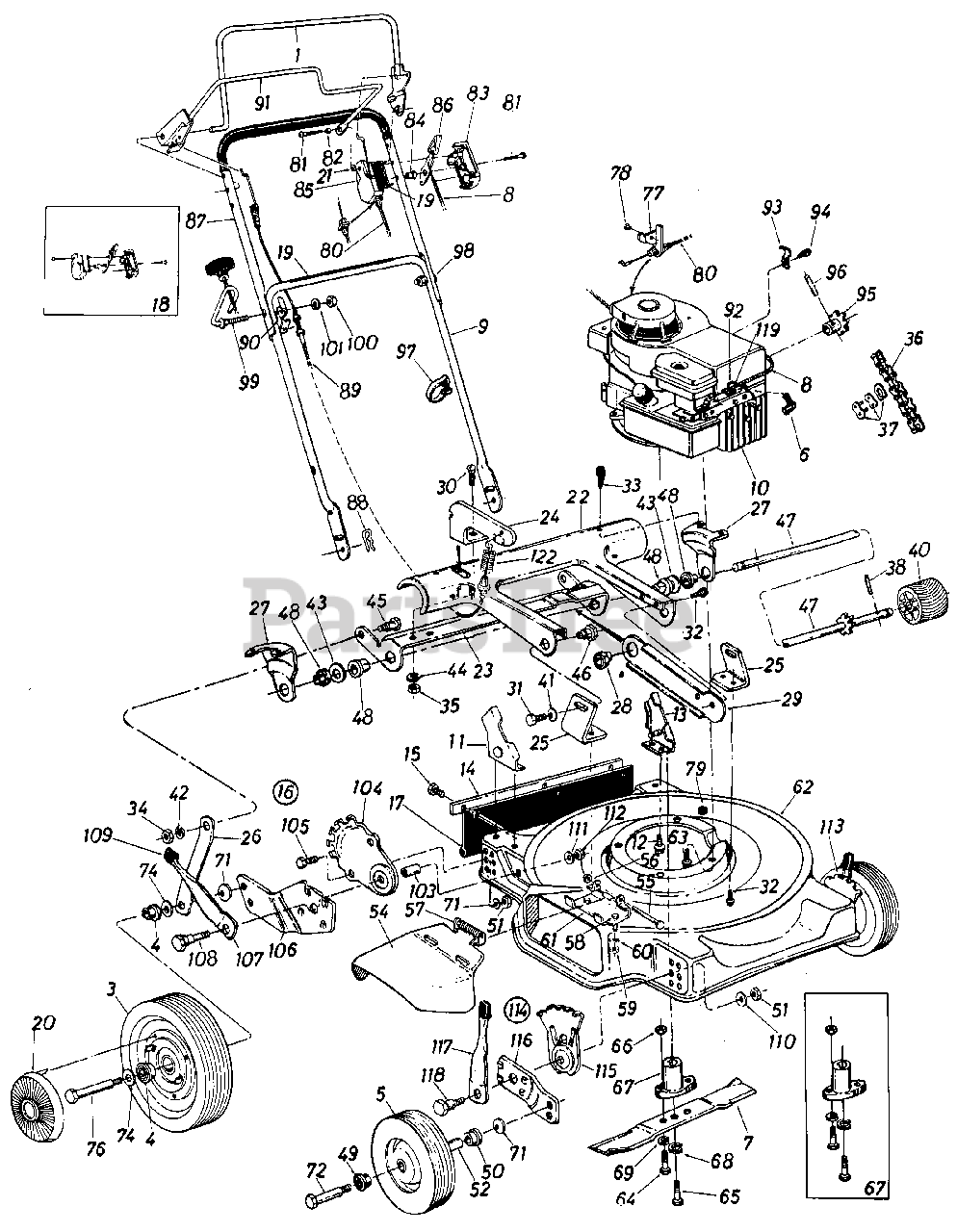

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 14321

Control Handle Ass'y.-L.H.

$

$

Not available

3

White Outdoor 734-1204

Rear Wheel Ass'y. Comp. 9 x 1.75

$

$

Not available

4

White Outdoor 741-0180

Flange Brg. 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

5

White Outdoor 734-0643

Front Wheel Ass'y. Comp.

$

$

Not available

6

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

7

White Outdoor 742-0125

Blade 22"
(Superseded to 942-0125B)

$

$

Not available

8

White Outdoor 746-0474

Throttle Wire 53.0"
(Superseded to 946-0671A)

$13.99

$

In Stock, Qty 9

0

9

White Outdoor 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, Qty 10

0

10

Engine

$

$

Not available

11

White Outdoor 12936

Handle Brkt. Ass'y. R.H.

$

$

Not available

12

White Outdoor 710-0603

Hex Wash. Hd. "B"-Tap Scr. 5/16-18 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

13

White Outdoor 12935

Handle Brkt. Ass'y. L.H.

$

$

Not available

14

White Outdoor 14846

Retainer Strip

$

$

Not available

15

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 14762

R.H. Height Adj. Comp.

$

$

Not available

14763

L.H. Height Adj. Comp.

Note: (Not Shown)

$

$

Not available

17

White Outdoor 731-0575

Rear Flap Ass'y.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

18

White Outdoor 753-0360

Kit Control Housing Comp.

$

$

Not available

19

MTD 777-5168

Control Labels

$

$

Not available

20

White Outdoor 731-0124

Hub Cap

$

$

Not available

21

White Outdoor 736-0931

Flat Wash. .203" I.D. x .406" O.D.

$4.49

$

In Stock, only 1 left!

0

22

16319-483

Pinion Pivot Cover 22"

$

$

Not available

23

White Outdoor 16332

Cam

$

$

Not available

24

16318

Engagement Arm

$

$

Not available

25

White Outdoor 14759

Pivot Brkt.

$

$

Not available

26

White Outdoor 16005

Link

$

$

Not available

27

White Outdoor 14757

Axle Brkt.

$

$

Not available

28

White Outdoor 741-0180

Flanged Ball Brg. .500" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

29

14877

Brg. Support

$

$

Not available

30

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .50" Lg .*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 710-0168

Hex Bolt 3/8-16 x .50" Lg.*

$3.99

$

Usually ships in 3-6 days

0

32

White Outdoor 710-0352

Hex "B"-Tap Scr. 1/4" x .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

33

White Outdoor 710-0776

Hex Wash. Hd. "AB"-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

35

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

36

White Outdoor 713-0311

#48 Chain 1/2" Pitch 49 Links
(Superseded to 913-0311)

$31.99

$

Usually ships in 3-6 days

0

37

White Outdoor 713-0116

#48 Master Link
(Superseded to 913-0122)

Note: (Service Only)

$

$

Not available

38

White Outdoor 715-0246

Spring Pin Spir. 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0246)

$6.49

$

In Stock, Qty 9

0

40

White Outdoor 717-0807

Drive Pinion

$

$

Not available

41

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88" O.D. x .060

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D. x .050

$3.99

$

In Stock, only 2 left!

0

44

White Outdoor 736-0329

L-Wash. 1/4' I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

45

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

46

White Outdoor 738-0529

Shld. Nut .625" Dia. x .162
(Superseded to 938-0529)

$10.99

$

In Stock, Qty 5

0

47

White Outdoor 738-0530

Pinion Shaft w/ 7 Tooth Sprocket

$

$

Not available

48

White Outdoor 741-0484

Flange Brg. .506" I.D.
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

49

White Outdoor 741-0267

Bearing 3/8" I.D.

$

$

Not available

50

White Outdoor 741-0484

Bearing 1/2" I.D.
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

51

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

52

White Outdoor 750-0434

Spacer

$6.49

$

Usually ships in 3-6 days

0

54

White Outdoor 14944

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$67.99

$

In Stock, Qty 12

0

55

White Outdoor 711-0555

Pivot Pin

$

$

Not available

56

White Outdoor 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

57

White Outdoor 732-0253

Torsion Spring

$

$

Not available

58

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

59

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

60

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

61

White Outdoor 11130

Hinge Plate

$

$

Not available

62

14999-483

22" Deck Ass'y.

$

$

Not available

63

White Outdoor 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

64

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$3.99

$

In Stock, Qty 11

0

65

White Outdoor 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.49

$

In Stock, Qty 7

0

66

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

67

753-0348

Blade Adapter Kit

$

$

Not available

68

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$3.99

$

In Stock, Qty 13

0

69

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 736-0105

Bell-Wash..40" I.D.

$3.99

$

In Stock, Qty 20+

0

72

White Outdoor 710-0347

Front Axle Bolt

$4.99

$

In Stock, Qty 20+

0

74

White Outdoor 736-0192

Fl-Wash. .531" I.D. x .93"

$3.99

$

In Stock, only 2 left!

0

76

White Outdoor 738-0144

Rear Axle Bolt
(Superseded to 938-0144)

$

$

Not available

77

White Outdoor 14924

Cable Bracket

$

$

Not available

78

White Outdoor 728-0171

Pop Rivet .156" Dia. x .379

$

$

Not available

79

White Outdoor 731-0564

Plug

$

$

Not available

80

White Outdoor 746-0476

Control Cable 39.0"
(Superseded to 946-0476A)

$

$

Not available

81

White Outdoor 710-0796

Truss Mach. Self-Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, Qty 6

0

82

White Outdoor 750-0649

Spacer.23" I.D.

$

$

Not available

83

White Outdoor 731-0523

Control Panel Half

$

$

Not available

84

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

85

White Outdoor 731-0526

Clutch Panel Half

$

$

Not available

86

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

87

White Outdoor 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

88

White Outdoor 714-0104

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

89

746-0549

Clutch Cable w/ Spring

$

$

Not available

90

White Outdoor 16309

Cable Mtg. Brkt.
(Superseded to 16309A)

$

$

Not available

91

White Outdoor 16391

Drive Control Handle

$

$

Not available

92

White Outdoor 751-0369

Casing Clamp

$

$

Not available

93

White Outdoor 12894

Casing Clamp

$

$

Not available

94

White Outdoor 710-0429

Hex "B"-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

95

White Outdoor 713-0308

10 Tooth Sprocket Ass'y.

$

$

Not available

96

White Outdoor 715-0247

Spiral Pin 3/16" Dia. x 1.00"
(Superseded to 915-0247)

$

$

Not available

97

White Outdoor 726-0192

Cable Tie

$

$

Not available

98

White Outdoor 710-0671

Curved Hd. Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

99

White Outdoor 710-0842

Rope Guide Bolt

$

$

Not available

100

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

101

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

103

White Outdoor 750-0503

Spacer .395" I.D. x .503" O.D. x .562" Lg.
(Superseded to 950-0503)

$

$

Not available

104

White Outdoor 14764

Index Plate
(Superseded to 14764C)

$7.99

$

Usually ships in 3-6 days

0

105

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg.*

$3.99

$

In Stock, Qty 17

0

106

White Outdoor 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

White Outdoor 14766

Pivot Bar L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

107

White Outdoor 732-0417

Spring Lever
(Superseded to 732-0417A)

Note: (282 Only)

$12.99

$

Usually ships in 3-6 days

0

108

White Outdoor 738-0528

Shoulder Bolt .500" Dia. x 3.75" Lg.

$

$

Not available

109

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

110

White Outdoor 736-0356

Bell-Wash. .39 I.D. x 1.4 O.D.
(Superseded to 936-0356)

$

$

Not available

111

White Outdoor 736-0242

Bell-Wash. .336" I.D. x .860 O.D.

$3.99

$

In Stock, Qty 20+

0

112

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

113

White Outdoor 14579

Height Adj. Ass'y. Comp. L.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

114

White Outdoor 14578

Height Adj. Ass'y. Comp. R.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

115

White Outdoor 15261

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

116

White Outdoor 15262

Pivot Bar
(Superseded to 15262B)

$13.99

$

Usually ships in 3-6 days

0

117

White Outdoor 14832

Spring Lever Ass'y. w/ Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

118

White Outdoor 738-0507

Shoulder Bolt .500" Dia. x .375" Lg.
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

119

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg.

$3.99

$

In Stock, Qty 20+

0

122

White Outdoor 732-0306

Compression Spring .47" O.D. x 1.93" Lg.
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

8222-190-5

Hardware Pack

$

$

Not available
