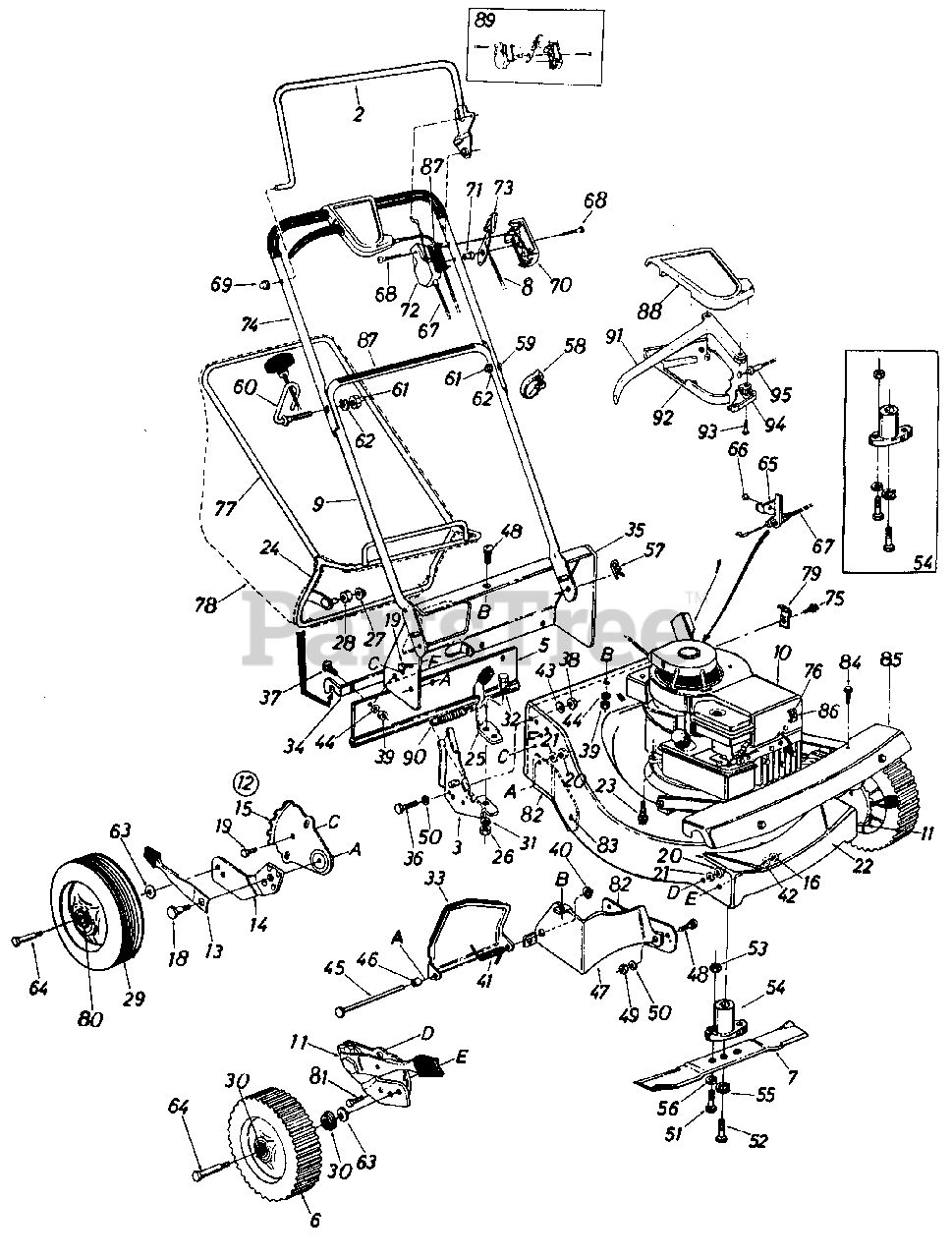

125-320-051 - Lawnflite Walk-Behind Mower (1985) (Winn's) > Parts Diagrams (4) > Parts03

  • Title
12297

1

Handle Brkt. Ass'y.-L.H.

Part# 12297

OEM Warranty Repair Part for MTD

Not available

14321

2

Control Handle Ass'y.-L.H.

Part# 14321

OEM Warranty Repair Part for MTD

Not available

14592

3

Handle Brkt. Ass'y.-R.H.

Part# 14592

OEM Warranty Repair Part for MTD

Currently unavailable

731-0665

5

Rear Flap Ass'y.

Part# 731-0665

OEM Warranty Repair Part for MTD

Not available

734-1026

6

Wheel Ass'y. Comp. 8 x 1.75

Part# 734-1026

OEM Warranty Repair Part for MTD

Not available

742-0124

7

21" Blade

Part# 742-0124

OEM Warranty Repair Part for MTD

Not available

746-0472

8

Throttle Wire-58.0"

Part# 746-0472 (Superseded to 946-0674A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.56

749-0505

9

Lower Handle

Part# 749-0505 (Superseded to 749-0907B)

OEM Warranty Repair Part for MTD

Not available

10

Engine

Part#

Not available

16423

11

L.H. Height Adj. Ass'y.

Part# 16423

Note: (Front)

OEM Warranty Repair Part for MTD

Currently unavailable

16424

R.H. Height Adj. Ass'y.

Part# 16424

Note: (Front)

OEM Warranty Repair Part for MTD

Currently unavailable

16423

12

R.H. Height Adj. Ass'y.

Part# 16423

Note: (Rear)

OEM Warranty Repair Part for MTD

Currently unavailable

16424

L.H. Height Adj. Ass'y.

Part# 16424

Note: (Rear)

OEM Warranty Repair Part for MTD

Currently unavailable

732-0417

13

Spring Lever

Part# 732-0417 (Superseded to 732-0417A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.73

16421

14

Pivot Bar-L.H.

Part# 16421

OEM Warranty Repair Part for MTD

Currently unavailable

16422

Pivot Bar-R.H.

Part# 16422

OEM Warranty Repair Part for MTD

Currently unavailable

14764

15

Index Plate

Part# 14764 (Superseded to 14764C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.90

712-0375

16

Hex Cent. L-Nut 3/8-16 Thd.

Part# 712-0375

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0255

Bell-Wash. .515 I.D. x 1.14" O.D. x .040

Part# 736-0255 (Superseded to 936-0255)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

738-0507

18

Shld. Bolt .500" Dia. x .430

Part# 738-0507 (Superseded to 938-0507B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.86

710-0892

19

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.

Part# 710-0892 (Superseded to 910-0892)

OEM Warranty Repair Part for MTD

Not available

712-0798

20

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0356

21

Bell-Wash. .39" I.D. x 1.38" O.D.

Part# 736-0356 (Superseded to 936-0356)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.66

16245

22

21" Deck Ass'y.

Part# 16245

OEM Warranty Repair Part for MTD

Currently unavailable

710-0654

23

Self-Tap Screw 3/8-16 x 1.0"

Part# 710-0654 (Superseded to 710-0654A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

14582

24

Grass Catcher Lower Frame Ass'y.

Part# 14582

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available FRAME-LOWE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

14845

25

Grass Catcher Lock Lever

Part# 14845

OEM Warranty Repair Part for MTD

Not available

712-0267

26

Hex Nut 5/16-18 Thd.*

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

726-0100

27

Push Nut 3/8" Rod

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

731-0430

28

Plastic Roller

Part# 731-0430

OEM Warranty Repair Part for MTD

Not available

734-0874

29

Wheel Ass'y. Comp. 8 x 1.75

Part# 734-0874

OEM Warranty Repair Part for MTD

Not available

741-0180

30

Ball Bearing

Part# 741-0180 (Superseded to 941-0180)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.94

736-0119

31

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

738-0155

32

Shld. Bolt .437" Dia. x .162

Part# 738-0155 (Superseded to 938-0155)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

13407

33

Chute Door

Part# 13407

OEM Warranty Repair Part for MTD

Not available

14012

34

Grass Catcher Hitch Brkt.

Part# 14012

OEM Warranty Repair Part for MTD

Not available

16258

35

Rear Discharge Deck Section

Part# 16258

OEM Warranty Repair Part for MTD

Not available

710-0412

36

Hex Bolt 1/4-28 x .75" Lg.

Part# 710-0412

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.68

710-0703

37

Carr. Bolt 1/4-20 x .75" Lg.

Part# 710-0703

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.73

712-0138

38

Hex Nut 1/4-28 Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.44

712-0271

39

Sems Nut 1/4-20 Thd.

Part# 712-0271

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

726-0106

40

Push Nut 1/4" Rod

Part# 726-0106 (Superseded to 926-0106)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.50

732-0346

41

Torsion Spring

Part# 732-0346

OEM Warranty Repair Part for MTD

Not available

736-0169

42

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47

736-0270

43

Bell-Wash. 1/4" I.D. x .88" O.D.

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.66

736-0211

44

Fl-Wash. .285" I.D. x 1.25" O.D.

Part# 736-0211 (Superseded to 936-0211)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.44

738-0386

45

Hinge Pin .250" Dia. x 7.25"

Part# 738-0386

OEM Warranty Repair Part for MTD

Not available

750-0218

46

Spacer .262" I.D. x .31" O.D. x .58

Part# 750-0218 (Superseded to 950-0218)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

16259

47

Rear Baffle

Part# 16259

OEM Warranty Repair Part for MTD

Not available

710-0167

48

Carriage Bolt 1/4-20 x .50"

Part# 710-0167

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.50

712-0287

49

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0329

50

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-0888

51

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

Part# 710-0888

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-0331

52

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

Part# 710-0331

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

712-0123

53

Hex Nut 5/16-24 Thd.

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

753-0348

54

Blade Adapter Kit

Part# 753-0348

OEM Warranty Repair Part for MTD

Currently unavailable

736-0217

55

L-Wash. 3/8" I.D.-H.D.

Part# 736-0217 (Superseded to 936-0217)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0119

56

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

714-0104

57

Intern. Cot. Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

726-0192

58

Cable Tie

Part# 726-0192

OEM Warranty Repair Part for MTD

Not available

710-0671

59

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

Part# 710-0671

OEM Warranty Repair Part for MTD

Not available

710-0842

60

Rope Guide Bolt

Part# 710-0842

OEM Warranty Repair Part for MTD

Not available

712-0267

61

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

736-0119

62

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0105

63

Bell-Wash. .400" I.D. x .88" O.D. x .060

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

738-0102

64

Axle Bolt

Part# 738-0102 (Superseded to 938-0102)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.78

14924

65

Cable Bracket

Part# 14924

OEM Warranty Repair Part for MTD

Not available

728-0171

66

Pop Rivet .156" Dia. x .379

Part# 728-0171

OEM Warranty Repair Part for MTD

Not available

746-0477

67

Brake Control Cable-43.0"

Part# 746-0477 (Superseded to 946-0477A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.01

710-0796

68

Truss Mach. Hd. "B" Tap Scr. #12 x 1.50" Lg.

Part# 710-0796

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.52

726-0135

69

Cap Speed Nut 5/16" Rod

Part# 726-0135

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

731-0523

70

Control Panel Half

Part# 731-0523

OEM Warranty Repair Part for MTD

Not available

731-0524

71

Control Disc Pin

Part# 731-0524

OEM Warranty Repair Part for MTD

Not available

731-0526

72

Control Panel Half

Part# 731-0526

OEM Warranty Repair Part for MTD

Not available

731-0528

73

Throttle Control Lever

Part# 731-0528 (Superseded to 931-0972)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.50

749-0436

74

Upper Handle

Part# 749-0436 (Superseded to 749-0438D-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.94

710-0429

75

Hex AB-Tap Scr. #10 x .38"

Part# 710-0429 (Superseded to 910-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.37

751-0369

76

Casing Clamp

Part# 751-0369

OEM Warranty Repair Part for MTD

Not available

749-0278

77

Grass Catcher Upper Frame

Part# 749-0278

OEM Warranty Repair Part for MTD

Not available

764-0171

78

Grass Bag

Part# 764-0171 (Superseded to 964-0171B)

OEM Warranty Repair Part for MTD

Not available

12894

79

Casing Clamp

Part# 12894

OEM Warranty Repair Part for MTD

Not available

741-0262

80

Fortiflex Bearing

Part# 741-0262

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.37

710-0216

81

Hex Bolt 3/8-16 x .75" Lg.

Part# 710-0216

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.88

16366

82

Side Baffle

Part# 16366

OEM Warranty Repair Part for MTD

Currently unavailable

728-0141

83

Rivet

Part# 728-0141

OEM Warranty Repair Part for MTD

Not available

710-0599

84

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

12982

85

Drive Cover

Part# 12982

OEM Warranty Repair Part for MTD

Not available

710-0227

86

Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg.

Part# 710-0227

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

777

87

Instruction Labels

Part# 777

OEM Warranty Repair Part for MTD

Currently unavailable

731-0617

88

Control CoverTop Half

Part# 731-0617 (Superseded to 731-0617A)

OEM Warranty Repair Part for MTD

Not available

753-0360

89

Kit-Control Housing Complete

Part# 753-0360

OEM Warranty Repair Part for MTD

Not available

732-0357

90

Extension Spring

Part# 732-0357 (Superseded to 932-0357A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

731-0620

91

Control Lever

Part# 731-0620 (Superseded to 731-0620A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.07

731-0618

92

Control Cover-Bottom Half

Part# 731-0618 (Superseded to 753-0833)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $34.76

710-0841

93

Fl-"C" Sunk Hd. Scr. #10 x .75" Lg.

Part# 710-0841

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.91

731-0619

94

Cable Mounting Cap

Part# 731-0619

OEM Warranty Repair Part for MTD

Not available

746-0465

95

Self-Propelled Cable

Part# 746-0465

OEM Warranty Repair Part for MTD

Not available
