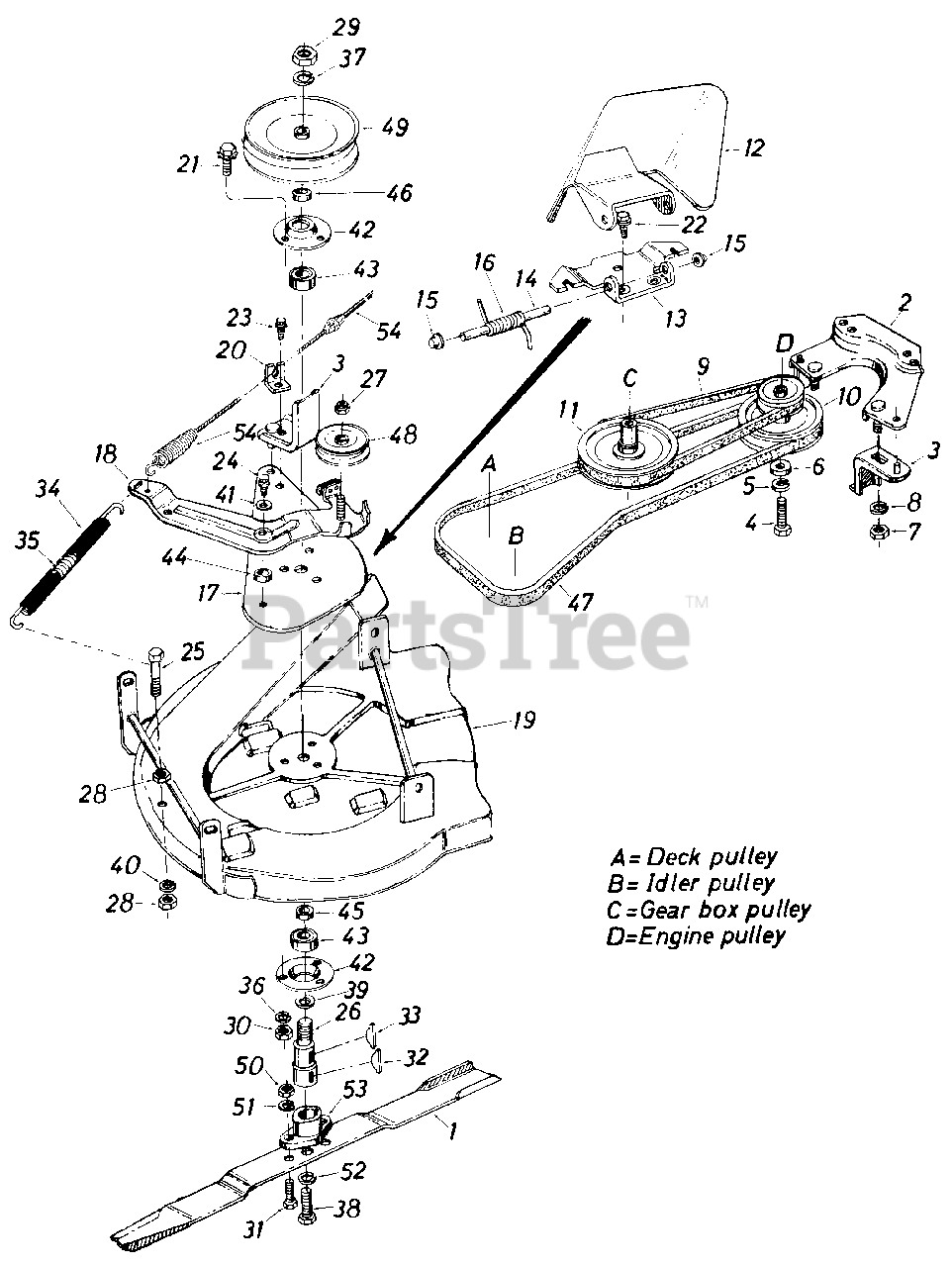

125-349-101 - Grass Handler Walk-Behind Mower (1985) (J.C. Penney) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title
1

MTD Part# 742-0147

26" Blade
(Superseded to 942-0147)
Usually ships in 5 to 10 days

$

$13.73

0

2

MTD Part# 10423

Belt Guard Cup Ass'y.
Usually ships same day

Not available

$

$

3

MTD Part# 10426

Belt Keeper Ass'y.
Usually ships same day

Not available

$

$

4

MTD Part# 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)
Usually ships in 1 day

$

$3.19

0

5

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

6

MTD Part# 736-0235

Fl-Wash. .406" I.D. x 1.25" O.D.
(Superseded to 736-0247)
Usually ships in 1 day

$

$7.00

0

7

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

8

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

9

MTD Part# 754-0143

3V-Belt 28" Lg.
Usually ships same day

Not available

$

$

10

MTD Part# 756-0154

Double Pulley
Usually ships same day

Not available

$

$

11

MTD Part# 756-0155

3/8" V-Pulley .502" I.D. x 6.5" O.D.
Usually ships same day

Not available

$

$

12

MTD Part# 11634

Chute Cover Ass'y. Comp.
Usually ships same day

Not available

$

$

13

MTD Part# 11396

Adapter Plate
Usually ships same day

Not available

$

$

14

MTD Part# 711-0571

Hinge Pin
Usually ships same day

Not available

$

$

15

MTD Part# 726-0106

Cap Speed Nut 1/4" Rod
(Superseded to 926-0106)
Usually ships same day

Not available

$

$

16

MTD Part# 732-0261

Torsion Spring
Usually ships same day

Not available

$

$

17

MTD Part# 12453

Deck Belt Guard Plate
Usually ships same day

Currently unavailable

$

$

18

MTD Part# 12469

Deck Idler Brkt. Ass'y.
Usually ships same day

Not available

$

$

19

MTD Part# 15325

26" Deck Ass'y.
Usually ships same day

Currently unavailable

$

$

20

MTD Part# 15343

Cable Support Brkt.
Usually ships same day

Currently unavailable

$

$

21

MTD Part# 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.
Usually ships same day

Not available

$

$

22

MTD Part# 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.
Usually ships in 1 day

$

$3.06

0

23

MTD Part# 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg.
Usually ships in 1 day

$

$3.34

0

24

MTD Part# 710-0643

Hex L-Bolt 5/16-18 x 1.00" Lg.
Usually ships in 1 day

$

$4.81

0

25

MTD Part# 710-0698

Hex Bolt 1/4-28 x 1.50" Lg.
Usually ships same day

Not available

$

$

26

MTD Part# 711-0405

Blade Spindle
Usually ships same day

Not available

$

$

27

MTD Part# 712-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 912-0116)
Usually ships same day

Not available

$

$

28

MTD Part# 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)
Usually ships in 1 day

$

$2.02

0

29

MTD Part# 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)
Usually ships in 5 to 10 days

$

$7.63

0

30

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

31

MTD Part# 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 8)
Usually ships in 1 day

$

$3.06

0

32

MTD Part# 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.
(Superseded to 914-0365)
Usually ships same day

Not available

$

$

33

MTD Part# 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)
Usually ships in 5 to 10 days

$

$5.42

0

34

MTD Part# 731-0675

Plastic Tube .52" I.D. x 7.0" Lg.
Usually ships same day

Currently unavailable

$

$

35

MTD Part# 732-0448

Ext. Spring .50" O.D. x 5.2" Lg.
Usually ships same day

Not available

$

$

36

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

37

MTD Part# 736-0158

L-Wash. 5/8" I.D.
(Superseded to 936-0158)
Usually ships in 1 day

$

$3.11

0

38

MTD Part# 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)
Usually ships in 1 day

$

$5.15

0

39

MTD Part# 13703

Bearing Shield
Usually ships same day

Not available

$

$

40

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

41

MTD Part# 736-0343

Fl-Wash. .330" I.D. x 1.25" O.D. x .120
Usually ships in 1 day

$

$3.11

0

42

MTD Part# 08253

Bearing Housing
(Superseded to 08253B)
Usually ships in 1 day

$

$14.27

0

43

MTD Part# 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)
Usually ships in 1 day

$

$18.12

0

44

MTD Part# 750-0258

Spacer.315" I.D. x .75" O.D. x.37" Lg.
Usually ships in 1 day

$

$8.02

0

45

MTD Part# 750-0142

Spacer.836" I.D. x 1.01" O.D. x .320" Lg.
(Superseded to 950-0142)
Usually ships in 5 to 10 days

$

$7.63

0

46

MTD Part# 748-0168

Spacer.630" I.D. x 1.135" O.D. x .195" Lg.
Usually ships same day

Currently unavailable

$

$

47

MTD Part# 754-0267

"V"-Belt-A Sec. x 59.0" Lg.
(Superseded to 954-0267)
Usually ships in 1 day

$

$47.37

0

48

MTD Part# 756-0116

"V"-Idler 3.06" O.D.
(Superseded to 756-04209)
Usually ships in 1 day

$

$16.65

0

49

MTD Part# 756-0143

5/8" V-Pulley .625" I.D. x 7.0" O.D.
Usually ships same day

Not available

$

$

50

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

51

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

52

MTD Part# 736-0217

L-Wash. 3/8" I.D.-Heavy Duty
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

53

MTD Part# 10769

Blade Adapter Kit
Usually ships same day

Not available

$

$

54

MTD Part# 746-0488

Clutch Cable-56.0"
Usually ships same day

Not available

$

$
