125-574-190 - White Outdoor Lawn Boss 26" Walk-Behind Mower (1985)

Lawn Boss 26" Walk-Behind Mower

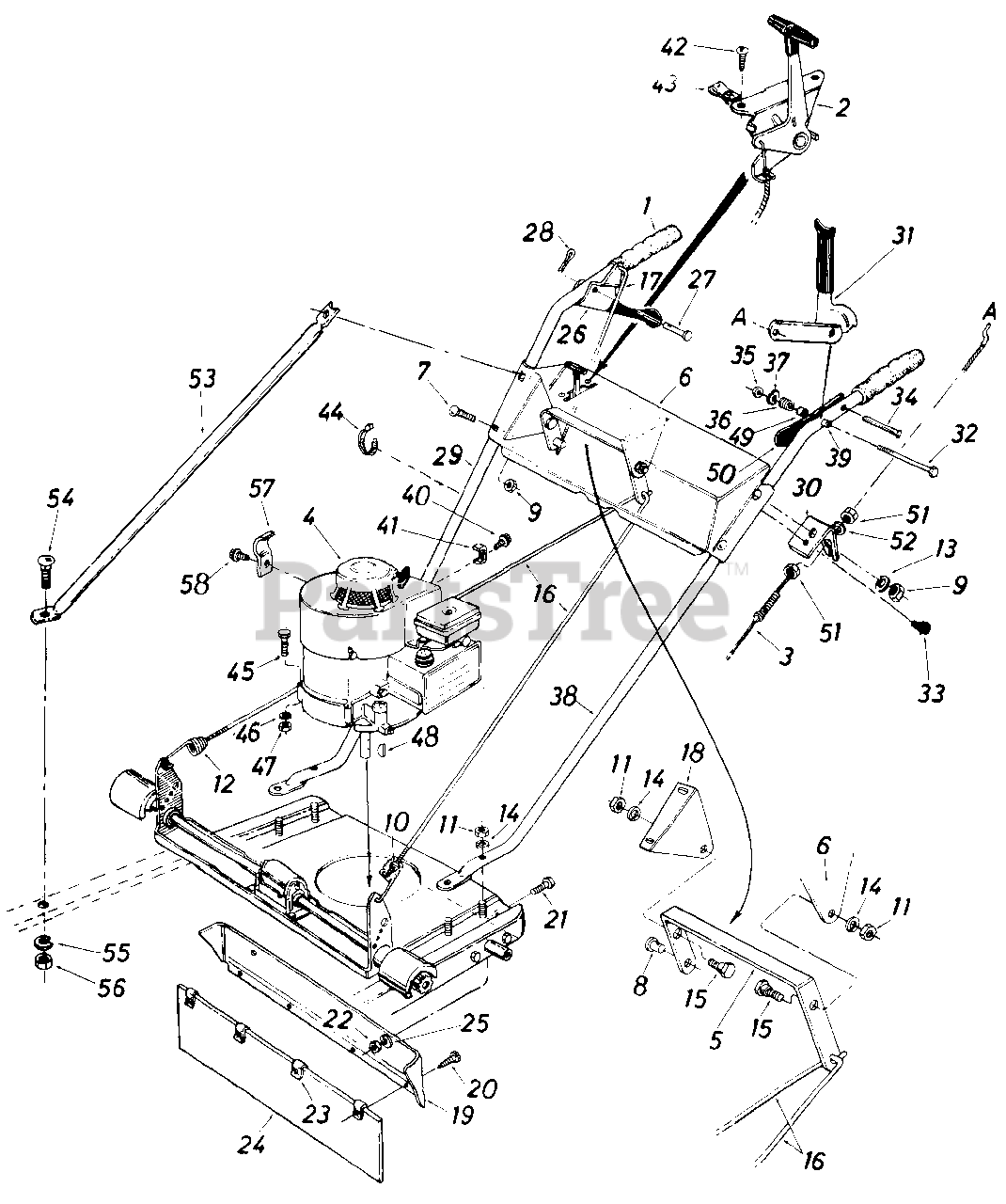

125-574-190 - White Outdoor Lawn Boss 26" Walk-Behind Mower (1985) > Parts Diagrams (4) > Handle Assembly

  • Title
720-0204

1

Grip Black

Part# 720-0204

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $8.61

746-0378

2

Throttle Control Ass'y. Comp.

Part# 746-0378

OEM Warranty Repair Part for White Outdoor

Not available

746-0488

3

Clutch Cable 56" Long

Part# 746-0488

OEM Warranty Repair Part for White Outdoor

Not available

4

Engine

Part#

Not available

12570

5

Link Bracket

Part# 12570

Not available

15335

6

Handle Panel Ass'y.

Part# 15335

Not available

710-0458

7

Carriage Bolt 5/16-18 x 1.75" Lg.*

Part# 710-0458

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

711-0619

8

Adj. Ferrule 1/4-20 Thd.

Part# 711-0619

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

9

Hex Nut 5/16-18 Thd.*

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.79

712-0324

10

Hex Ins. L-Nut 1/4-20 Thd.

Part# 712-0324

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.42

712-0798

11

Hex Nut 3/8-16 Thd.*

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.75

732-0305

12

Extension Spring

Part# 732-0305

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

13

L-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0169

14

L-Wash. 3/8" I.D.*

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.39

738-0234

15

Shld. Bolt .500" Dia. x .295

Part# 738-0234

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.76

747-0162

16

Lockout Rod

Part# 747-0162

Not available

747-0163

17

Rod .214" Dia. x 14.87" Lg.

Part# 747-0163

OEM Warranty Repair Part for White Outdoor

Not available

12571

18

Bracket

Part# 12571

Not available

12548

19

Drag Shield Adapter

Part# 12548

Not available

710-0436

20

Hex B-Tap Scr. #10 x .62" Lg.

Part# 710-0436 (Superseded to 710-0651)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.27

710-0567

21

Hex Bolt 1/4-28 x .62" Lg.*

Part# 710-0567 (Superseded to 910-0195)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.27

712-0138

22

Hex Nut 1/4-28 Thd.*

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.31

726-0130

23

Speed Nut 10Z U-Type

Part# 726-0130 (Superseded to 926-0130)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.34

735-0182

24

Drag Shield 4.65" x 20.0" Lg.

Part# 735-0182

Not available

736-0329

25

L-Wash. 1/4" I.D.*

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

12921

26

Clutch Grip Ass'y.

Part# 12921

OEM Warranty Repair Part for White Outdoor

Not available

711-0415

27

Clevis Pin .375" Dia.

Part# 711-0415 (Superseded to 911-0415)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

714-0104

28

Intern. Cot. Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

749-0556

29

R.H. Handle (Chrome)

Part# 749-0556

Not available

749-0554

R.H. Handle (Painted)

Part# 749-0554

Not available

16047

30

Clutch Cable Brkt.

Part# 16047

Not available

15482

31

Blade Clutch Grip Ass'y.

Part# 15482

Not available

710-0641

32

Hex Bolt 1/4-20 x 2.25" Lg.*

Part# 710-0641

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

710-0599

33

Hex Wash. S-Tap Scr. 1/4-20 x .50 Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.75

731-0607

34

Lock Pin

Part# 731-0607

OEM Warranty Repair Part for White Outdoor

Not available

712-0291

35

Hex Cent. L-Nut 1/4-20 Thd.

Part# 712-0291 (Superseded to 912-0291)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.82

732-0334

36

Compression Spring .50" O.D. x .50" Lg.

Part# 732-0334 (Superseded to 932-0334)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.44

736-0498

37

Internal Tooth L-Wash.

Part# 736-0498

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.66

749-0557

38

L.H. Handle (Chrome)

Part# 749-0557

Not available

749-0555

L.H. Handle (Painted)

Part# 749-0555

Not available

750-0566

39

Spacer.255" I.D.

Part# 750-0566 (Superseded to 750-0566A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.54

710-0429

40

Hex B-Tap Scr. #10 x .38" Lg.

Part# 710-0429 (Superseded to 910-0429)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.31

751-0333

41

Casing Clamp

Part# 751-0333

OEM Warranty Repair Part for White Outdoor

Not available

710-0224

42

Hex Wash. Hd. AB-Tap Scr. #10 x .50" Lg.

Part# 710-0224 (Superseded to 910-0224)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.29

712-0344

43

Speed Nut 10Z

Part# 712-0344

OEM Warranty Repair Part for White Outdoor

Not available

725-0157

44

Cable Tie Self Clinching

Part# 725-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.45

710-0158

45

Hex Bolt 5/16-24 x 1.25" Lg.*

Part# 710-0158 (Superseded to 710-0672)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

736-0119

46

L-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

712-0123

47

Hex Nut 5/16-24 Thd.*

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.27

714-0365

48

#6 Hi-Pro Key 5/32 x 5/8" Dia.

Part# 714-0365 (Superseded to 914-0365)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $3.18

750-0565

49

Spacer.255" I.D. x .375" O.D.

Part# 750-0565

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $5.36

732-0441

50

Lock Spring

Part# 732-0441

OEM Warranty Repair Part for White Outdoor

Not available

712-0256

51

Hex Jam Nut 5/16-24 Thd.

Part# 712-0256

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.32

736-0119

52

L-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

749-0523

53

Strut

Part# 749-0523

Not available

710-0260

54

Carriage Bolt 5/16-18 x .62" Lg.*

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.68

736-0119

55

L-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

712-0267

56

Hex Nut 5/16-18 Thd.*

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.79

12894

57

Casing Clamp

Part# 12894

OEM Warranty Repair Part for White Outdoor

Not available

710-0456

58

Hex Wash-Hd. Tap Scr. #10 x .50" Lg.

Part# 710-0456

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.29

8574-000-5

Hardware Pack

Part# 8574-000-5

Note: (574)

Not available

8573-000-5

Hardware Pack

Part# 8573-000-5

Note: (573)

Not available
