125 B - Husqvarna Handheld Blower (2008-10) Repair Parts Parts Diagram

Handheld Blower

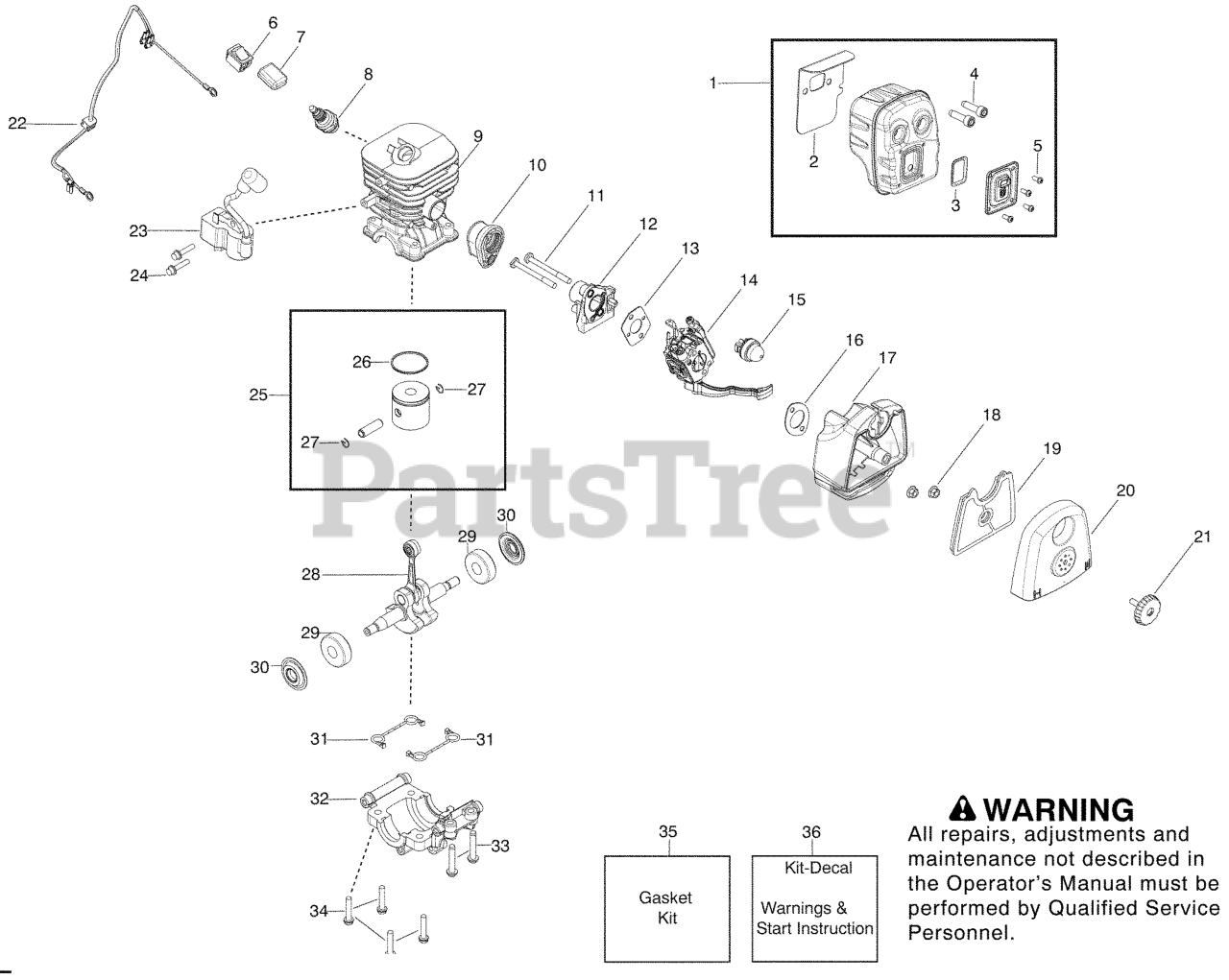

Repair Parts Parts Diagram

  • Title

1

Husqvarna 545111901

ASSY, MUFFLER
(Superseded to 580502701)

Note: (Incl. 2,3,4,5)

$53.99

$

In Stock, only 2 left!

0

2

Husqvarna 545081813

GASKET

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 545081810

KIT, SPARK SCREEN

Note: (Incl. 5)

$7.99

$

In Stock, only 1 left!

0

4

Husqvarna 530058982

BOLT MUFFLER

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$3.99

$

In Stock, Qty 9

0

6

Husqvarna 545049301

KIT SWITCH

$11.99

$

In Stock, Qty 5

0

7

Husqvarna 545128201

PROTECTOR, SWITCH

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 952030249

Accy - Spark Plug (RCJ6-Y)
(Superseded to 530030179)

$4.49

$

In Stock, Qty 20+

0

9

Cylinder - Chrome

Note: New Part Number For This IPL. Refer to the Service Reference Indicated for more Information. (Located at the END of the IPL)

$

$

Not available

10

Husqvarna 545132501

BOOT, CARB

$17.99

$

In Stock, only 4 left!

0

11

Husqvarna 530016187

SCREW

$3.49

$

In Stock, Qty 7

0

12

Husqvarna 545133301

PLATE, CARB

$7.49

$

In Stock, Qty 11

0

13

Husqvarna 545081813

GASKET

$20.99

$

Usually ships in 3-10 days

0

14

Husqvarna 545081811

KIT, CARB
(Superseded to 590460102)

Note: (Incl. 13,16)

$45.99

$

In Stock, Qty 20+

0

15

Husqvarna 530047721

AIR PURGE

Note: (Incl. with #25 on page 1)

$9.99

$

In Stock, Qty 20+

0

16

Husqvarna 545081813

GASKET

$20.99

$

Usually ships in 3-10 days

0

17

Husqvarna 545109801

BASE, AIRBOX

$8.49

$

In Stock, Qty 7

0

18

Husqvarna 530016101

NUT

$4.99

$

In Stock, Qty 5

0

19

Husqvarna 545112101

FILTER, AIR
(Superseded to 597797901)

$8.49

$

In Stock, Qty 20+

0

20

Husqvarna 545176801

COVER AIRBOX
(Superseded to 545109601)

$14.99

$

In Stock, only 3 left!

0

21

Husqvarna 530059796

KNOB ASSY AIRBOX COVER

$5.99

$

In Stock, Qty 9

0

22

Husqvarna 545108202

ASSY, LEADWIRE
(Superseded to 545108201)

$

$

Not available

23

Husqvarna 545108101

IGNITION MODULE
(Superseded to 585836101)

$

$

Not available

24

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$3.99

$

In Stock, Qty 9

0

25

Husqvarna 545081814

KIT - PISTON

Note: (Incl. 26,27)

$15.99

$

In Stock, Qty 7

0

26

Husqvarna 530019283

RING PISTON
(Superseded to 575227901)

$7.49

$

In Stock, Qty 13

0

27

Husqvarna 530015162

WRIST PIN RET.

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 545081816

KIT, CRANKSHAFT

$

$

Not available

29

Husqvarna 545013401

BEARING RADIAL BALL (6201)

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 545081815

CRANKSHAFT SEAL

$5.99

$

In Stock, only 2 left!

0

31

Husqvarna 545081813

GASKET

$20.99

$

Usually ships in 3-10 days

0

32

Husqvarna 545068301

CAP - BEARING
(Superseded to 577929601)

$21.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530015940

SCREW

$3.99

$

In Stock, only 2 left!

0

34

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.99

$

In Stock, Qty 14

0

35

Husqvarna 545081813

GASKET

Note: (Incl. 2,13,16,31)

$20.99

$

Usually ships in 3-10 days

0

36

Husqvarna 545081809

KIT, DECAL

$2.49

$

Usually ships in 3-10 days

0
