125 B - Husqvarna Handheld Blower (2010-01) (Lowes) Engine Parts Diagram

Handheld Blower

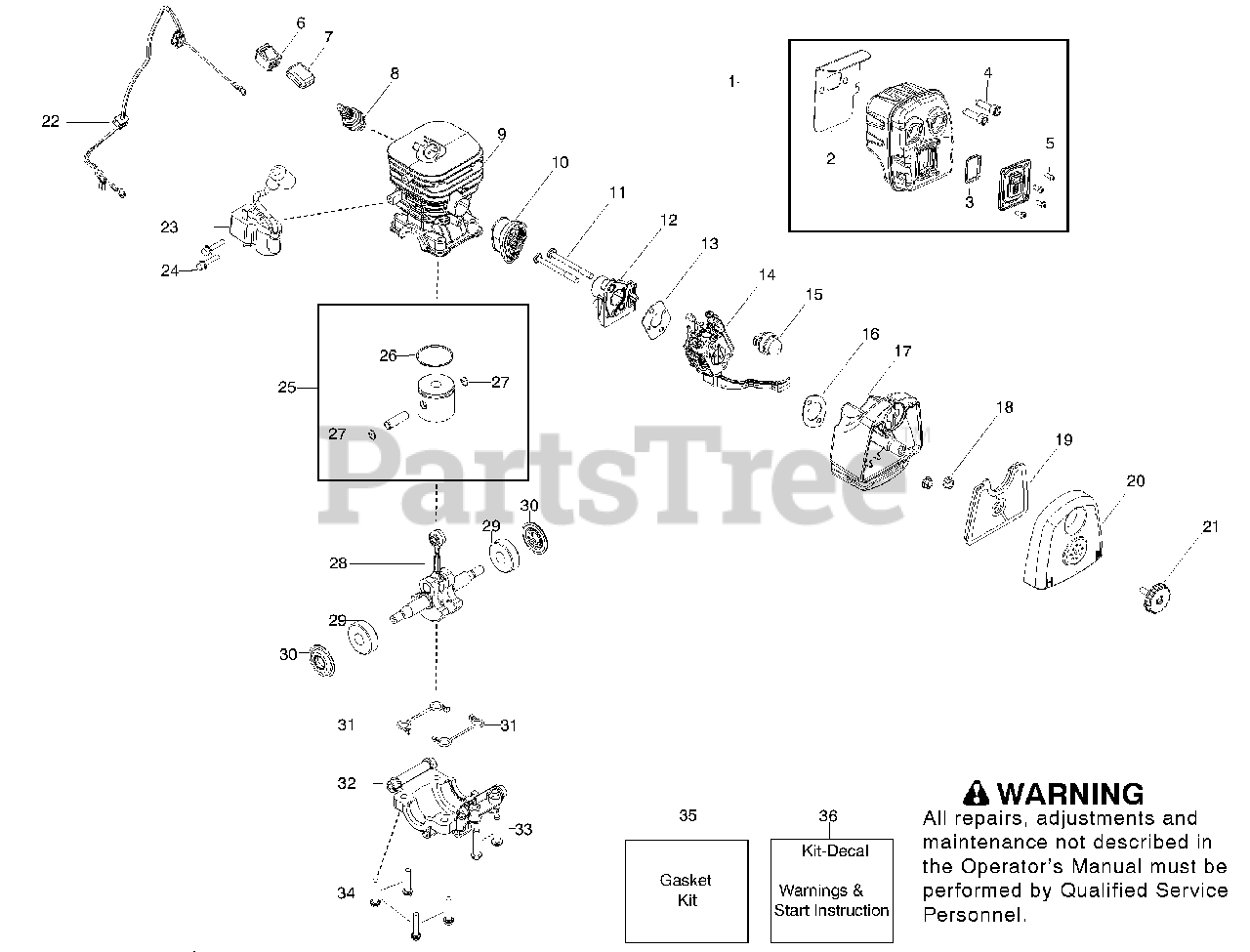

Engine Parts Diagram

  • Title

1

Husqvarna 545111901

Assy - Muffler
(Superseded to 580502701)

Note: (Incl. 2,3,4,5)

$31.99

$

In Stock, Qty 9

0

2

Husqvarna 545081813

Gasket - Muffler (kit)

$24.99

$

In Stock, Qty 5

0

3

Husqvarna 545081810

Kit - Spark Screen

Note: (Incl. 5)

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 530058982

Bolt - Muffler

$4.99

$

In Stock, Qty 12

0

5

Husqvarna 530015241

Screw
(Superseded to 545227101)

$4.99

$

In Stock, Qty 7

0

6

Husqvarna 545049301

Switch

$9.99

$

In Stock, Qty 18

0

7

Husqvarna 545128201

Protector - Switch

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 952030249

Accy - Spark Plug (RCJ6-Y)

$4.99

$

In Stock, Qty 20+

0

9

Cylinder - Chrome

$

$

Not available

10

Husqvarna 545132501

Boot - Carb.

$17.99

$

In Stock, only 3 left!

0

11

Husqvarna 530016187

Screw

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 545133301

Plate - Carb.

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 545081813

Gasket - Carb. (kit)

$24.99

$

In Stock, Qty 5

0

14

Husqvarna 545081811

Kit - Carb. (X5055)
(Superseded to 590460102)

Note: (Incl. 13,16)

$40.99

$

In Stock, Qty 20+

0

15

Husqvarna 530047721

Bulb - Purge

Note: (Incl. with #25 on page 1)

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 545081813

Gasket - Airbox (kit)

$24.99

$

In Stock, Qty 5

0

17

Husqvarna 545109801

Base - Airbox

$12.99

$

In Stock, Qty 6

0

18

Husqvarna 530016101

Nut - Carb screw

$6.49

$

In Stock, Qty 8

0

19

Husqvarna 545112101

Filter - Air

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 545176801

Cover - Airbox
(Superseded to 545109601)

$12.99

$

In Stock, Qty 6

0

21

Husqvarna 530059796

Assy - Airbox Knob

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 545108202

Assy - Leadwire

$10.99

$

In Stock, only 1 left!

0

23

Husqvarna 545108101

Module - Ignition
(Superseded to 585836101)

$31.99

$

In Stock, Qty 20+

0

24

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 545081814

Kit - Piston

Note: (Incl. 26,27)

$44.99

$

In Stock, only 1 left!

0

26

Husqvarna 530019283

Ring - Piston
(Superseded to 575227901)

$7.49

$

In Stock, Qty 17

0

27

Husqvarna 530015162

Retainer - Piston pin

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 545081816

Kit - Crankshaft

$

$

Not available

29

Husqvarna 545013401

Bearing

$10.99

$

In Stock, Qty 5

0

30

Husqvarna 545081815

Kit - Crankshaft seal

$10.99

$

In Stock, only 3 left!

0

31

Husqvarna 545081813

Seal - Cylinder (kit)

$24.99

$

In Stock, Qty 5

0

32

Husqvarna 545068301

Cap - Bearing
(Superseded to 577929601)

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530015940

Screw

$6.49

$

In Stock, Qty 9

0

34

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

35

Husqvarna 545081813

Kit - Gasket

Note: (Incl. 2,13,16,31)

$24.99

$

In Stock, Qty 5

0

36

Husqvarna 545081809

Kit - Decal

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 545134801

Decal - Starter Cover

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0
