125 B - Husqvarna Handheld Blower (Original) HOUSING Parts Diagram

Handheld Blower

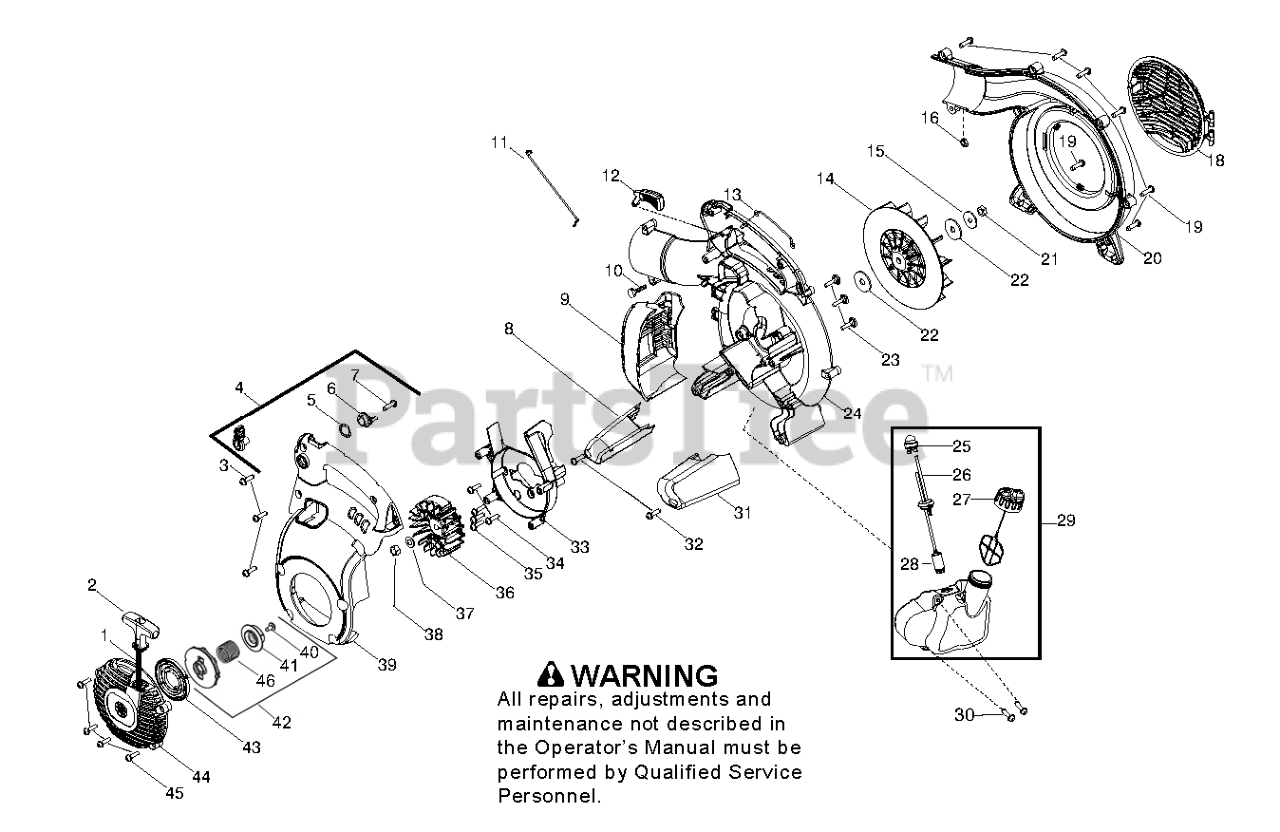

HOUSING Parts Diagram

  • Title

38

Husqvarna 530016134

NUT-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 530015810

SCREW - SHROUD
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

12

Husqvarna 545111601

TRIGGER, THROTTLE

$9.99

$

In Stock, only 1 left!

0

32

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

15

Husqvarna 530015127

WASHER-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 530015828

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 530047721

AIR PURGE

$6.49

$

In Stock, Qty 20+

0

36

Husqvarna 576423301

FLYWHEEL ASSY

$24.99

$

In Stock, only 3 left!

0

10

Husqvarna 545003502

SCREW

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 545111301

WIRE LINKAGE

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 545131701

WIRE, HANDLE GROUND

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 545157901

ASSY, MUFFLER GUARD

$

$

Not available

3

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna .

NEEDS DESCRIPTION

$

$

Currently unavailable

44

Husqvarna 545111801

HOUSING - STARTER COVER
(Superseded to 545111701)

$18.99

$

In Stock, only 2 left!

0

21

Husqvarna 545147101

NUT, IMPELLER

$6.49

$

In Stock, Qty 8

0

42

Husqvarna 545006084

KIT - STARTER

$24.99

$

In Stock, Qty 15

0

18

Husqvarna 545111202

COVER VAC DOOR

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530015197

NUT

$6.49

$

In Stock, Qty 5

0

43

Husqvarna 530042095

SPRING STARTER
(Superseded to 545008013)

$6.49

$

In Stock, Qty 6

0

19

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

20

Husqvarna 575533202

ASSEMBLY OUTER SCROLL

$28.99

$

Usually ships in 3-10 days

0

46

Husqvarna 545115901

SPRING EPS2

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 545140301

FOOT, FRONT IMPACT

$

$

Not available

26

Husqvarna 581798001

FUEL LINE GROMMET KIT

$9.99

$

In Stock, Qty 11

0

39

Husqvarna 545111002

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 545043204

STARTER HANDLE

$7.49

$

In Stock, only 4 left!

0

4

Husqvarna 545081822

KIT CRUISE CONTROL

$10.99

$

In Stock, only 4 left!

0

23

Husqvarna 530016445

SCREW FUEL TANK RETAINER

$6.49

$

In Stock, Qty 6

0

41

Husqvarna 545089001

HUB

$8.99

$

Usually ships in 3-10 days

0

31

Husqvarna 545140401

FOOT, REAR IMPACT

$

$

Not available

28

Husqvarna 530095646

FUEL PICK-UP ASSY

Note: 30 pcs, plastic bag

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 545132801

SCROLL, FLYWHEEL

$15.99

$

In Stock, only 1 left!

0

5

Husqvarna 530015147

WAVE WASHER

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 545111501

RATCHET CRUISE CONTROL

$7.49

$

Usually ships in 3-10 days

0

45

Husqvarna 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

40

Husqvarna 545112801

SCREW

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

22

Husqvarna 545164501

WASHER IMPELLER

$4.99

$

In Stock, Qty 8

0

24

Husqvarna 545110002

SCROLL, INNER

$36.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

1

Husqvarna 545081817

KIT ROPE

$8.99

$

In Stock, Qty 8

0
