125 BT - Husqvarna Backpack Blower (2003-07) Fan / Housing & Blower Tubes Parts Diagram

Backpack Blower

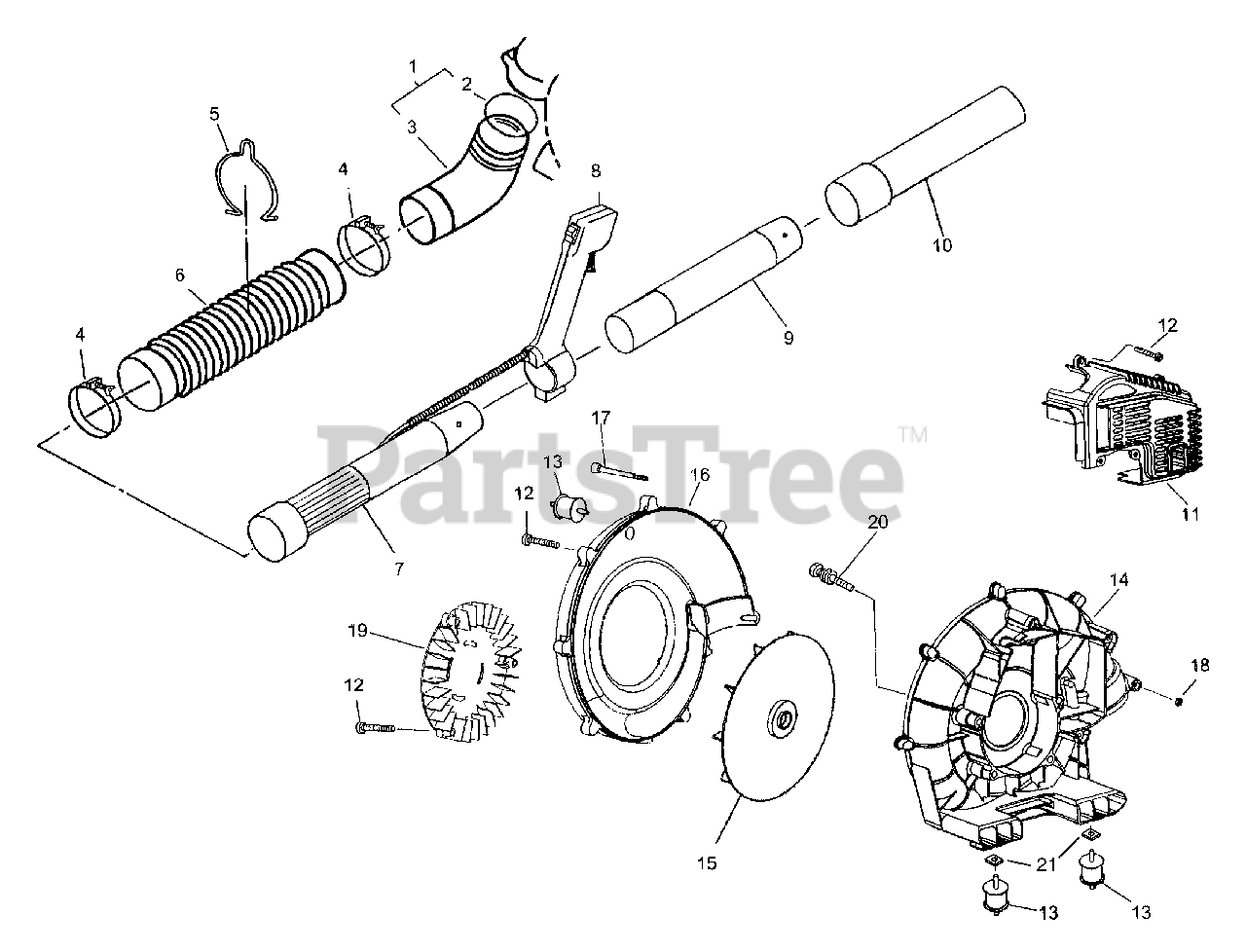

Fan / Housing & Blower Tubes Parts Diagram

  • Title

1

Husqvarna 695008001

ELBOW PIPE C.P.

$

$

Not available

2

Husqvarna 695008002

O-RING
(Superseded to 531003787)

$3.49

$

In Stock, only 1 left!

0

3

Husqvarna 695008003

ELBOW PIPE
(Superseded to 531003788)

$

$

Not available

4

Husqvarna 695008004

HOSE BAND
(Superseded to 531003212)

$

$

Not available

5

Husqvarna 695008005

WIRE CLAMP
(Superseded to 531003375)

$

$

Not available

6

Husqvarna 695008006

FLEX, PIPE
(Superseded to 531003213)

$68.99

$

Usually ships in 3-10 days

0

7

Husqvarna 695008007

BASE PIPE
(Superseded to 531003789)

$

$

Not available

8

Husqvarna 695008008

THROTTLE LEVER ASSY
(Superseded to 531003790)

Note: (See section "H")

$

$

Not available

9

Husqvarna 695008009

MIDDLE PIPE
(Superseded to 531003791)

$

$

Not available

10

Husqvarna 695008010

TUBE, END
(Superseded to 531003792)

$

$

Not available

11

Husqvarna 695008011

COVER
(Superseded to 531003793)

$

$

Not available

12

Husqvarna 695008012

TAPPING SCREW M5X20
(Superseded to 531003727)

$

$

Not available

13

Husqvarna 695008013

VIBRO-ISOLATING RUBBER
(Superseded to 531003794)

$

$

Not available

14

Husqvarna 695008014

FAN CASE
(Superseded to 531003795)

$

$

Not available

15

Husqvarna 695008015

FAN
(Superseded to 531003796)

$

$

Not available

16

Husqvarna 695008016

FAN CASE
(Superseded to 531003797)

$

$

Not available

17

Husqvarna 695008017

SOCKET SCREW
(Superseded to 531003798)

$

$

Not available

18

Husqvarna 695008018

NYLON NUT M5
(Superseded to 732251401)

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 695008019

FAN COVER
(Superseded to 531003799)

$

$

Not available

20

Husqvarna 695008020

HEX BOLT
(Superseded to 531009501)

$

$

Not available

21

Husqvarna 695008151

SQUARE NUT

$

$

Not available
