125 BT - Husqvarna Backpack Blower (SN: 20041800001 & Above) PISTON & CRANKSHAFT Parts Diagram

Backpack Blower

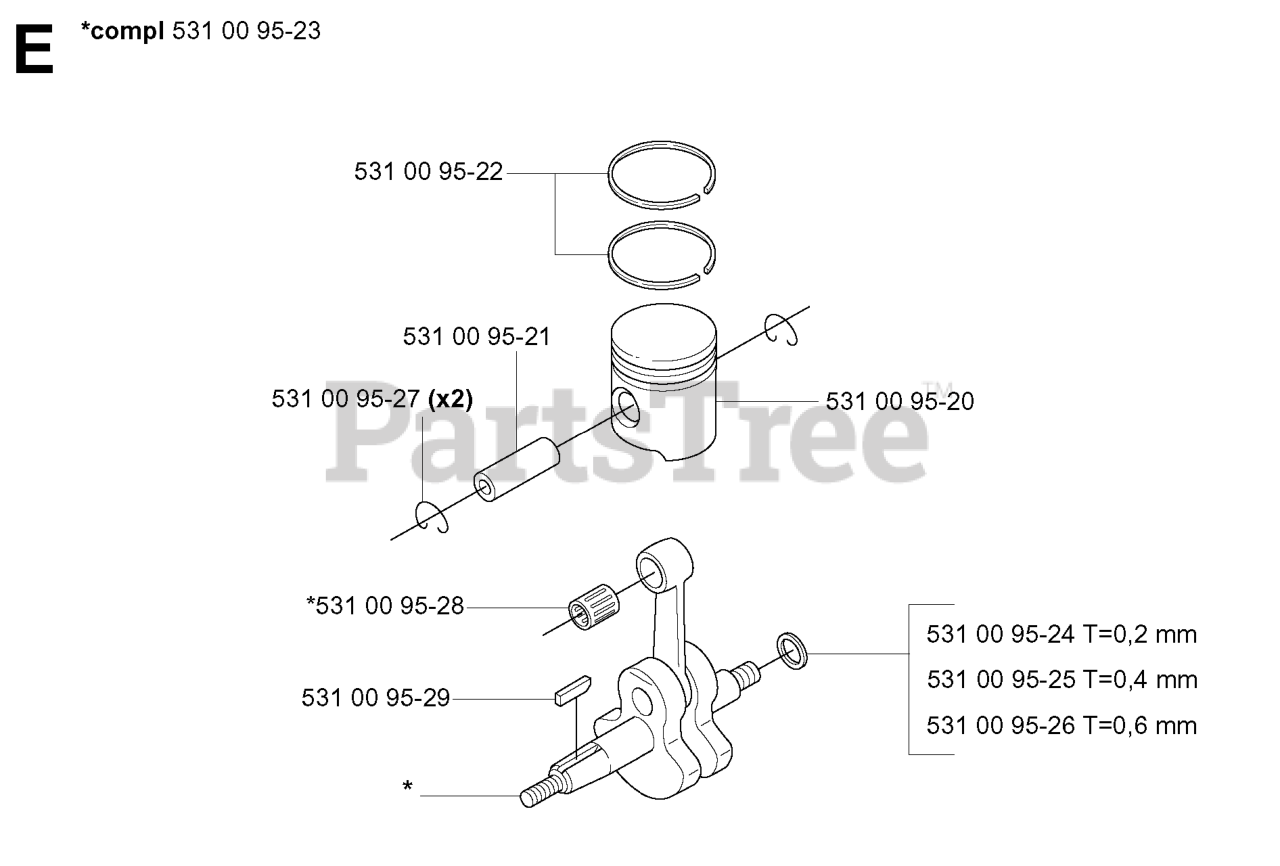

PISTON & CRANKSHAFT Parts Diagram

  • Title

531 00 95-23

Husqvarna 531009523

CRANKSHAFT

$

$

Not available

531 00 95-29

Husqvarna 531009529

KEY

$

$

Not available

531 00 95-26

Husqvarna 531009526

WASHER

Note: T=0,6 MM

$

$

Not available

531 00 95-20

Husqvarna 531009520

PISTON

$

$

Not available

531 00 95-24

Husqvarna 531009524

WASHER

Note: T=0,2 MM

$

$

Not available

531 00 95-25

Husqvarna 531009525

SHIM = 0.40

Note: T=0,4 MM

$

$

Not available

531 00 95-27

Husqvarna 531009527

RETAINING RING

$

$

Not available

531 00 95-28

Husqvarna 531009528

SUPPORT BUSHING

$

$

Not available

531 00 95-21

Husqvarna 531009521

PISTON BOLT

$

$

Not available

531 00 95-22

Husqvarna 531009522

PISTON RING

$

$

Not available
