125 BVX - Husqvarna Handheld Blower (2007-06) Repair Parts (B) Parts Diagram

Handheld Blower

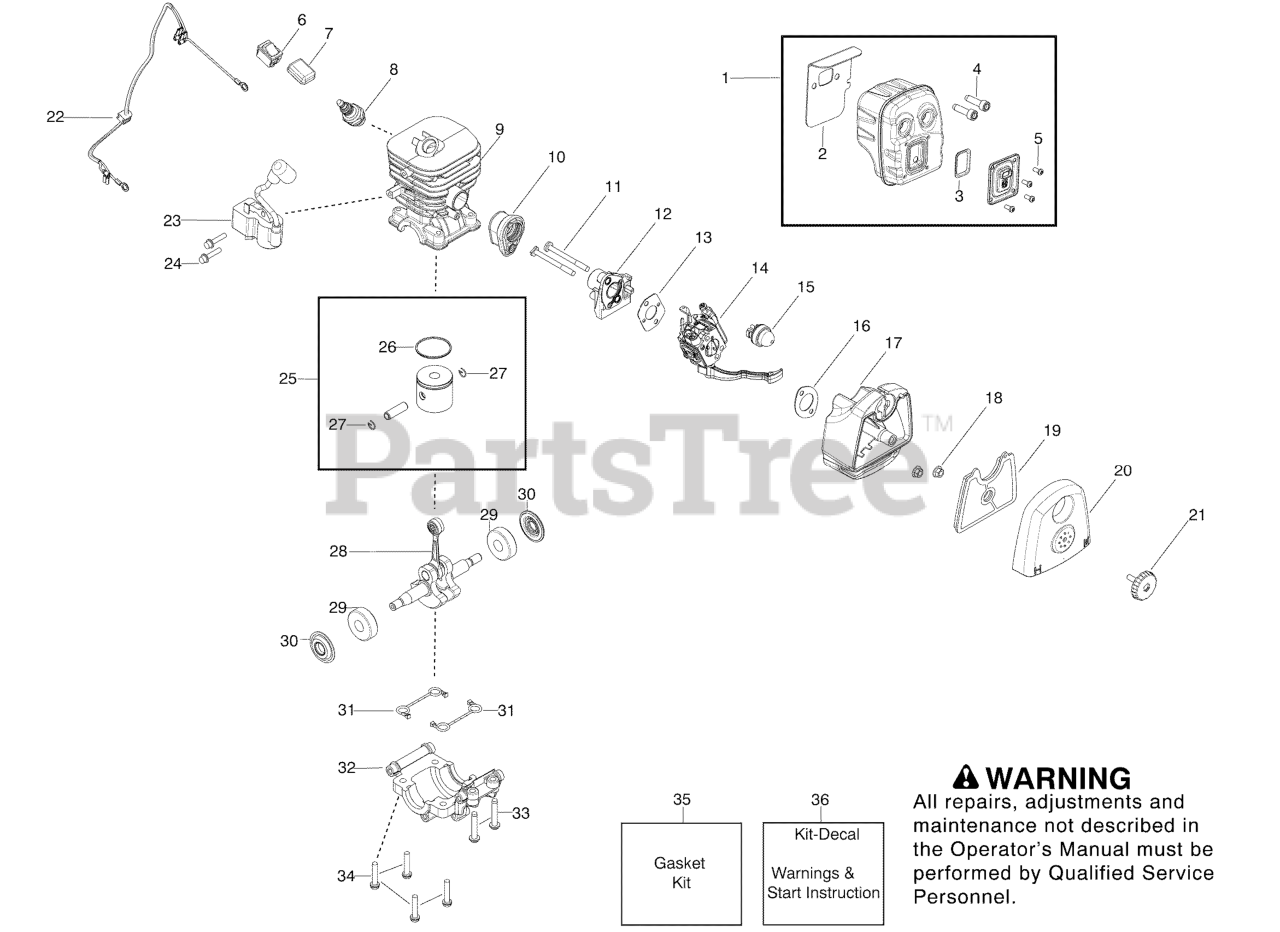

Repair Parts (B) Parts Diagram

  • Title

1

Husqvarna 545111901

ASSY, MUFFLER
(Superseded to 580502701)

Note: Incl. 2,3,4,5

$39.99

$

In Stock, Qty 5

0

2

Husqvarna 545081813

GASKET

Note: kit

$20.99

$

In Stock, only 2 left!

0

3

Husqvarna 545081810

KIT, SPARK SCREEN

Note: Incl. 5

$7.99

$

In Stock, only 2 left!

0

4

Husqvarna 530058982

BOLT MUFFLER

$3.49

$

In Stock, only 3 left!

0

5

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$3.49

$

In Stock, Qty 14

0

6

Husqvarna 545049301

KIT SWITCH

$11.99

$

In Stock, Qty 5

0

7

Husqvarna 545128201

PROTECTOR, SWITCH

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 952030249

Accy - Spark Plug
(Superseded to 530030179)

Note: RCJ6-Y

$4.49

$

In Stock, Qty 20+

0

9

Husqvarna 545132601

CYLINDER -CHROME
(Superseded to 529900601)

$74.99

$

In Stock, only 2 left!

0

10

Husqvarna 545132501

BOOT, CARB

$17.99

$

In Stock, Qty 6

0

11

Husqvarna 530016187

SCREW

$3.49

$

In Stock, Qty 7

0

12

Husqvarna 545133301

PLATE, CARB

$6.99

$

In Stock, Qty 12

0

13

Husqvarna 545081813

GASKET

Note: kit

$20.99

$

In Stock, only 2 left!

0

14

Husqvarna 545081811

KIT, CARB
(Superseded to 590460102)

Note: X5055; Incl. 13,16

$43.99

$

In Stock, Qty 20+

0

15

Husqvarna 530047721

AIR PURGE

Note: Included with #26 on page 1

$9.49

$

In Stock, Qty 20+

0

16

Husqvarna 545081813

GASKET

Note: kit

$20.99

$

In Stock, only 2 left!

0

17

Husqvarna 545109801

BASE, AIRBOX

$7.99

$

In Stock, Qty 7

0

18

Husqvarna 530016101

NUT

$4.99

$

In Stock, Qty 10

0

19

Husqvarna 545112101

FILTER, AIR

$9.49

$

In Stock, Qty 20+

0

20

Husqvarna 545109601

COVER, AIRBOX

$13.99

$

In Stock, only 4 left!

0

21

Husqvarna 530059796

KNOB ASSY AIRBOX COVER

$5.99

$

In Stock, Qty 19

0

22

Husqvarna 545108202

ASSY, LEADWIRE

$11.99

$

In Stock, only 1 left!

0

23

Husqvarna 545108101

IGNITION MODULE
(Superseded to 585836101)

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$3.49

$

In Stock, Qty 12

0

25

Husqvarna 545081814

KIT - PISTON

Note: Incl. 26,27

$39.99

$

In Stock, Qty 7

0

26

Husqvarna 530019283

RING PISTON
(Superseded to 575227901)

$6.99

$

In Stock, Qty 17

0

27

Husqvarna 530015162

WRIST PIN RET.

$3.49

$

In Stock, only 2 left!

0

28

Husqvarna 545081816

KIT, CRANKSHAFT

$

$

Not available

29

Husqvarna 545013401

BEARING RADIAL BALL (6201)

$6.99

$

Usually ships in 3-10 days

0

30

Husqvarna 545081815

CRANKSHAFT SEAL

$9.49

$

In Stock, only 4 left!

0

31

Husqvarna 545081813

GASKET

Note: kit

$20.99

$

In Stock, only 2 left!

0

32

Husqvarna 545068301

CAP - BEARING
(Superseded to 577929601)

$20.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530015940

SCREW

$3.49

$

In Stock, only 2 left!

0

34

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$3.49

$

In Stock, Qty 19

0

35

Husqvarna 545081813

GASKET

Note: Incl. 2,13,16,31

$20.99

$

In Stock, only 2 left!

0

36

Husqvarna 545081860

KIT DECAL

$

$

Not available
