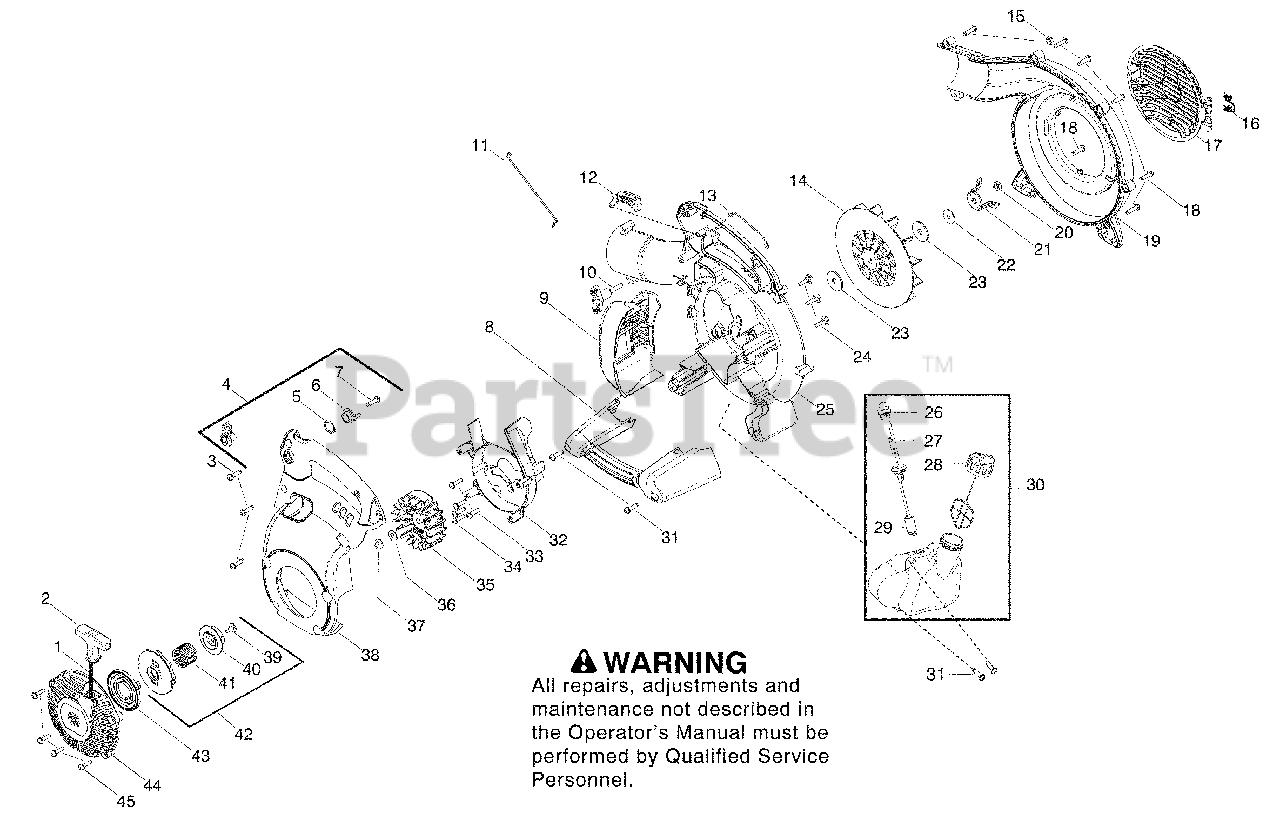

125 BX - Husqvarna Handheld Blower (2008-10) Engine Parts Diagram

Handheld Blower

Engine Parts Diagram

  • Title

1

Husqvarna 545081817

KIT ROPE

$8.49

$

In Stock, Qty 7

0

2

Husqvarna 545043204

STARTER HANDLE

$8.49

$

In Stock, only 2 left!

0

3

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

4

Husqvarna 545081822

KIT CRUISE CONTROL

Note: (Incl. 5,6,7)

$9.99

$

In Stock, Qty 6

0

5

Husqvarna 530015147

WAVE WASHER

$2.49

$

Usually ships in 3-10 days

0

6

Husqvarna 545111501

RATCHET CRUISE CONTROL

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

8

Husqvarna 545119002

HANDLE ASSIST W/OVER MOLD

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 545157901

ASSY, MUFFLER GUARD
(Superseded to 599707601)

$14.99

$

In Stock, only 2 left!

0

10

Husqvarna 545108701

ASSY, BLOWER KNOB

$

$

Not available

11

Husqvarna 545111301

WIRE LINKAGE

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 545111601

TRIGGER, THROTTLE

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 545131701

WIRE, HANDLE GROUND

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 545131301

IMPELLER
(Superseded to 545173201)

$

$

Not available

15

Husqvarna 530015197

NUT

$2.49

$

In Stock, only 3 left!

0

16

Husqvarna 545111101

SPRING, VAC DOOR

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 545111201

COVER VAC DOOR

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

19

Husqvarna 545113001

ASSY - OUTER SCROLL
(Superseded to 575533201)

Note: (Incl. 16,17)

$39.99

$

Usually ships in 3-10 days

0

20

Husqvarna 545147101

NUT, IMPELLER

$3.49

$

In Stock, Qty 19

0

21

Blade - Mulch

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL) New Part Number For This IPL

$

$

Not available

22

Washer

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL) New Part Number For This IPL

$

$

Not available

23

Husqvarna 545164501

WASHER IMPELLER

$4.99

$

In Stock, Qty 18

0

24

Husqvarna 530016445

SCREW FUEL TANK RETAINER

$

$

Not available

25

Husqvarna 545110001

SCROLL - INNER

$41.99

$

Usually ships in 3-10 days

0

26

Husqvarna 530047721

AIR PURGE

$9.99

$

In Stock, Qty 20+

0

27

Husqvarna 545081841

KIT FUEL LINE GROMMET
(Superseded to 581798001)

Note: (Incl. 26,29)

$13.99

$

In Stock, Qty 14

0

28

Husqvarna 530150350

ASSY-CAP W/RETAINER
(Superseded to 578931503)

$9.99

$

In Stock, Qty 11

0

29

Husqvarna 530095646

FUEL PICK-UP ASSY

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 545108901

ASSY, FUEL TANK
(Superseded to 581337213)

Note: (Incl. 26,27,28,29)

$47.99

$

In Stock, only 2 left!

0

31

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

32

Scroll - Flywheel

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL) New Part Number For This IPL

$

$

Not available

33

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

34

Husqvarna 530015810

SCREW - SHROUD
(Superseded to 530016386)

$3.99

$

In Stock, Qty 7

0

35

Husqvarna 545088801

ASSY, FLYWHEEL
(Superseded to 576423301)

$29.99

$

Usually ships in 3-10 days

0

36

Husqvarna 530015828

WASHER FLAT

$3.49

$

In Stock, only 1 left!

0

37

Husqvarna 530016134

NUT-FLYWHEEL

$3.99

$

In Stock, Qty 6

0

38

Husqvarna 545108801

COVER - MOTOR HOUSING
(Superseded to 545111001)

$

$

Not available

39

Husqvarna 545112801

SCREW

$3.99

$

In Stock, only 1 left!

0

40

Husqvarna 545089001

HUB

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 545115901

SPRING EPS2

$5.99

$

In Stock, only 1 left!

0

42

Husqvarna 545006084

KIT - STARTER

Note: (Incl. 39,40,41)

$17.99

$

In Stock, Qty 7

0

43

Husqvarna 530042095

SPRING STARTER
(Superseded to 545008013)

$7.49

$

In Stock, Qty 20+

0

44

Husqvarna 545111801

HOUSING - STARTER COVER
(Superseded to 545111701)

$29.99

$

In Stock, only 1 left!

0

45

Husqvarna 530015810

SCREW - SHROUD
(Superseded to 530016386)

$3.99

$

In Stock, Qty 7

0
