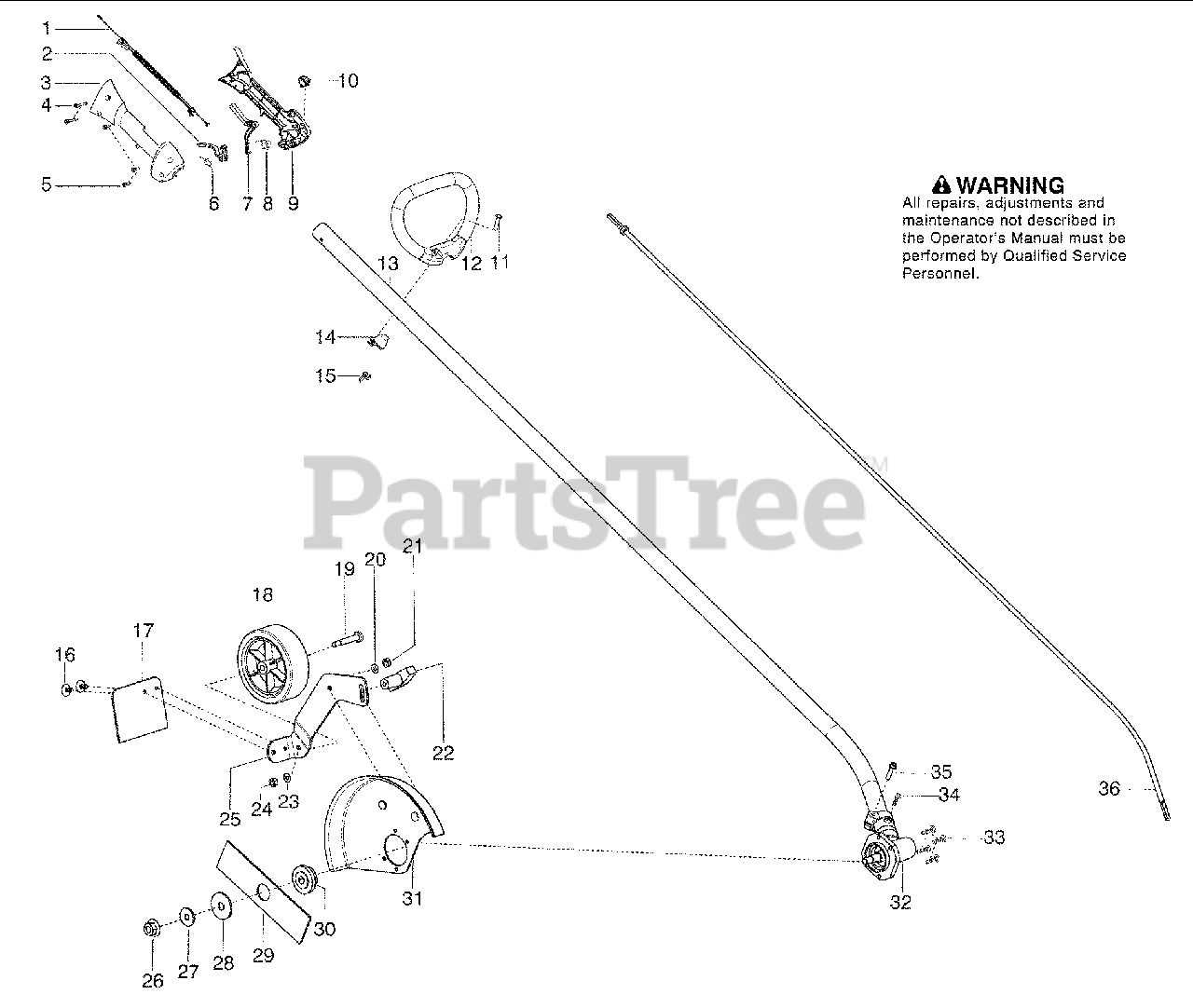

125 E (545014318) - Husqvarna Handheld Edger (2009-09) Handle & Controls Parts Diagram

Handheld Edger

Handle & Controls Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

2

Husqvarna 545066001

TRIGGER THROTTLE

$

$

Not available

3

Husqvarna 545062001

HOUSING-THROTTLE RH

$

$

Not available

4

Husqvarna 530016448

SCREW

$3.49

$

In Stock, Qty 9

0

5

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$3.99

$

In Stock, Qty 14

0

6

Husqvarna 530016454

SPRING TRIGGER

$5.99

$

In Stock, Qty 13

0

7

Husqvarna 530059804

THROTTLE LOCKOUT

$

$

Not available

8

Husqvarna 545045601

SPRING LOCKOUT

$

$

Not available

9

Husqvarna 545067001

HSG THROTTLE LH

$

$

Not available

10

Husqvarna 545030601

KIT SWITCH
(Superseded to 545049301)

$11.99

$

In Stock, Qty 5

0

11

Husqvarna 530015820

BOLT, TYPE 2

$2.49

$

In Stock, Qty 10

0

12

Husqvarna 545042201

HANDLE

$21.99

$

In Stock, only 4 left!

0

13

Husqvarna 545180808

KIT DRIVESHAFT EDGER

Note: (Incl. decal)

$

$

Not available

14

Husqvarna 530059185

CLAMP ASSIST HANDLE

$4.99

$

In Stock, Qty 6

0

15

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, Qty 5

0

16

Husqvarna 530053012

FASTENER MUD FLAP

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 530071251

KIT MUD FLAP

Note: (Incl. 16)

$

$

Not available

18

Husqvarna 530095125

WHEEL-4"(FRONT)(RUBBER)

$

$

Not available

19

Husqvarna 530015981

BOLT-SHOULDER AXLE

$

$

Not available

20

Husqvarna 530092062

WASHER

$

$

Not available

21

Husqvarna 530015515

LOCKNUT

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 530092059

KNOB

$

$

Not available

23

Husqvarna 530092062

WASHER

$

$

Not available

24

Husqvarna 530015515

LOCKNUT

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 530053009

WHEEL BRKT ADJ

$

$

Not available

26

Husqvarna 530015793

NUT-FLANGE (LH)

$2.49

$

In Stock, Qty 12

0

27

Husqvarna 530016240

WASHER BELLVILLE

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 530015792

WASHER-FLAT.

$5.99

$

In Stock, only 1 left!

0

29

Husqvarna 530053007

BLADE

$

$

Not available

30

Husqvarna 530054623

DUST CUP

$

$

Not available

31

Husqvarna 545044101

KIT - EDGER GUARD

Note: (Incl. decal)

$

$

Not available

32

Husqvarna 545006005

KIT GEARBOX EDGER HUSQ

Note: (Incl. 30,33,34,35)

$

$

Not available

33

Husqvarna 530016312

SCR 10-24 MS LDK PAN PH

$3.49

$

In Stock, only 2 left!

0

34

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

Note: (align)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$3.99

$

In Stock, only 2 left!

0

36

Flexshaft

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

Husqvarna 545146946

MANUAL OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 545074501

DECAL WARNING GUARD

Note: Not Shown

$

$

Not available
