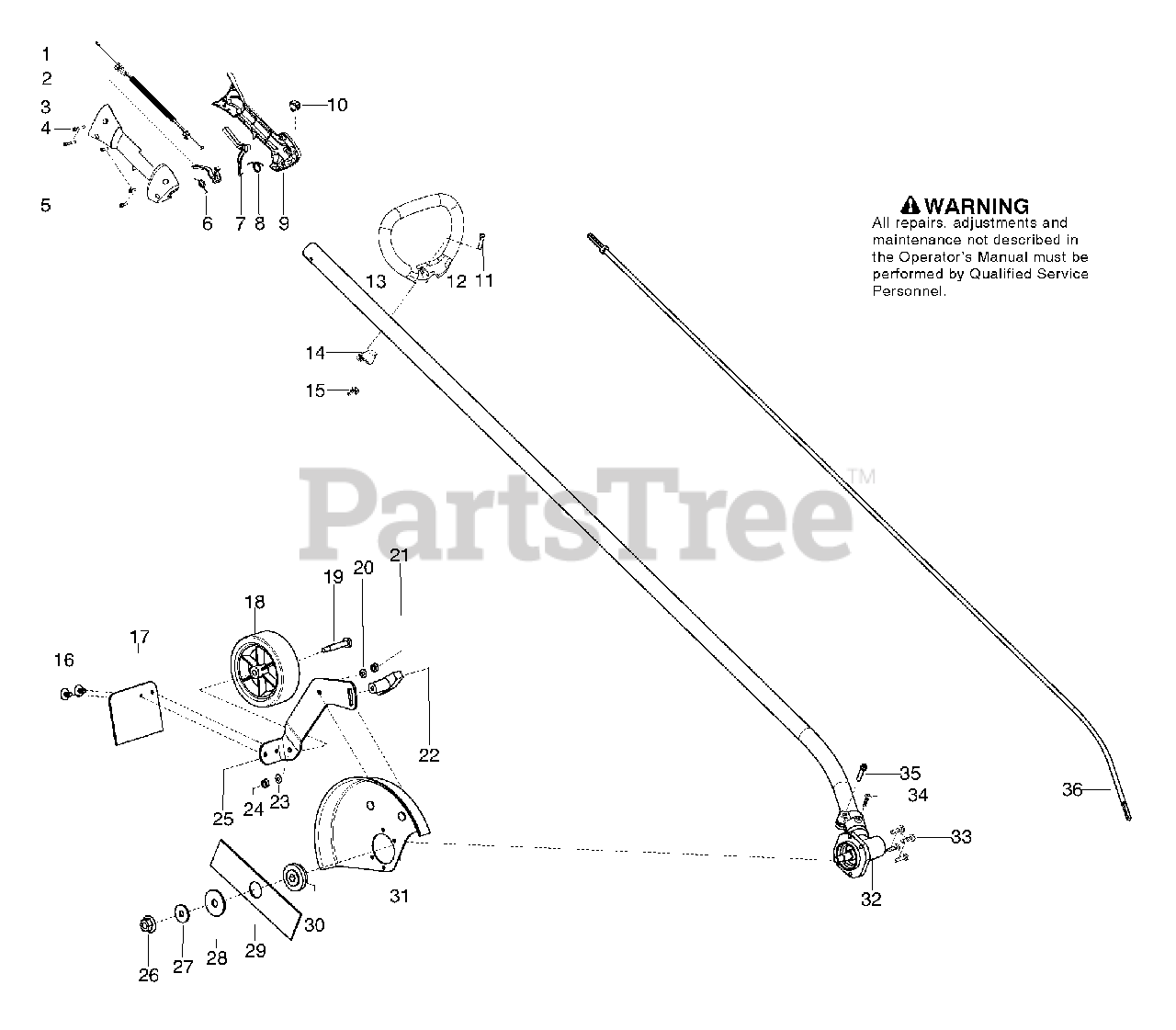

125 E - Husqvarna Handheld Edger (2005-09) Handle & Shaft Assembly Parts Diagram

Handheld Edger

Handle & Shaft Assembly Parts Diagram

  • Title

1

Husqvarna 530150561

Assy-Cable/Wire Harness
(Superseded to 545125301)

$37.99

$

In Stock, Qty 8

0

2

Husqvarna 530059807

Trigger
(Superseded to 545066001)

$

$

Not available

3

Husqvarna 530057855

Housing-Throttle (RH)

$

$

Not available

4

Husqvarna 530016448

Screw

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 530016449

Screw

$6.49

$

In Stock, Qty 20+

0

6

Husqvarna 530016454

Spring-Trigger

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 530059804

Lockout-Throttle

$6.49

$

In Stock, Qty 8

0

8

Husqvarna 545045601

Spring-Lockout

$6.49

$

In Stock, Qty 7

0

9

Husqvarna 530057856

Housing-Throttle (LH)

$

$

Not available

10

Husqvarna 545030601

Kit-Switch
(Superseded to 545049301)

$9.99

$

In Stock, Qty 18

0

11

Husqvarna 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 530150076

Handle-Assist

$12.99

$

In Stock, Qty 5

0

13

Husqvarna 545043801

Kit-Driveshaft Edger

Note: (Incl. decal)

$

$

Not available

14

Husqvarna 530059185

Clamp-Handle

$6.49

$

In Stock, only 3 left!

0

15

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 530053012

Fastener - Mud Flap

$3.99

$

In Stock, only 1 left!

0

17

Husqvarna 530071251

Kit-Mud Flap

Note: (Incl. 16)

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 530095125

Wheel - 4"

$8.99

$

In Stock, only 1 left!

0

19

Husqvarna 530015981

Bolt-Shoulder Axle

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna 530092059

Knob

$9.99

$

In Stock, only 1 left!

0

23

Husqvarna 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 530053009

Bracket-Wheel Adjustment

$12.99

$

Usually ships in 3-10 days

0

26

Husqvarna 530015793

Nut-Flange L.H.

$6.49

$

In Stock, Qty 11

0

27

Husqvarna 530016240

Washer-Belleville Spring

$6.49

$

In Stock, Qty 5

0

28

Husqvarna 530015792

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 530053007

Blade

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 530054623

Dust Cup

$10.99

$

In Stock, only 1 left!

0

31

Husqvarna 545044101

Kit-Edger Guard

Note: (Incl. decal)

$

$

Not available

32

Husqvarna 545006005

Kit-Edger Gearbox

Note: (Incl. 30,33,34,35)

$60.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530016312

Screw

$6.49

$

In Stock, Qty 6

0

34

Husqvarna 530016224

Screw (align)

$4.99

$

In Stock, Qty 5

0

35

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

36

Husqvarna 545007507

Flexshaft

$34.99

$

Usually ships in 3-10 days

0

Husqvarna 530166242

Manual

Note: Not Shown

$

$

Not available

Husqvarna 545074501

Decal-Guard Warning

Note: Not Shown

$

$

Not available
