125 L - Husqvarna String Trimmer (2007-04) Handle & Shaft Assembly Parts Diagram

String Trimmer

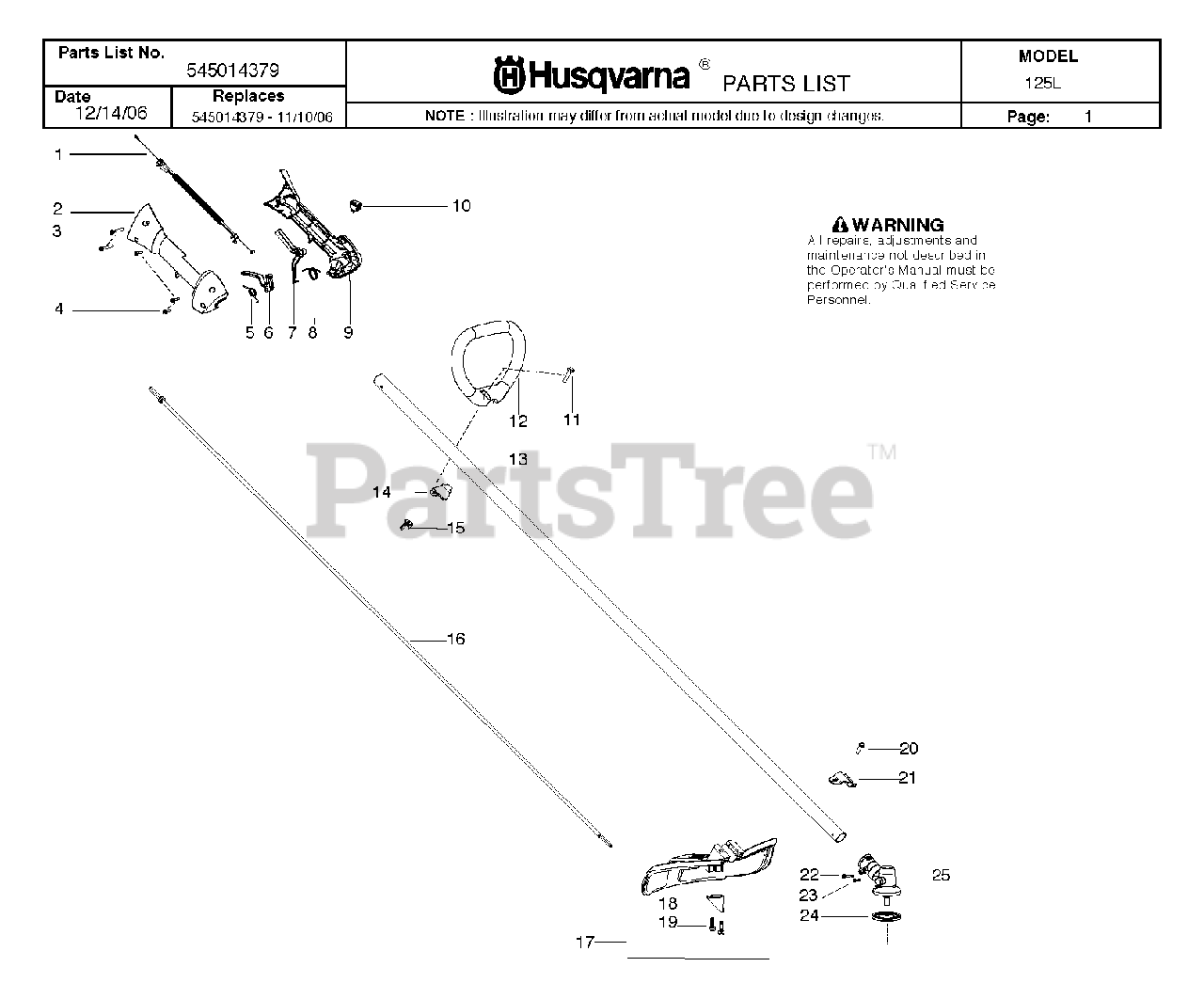

Handle & Shaft Assembly Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

$

$

Not available

2

Husqvarna 545062001

Housing-Throttle

Note: RH

$

$

Not available

3

Husqvarna 530016448

Screw

$6.49

$

In Stock, Qty 20+

0

4

Husqvarna 530016449

Screw

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 530016454

Spring-Trigger

$6.49

$

In Stock, only 3 left!

0

6

Husqvarna 545066001

Trigger

$

$

Not available

7

Husqvarna 530059804

Lockout-Throttle

$6.49

$

In Stock, Qty 8

0

8

Husqvarna 545045601

Spring-Lockout

$6.49

$

In Stock, Qty 7

0

9

Husqvarna 545067001

Housing-Throttle

Note: LH

$

$

Not available

10

Husqvarna 545030601

Kit-Switch
(Superseded to 545049301)

$9.99

$

In Stock, Qty 18

0

11

Husqvarna 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 545042201

Handle-Assist

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 545081009

Kit-Driveshaft SST

Note: Incl. decal

$

$

Not available

14

Husqvarna 530059185

Clamp-Handle

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

16

Flex shaft

$

$

Not available

17

Husqvarna 545030901

Kit-Shield

Note: Incl. 18,19,20

$34.99

$

In Stock, Qty 12

0

18

Husqvarna 530052286

Limiter-Line

$

$

Not available

19

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

20

Husqvarna 530015771

Screw

$6.49

$

In Stock, Qty 6

0

21

Husqvarna 530057554

Bracket-Shield

$6.49

$

In Stock, Qty 11

0

22

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 530016301

Screw

$6.49

$

In Stock, only 4 left!

0

24

Husqvarna 537234901

Driver Disc

$40.99

$

In Stock, only 4 left!

0

25

Husqvarna 530096295

Assy-Gearbox

$80.99

$

In Stock, Qty 10

0

Manual

Note: Not Shown

$

$

Not available

Husqvarna 545047558

MANUAL OPERATORS (EURO VII)

Note: Euro 7; Not Shown

$

$

Not available

Husqvarna 545082914

MANUAL OPERATORS EURO 8 ROW

Note: Euro 8; Not Shown

$

$

Not available

Husqvarna 545082909

MANUAL OPERATORS EURO 9 ROW

Note: Euro 9; Not Shown

$

$

Not available

Husqvarna 545135101

Decal-Warning

Note: Not Shown

$

$

Not available
