125 L - Husqvarna String Trimmer (2009-09) Handle & Controls Parts Diagram

String Trimmer

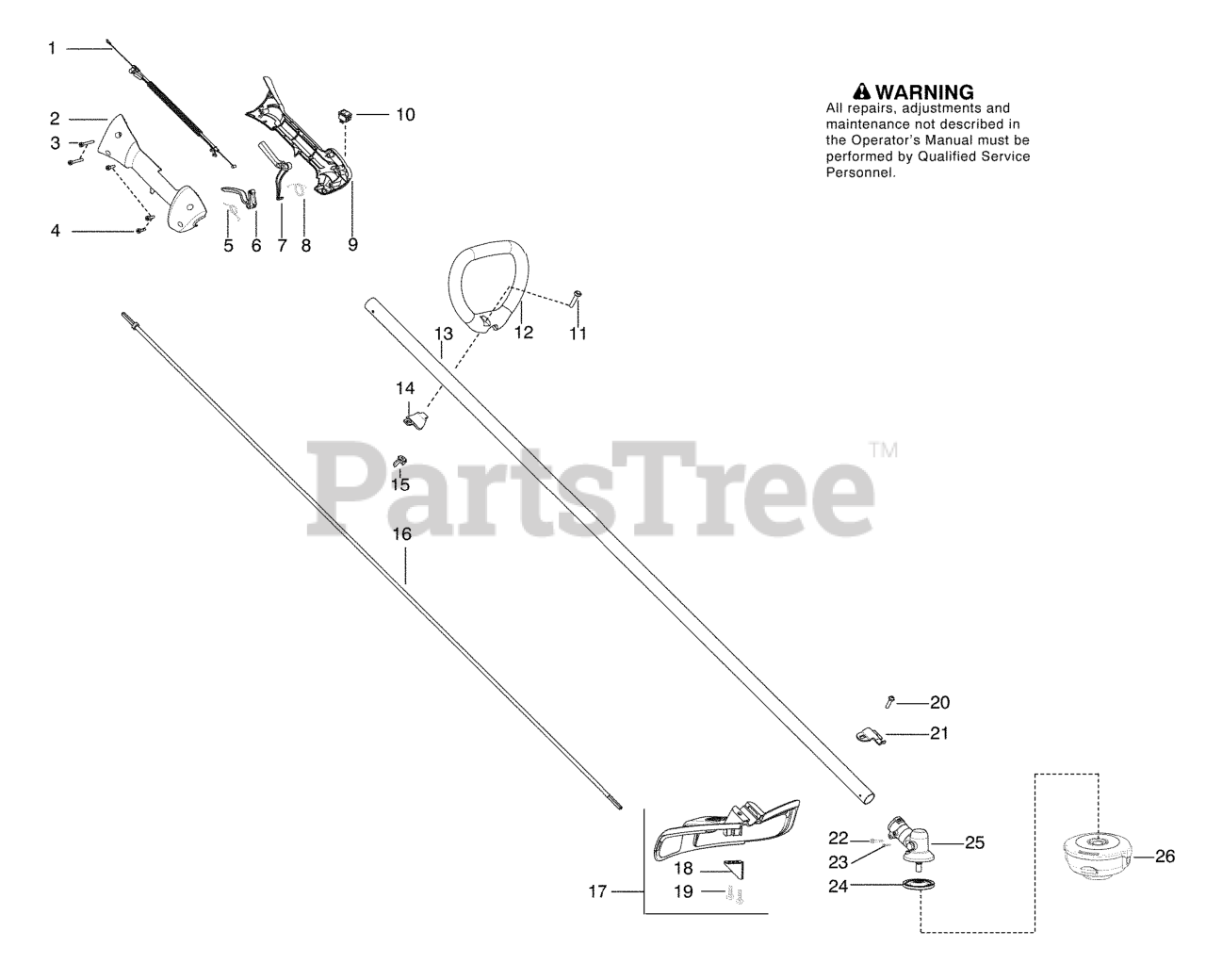

Handle & Controls Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

2

Husqvarna 545062001

HOUSING-THROTTLE RH

$

$

Not available

3

Husqvarna 530016448

SCREW

$3.49

$

In Stock, only 2 left!

0

4

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$3.49

$

In Stock, Qty 14

0

5

Husqvarna 530016454

SPRING TRIGGER

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 545066001

TRIGGER THROTTLE

$

$

Not available

7

Husqvarna 530059804

THROTTLE LOCKOUT

$

$

Not available

8

Husqvarna 545045601

SPRING LOCKOUT

$

$

Not available

9

Husqvarna 545067001

HSG THROTTLE LH

$

$

Not available

10

Husqvarna 545030601

KIT SWITCH
(Superseded to 545049301)

$11.99

$

In Stock, only 4 left!

0

11

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, Qty 11

0

12

Husqvarna 545042201

HANDLE

$20.99

$

In Stock, Qty 5

0

13

Husqvarna 545180807

KIT DRIVESHAFT SST

$

$

Not available

14

Husqvarna 530059185

CLAMP ASSIST HANDLE

Note: (Incl. decal, 21,22,23,25)

$4.99

$

In Stock, Qty 7

0

15

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, Qty 8

0

16

Flex shaft

Note: Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

$

$

Not available

17

Husqvarna 545030901

KIT COBI SHIELD

Note: (Incl. 18,19,20)

$31.99

$

In Stock, Qty 5

0

18

Husqvarna 530052286

Limiter-Line

$

$

Not available

19

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 6

0

20

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$3.49

$

In Stock, only 4 left!

0

21

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.99

$

In Stock, Qty 6

0

22

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$3.49

$

In Stock, only 2 left!

0

23

Husqvarna 545003902

SCREW

$3.49

$

In Stock, Qty 6

0

24

Husqvarna 537234901

DRIVE DISC

$26.99

$

In Stock, Qty 8

0

25

Husqvarna 530096295

ASSY GEARBOX

$43.99

$

In Stock, only 2 left!

0

26

Husqvarna 537338302

T25 10MM LH TRIMMER HEAD
(Superseded to 537338310)

$31.99

$

In Stock, Qty 20+

0

Husqvarna 545146947

MANUAL OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 545059001

DECAL-WARNING

Note: Not Shown

$

$

Not available
