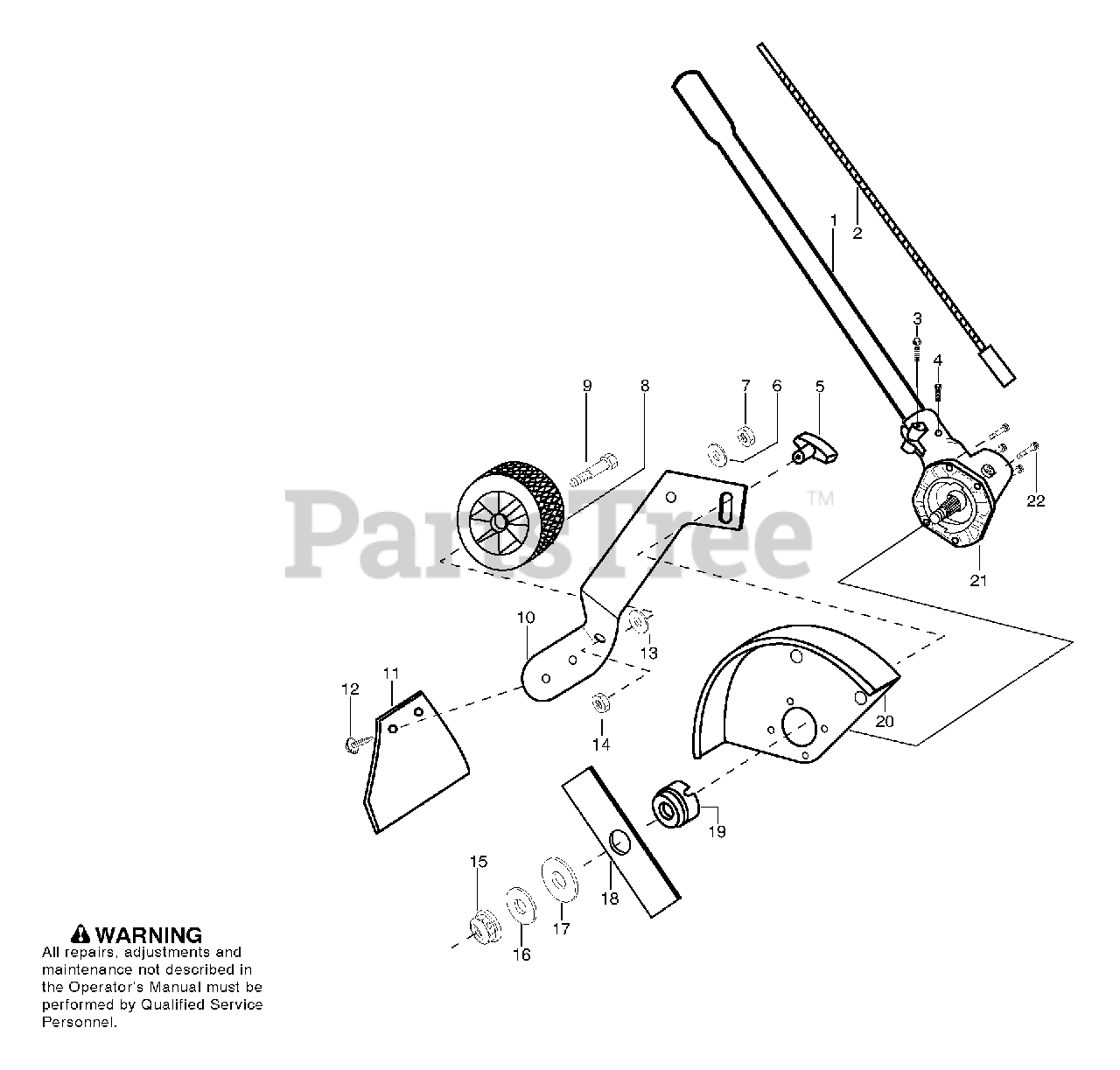

125 LD - Husqvarna String Trimmer (2006-12) Edger Attacment Parts Diagram

String Trimmer

Edger Attacment Parts Diagram

  • Title

1

Husqvarna 545081803

Kit- Driveshaft

$30.99

$

Usually ships in 3-10 days

0

2

Husqvarna 530096218

Flexshaft

$11.99

$

In Stock, only 1 left!

0

3

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

4

Husqvarna 530015775

Screw-Alignment

$6.49

$

In Stock, only 2 left!

0

5

Husqvarna 530092059

Knob

$9.99

$

In Stock, only 1 left!

0

6

Husqvarna 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 530095125

Wheel-4" (rubber)

$8.99

$

In Stock, only 1 left!

0

9

Husqvarna 530015981

Bolt-Shoulder Axle

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 530053009

Bracket-Wheel Adjustment

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530071251

Kit-Mud Flap

Note: (Incl. 12)

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 530053012

Fastener-Mud Flap

$3.99

$

In Stock, only 1 left!

0

13

Husqvarna 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 530015793

Nut-Flange (L.H.)

$6.49

$

In Stock, Qty 11

0

16

Husqvarna 530016240

Washer-Belleville

$6.49

$

In Stock, Qty 5

0

17

Husqvarna 530015792

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530053007

Blade-7.5"

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 530054623

Dustcup

$10.99

$

In Stock, only 1 left!

0

20

Husqvarna 545044101

Kit-Edger Guard

$

$

Not available

21

Husqvarna 545006005

Kit-Edger Gearbox

Note: (Incl. 3,4,19,22)

$60.99

$

Usually ships in 3-10 days

0

22

Husqvarna 530016312

Screw

$6.49

$

In Stock, Qty 6

0

Husqvarna 545082932

Manual

Note: Not Shown

$

$

Currently unavailable

Husqvarna 545042006

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

Husqvarna 545074501

Decal-Guard Warning

Note: Not Shown

$

$

Not available

Husqvarna 530150031

Hanger-Att.(90 deg.)

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

Husqvarna 530031159

Wrench-hex (5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
