125 LD - Husqvarna String Trimmer (2006-12) Pruner Attachment Parts Diagram

String Trimmer

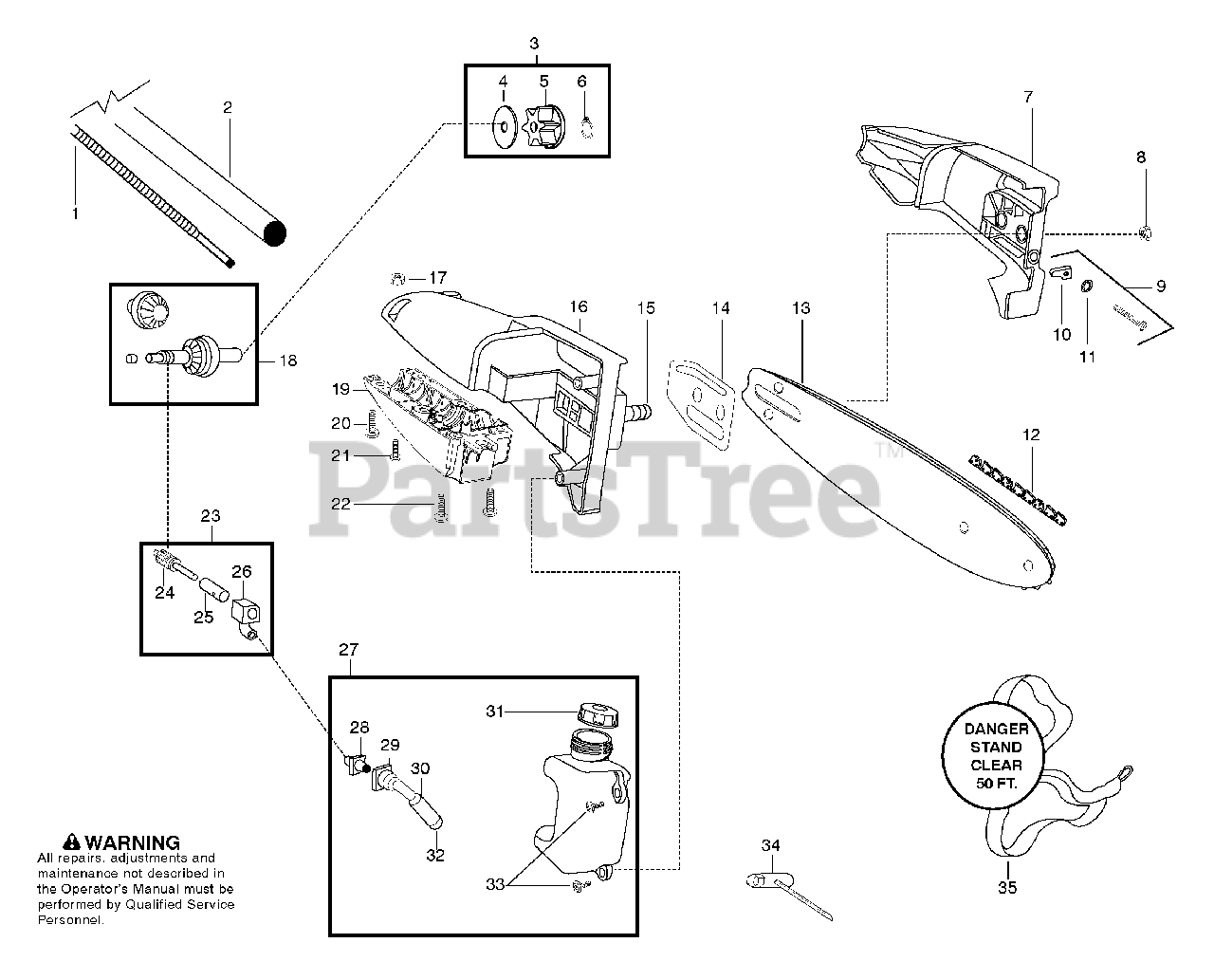

Pruner Attachment Parts Diagram

  • Title

1

Husqvarna 530056570

Flexshaft - lower

$24.99

$

Usually ships in 3-10 days

0

2

Husqvarna 545015702

Assy. - Lower Driveshaft

$40.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530071647

Kit - Sprocket Assy.

Note: (Incl. 4,5,6)

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530056521

Washer

$4.99

$

In Stock, only 4 left!

0

5

Husqvarna 530056520

Sprocket

$9.99

$

In Stock, only 1 left!

0

6

Husqvarna 530056563

Retainer - Sprocket

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 545092901

Assy - Bar Clamp

Note: (Incl. 9)

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530015917

Nut - Bar Mounting

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 530069611

Kit - Bar Adjust

Note: (Incl. 10,11)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 530015826

Pin - Bar Adjust

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 530038593

Retainer - Bar Adjust

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 530051524

Chain - 8"
(Superseded to 585889919)

$

$

Not available

13

Husqvarna 545089501

Bar - 8"

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 530056523

Plate - Bar Pad

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 530016133

Bolt - Bar

$6.49

$

In Stock, only 4 left!

0

16

Husqvarna 545092401

Housing - Upper

Note: (Incl. 15)

$24.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530016284

Nut

$4.99

$

In Stock, only 4 left!

0

18

Husqvarna 530071646

Kit - Gear Assy.

$37.99

$

In Stock, only 1 left!

0

19

Husqvarna 545092301

Housing - Lower

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530016312

Screw

$6.49

$

In Stock, Qty 6

0

21

Husqvarna 530015805

Screw - Alignment

$6.49

$

In Stock, only 1 left!

0

22

Husqvarna 530015886

Screw

$6.49

$

In Stock, Qty 17

0

23

Husqvarna 530071645

Kit - Oil Assy

Note: (Incl. 24,25,26,28)

$

$

Not available

24

Husqvarna 530053764

Assy. - Gear Plunger

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 530053765

Barrel

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 530056522

Block - Oil

$

$

Not available

27

Husqvarna 545096101

Assy - Oil Tank

Note: (Incl. 28,29,30,31,32)

$21.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530056524

Fitting - Oil Line

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 530021160

Intake - Oil Line

$7.49

$

In Stock, only 1 left!

0

30

Husqvarna 530037821

Filter - Oil
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 545095401

Cap - Oil

$7.99

$

Usually ships in 3-10 days

0

32

Husqvarna 530030189

Plug - Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 530015843

Screw

$6.49

$

In Stock, only 2 left!

0

34

Husqvarna 530031163

Wrench - Bar

$9.99

$

In Stock, Qty 17

0

35

Husqvarna 530094408

Strap-Shoulder
(Superseded to 530094417)

$

$

Not available

Husqvarna 545082933

Manual

Note: Not Shown

$

$

Not available

Husqvarna 545042007

Decal-shaft warning

Note: Not Shown

$

$

Not available

Husqvarna 530055395

Clamp harness-lower
(Superseded to 530071605)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 530055392

Clamp harness-upper
(Superseded to 530071605)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 530016406

Screw (harness clamp)

Note: Not Shown

$6.49

$

In Stock, only 1 left!

0

Husqvarna 530150031

Hanger-Att.(90 deg.)

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

Husqvarna 530031159

Wrench-hex (5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
