125 LD - Husqvarna String Trimmer (2006-12) Pruner Attachment Parts Diagram

String Trimmer

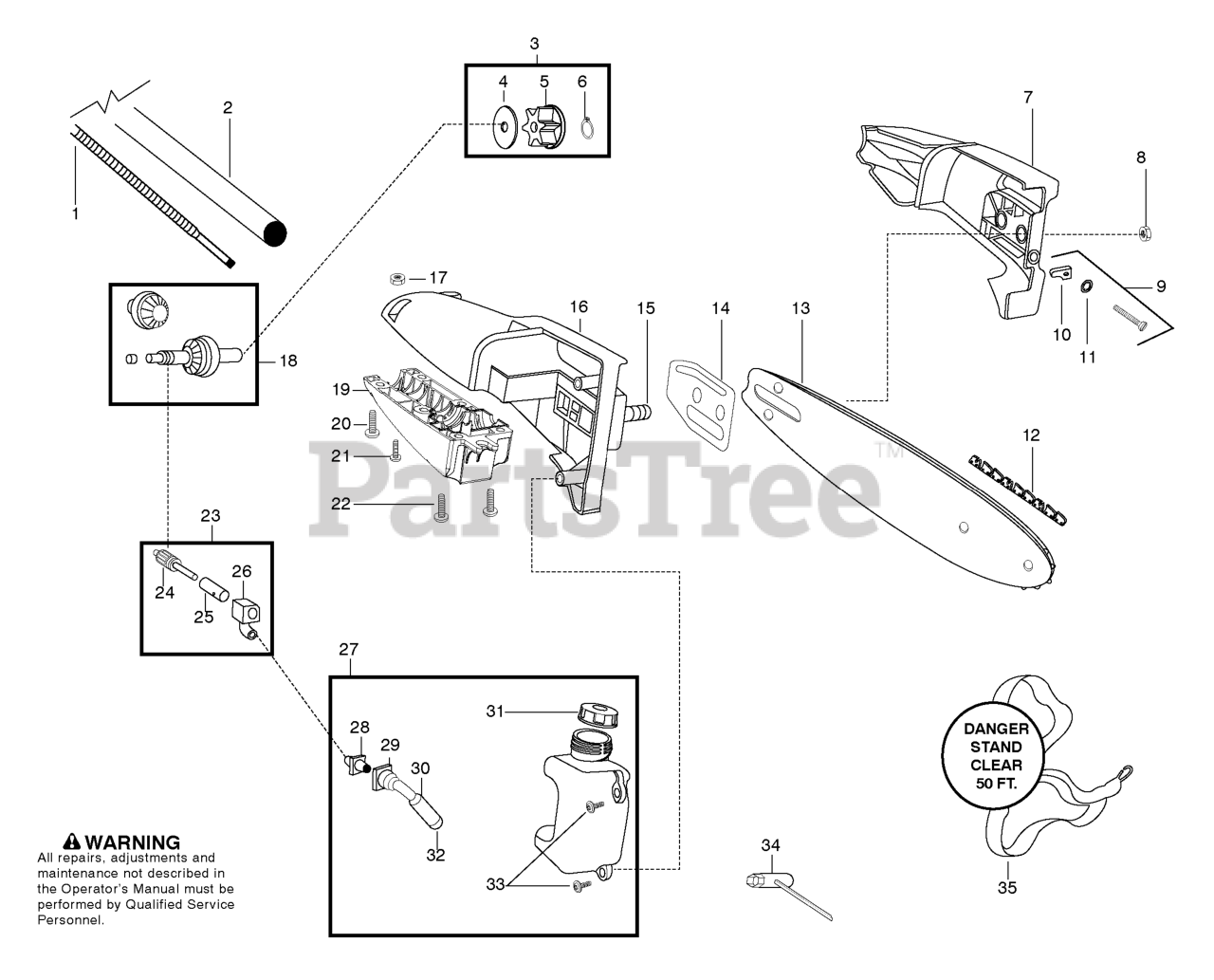

Pruner Attachment Parts Diagram

  • Title

1

Husqvarna 530056570

FLEX SHAFT

$

$

Not available

2

Husqvarna 545015702

DRIVE SHAFT

$

$

Not available

3

Husqvarna 530071647

SPROCKET

Note: (Incl. 4,5,6)

$20.99

$

In Stock, only 4 left!

0

4

Husqvarna 530056521

WASHER

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 530056520

SPROCKET

$6.99

$

In Stock, only 2 left!

0

6

Husqvarna 530056563

RING SPROCKET RETAINER

$3.49

$

In Stock, only 2 left!

0

7

Husqvarna 545092901

BAR CLAMP ASSY - BAR CLAMP (I

Note: (Incl. 9)

$

$

Not available

8

Husqvarna 530015917

BAR NUT

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 530069611

KIT.RETAINER.BAR ADJUSTMENT

Note: (Incl. 10,11)

$9.49

$

In Stock, Qty 20+

0

10

Husqvarna 530015826

ADJUST PIN,BAR 36/41

$5.99

$

In Stock, Qty 16

0

11

Husqvarna 530038593

RETAINER

$3.49

$

In Stock, Qty 11

0

12

Husqvarna 530051524

Chain - 8"
(Superseded to 585889919)

$

$

Not available

13

Husqvarna 545089501

Bar - 8"

$

$

Not available

14

Husqvarna 530056523

PAD BAR PLATE

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 530016133

BOLT

$4.99

$

In Stock, Qty 9

0

16

Husqvarna 545092401

HOUSING HOUSING - UPPER (INCL

Note: (Incl. 15)

$

$

Not available

17

Husqvarna 530016284

NUT,HEX

$3.49

$

In Stock, only 3 left!

0

18

Husqvarna 530071646

KIT GEAR ASSY

$31.99

$

In Stock, only 4 left!

0

19

Husqvarna 545092301

HOUSING HOUSING - LOWER

$

$

Not available

20

Husqvarna 530016312

SCR 10-24 MS LDK PAN PH

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 530015886

SCREW-10-14 X 13/16 (PL

$3.49

$

In Stock, Qty 16

0

23

Husqvarna 530071645

OILER

Note: (Incl. 24,25,26,28)

$28.99

$

In Stock, only 4 left!

0

24

Husqvarna 530053764

ASSY GEAR PLUNGER

$11.99

$

Usually ships in 3-10 days

0

25

Husqvarna 530053765

BARREL

$

$

Not available

26

Husqvarna 530056522

OIL BLOCK

$

$

Not available

27

Husqvarna 545096101

OIL TANK ASSY-OIL TANK (INCL

Note: (Incl. 28,29,30,31,32)

$

$

Not available

28

Husqvarna 530056524

OIL PUMP FITTING

$

$

Not available

29

Husqvarna 530021160

LINE OIL INTAKE

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 530037821

FILTER
(Superseded to 530056533)

$5.99

$

In Stock, Qty 6

0

31

Husqvarna 545095401

OIL CAP

$

$

Not available

32

Husqvarna 530030189

PLUG
(Superseded to 530056533)

$5.99

$

In Stock, Qty 6

0

33

Husqvarna 530015843

SCREW

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 530031163

WRENCH-BAR

$6.99

$

In Stock, only 3 left!

0

35

Husqvarna 530094408

ASSY,SHOULDER STRAP
(Superseded to 530094417)

$

$

Not available

Husqvarna 545082933

MANUAL OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 545042007

DECAL SHAFT WARNING TYPE 1

Note: Not Shown

$

$

Not available

Husqvarna 530055395

CLAMP HARNESS - LOWER
(Superseded to 530071605)

Note: Not Shown

$

$

Not available

Husqvarna 530055392

CLAMP HARNESS - UPPER
(Superseded to 530071605)

Note: Not Shown

$

$

Not available

Husqvarna 530016406

SCREW #10 PLASTITE 1.362

Note: Not Shown

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 530150031

HANGER,ATTACHMENT

Note: Not Shown

$4.99

$

In Stock, only 2 left!

0

Husqvarna 530031159

HEX WRENCH 5/32

Note: Not Shown

$3.49

$

In Stock, only 1 left!

0
