125 LD - Husqvarna String Trimmer (2006-12) Trimmer-Shaft\Tube\Handle Parts Diagram

String Trimmer

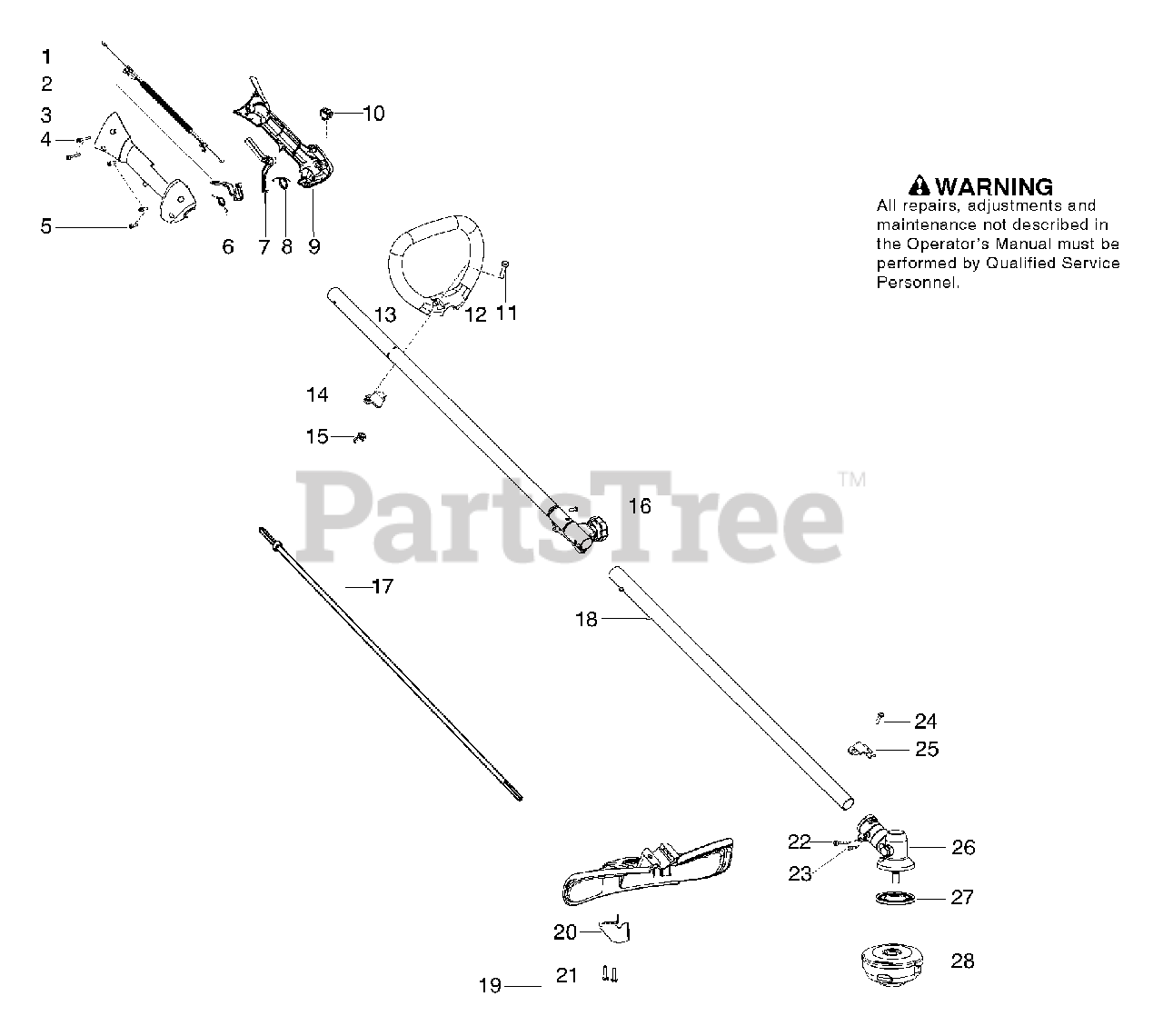

Trimmer-Shaft\Tube\Handle Parts Diagram

  • Title

1

Assy-Cable/Wire Harness

Note: Refer to Service Reference

$

$

Not available

2

Husqvarna 545066001

Trigger

$

$

Not available

3

Husqvarna 545062001

Housing-Throttle (RH)

$

$

Not available

4

Husqvarna 530016448

Screw

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 530016449

Screw

$6.49

$

In Stock, Qty 20+

0

6

Husqvarna 530016454

Spring-Trigger

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 530059804

Lockout-Throttle

$6.49

$

In Stock, Qty 8

0

8

Husqvarna 545045601

Spring-Lockout

$6.49

$

In Stock, Qty 7

0

9

Husqvarna 545067001

Housing-Throttle (LH)

$

$

Not available

10

Husqvarna 545030601

Kit-Switch
(Superseded to 545049301)

$9.99

$

In Stock, Qty 18

0

11

Husqvarna 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 545042201

Handle-Assist

$13.99

$

Usually ships in 3-10 days

0

13

Kit-Driveshaft Upper

Note: (Incl. decal) Refer to Service Reference

$

$

Not available

14

Husqvarna 530059185

Clamp-Handle

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 530096218

Flex-Lower

$11.99

$

In Stock, only 1 left!

0

18

Husqvarna 545081006

Kit-Lower Shaft

$

$

Not available

19

Husqvarna 545030901

Kit-Shield

Note: (Incl. 20,21,24)

$34.99

$

In Stock, Qty 12

0

20

Husqvarna 530052286

Limiter-Line

$

$

Not available

21

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

22

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 530016301

Screw

$6.49

$

In Stock, only 4 left!

0

24

Husqvarna 530015771

Screw

$6.49

$

In Stock, Qty 6

0

25

Husqvarna 530057554

Bracket-Shield

$6.49

$

In Stock, Qty 11

0

26

Husqvarna 530096295

Assy-Gearbox

$80.99

$

In Stock, Qty 10

0

27

Husqvarna 537234901

Driver Disc

$40.99

$

In Stock, Qty 5

0

28

Husqvarna 537338302

Assy-T25 Cutting Head
(Superseded to 537338306)

$30.99

$

In Stock, Qty 20+

0

Husqvarna 545137270

Manual

Note: Not Shown

$

$

Not available

Husqvarna 545096901

Decal-Warning Upper (row)

Note: Not Shown

$

$

Not available

Husqvarna 545096701

Decal-Warning Lower (row)

Note: Not Shown

$

$

Not available
