125 LD - Husqvarna String Trimmer (SN: 19931800001 - 20061000000) BEVEL GEAR & SHAFT Parts Diagram

String Trimmer

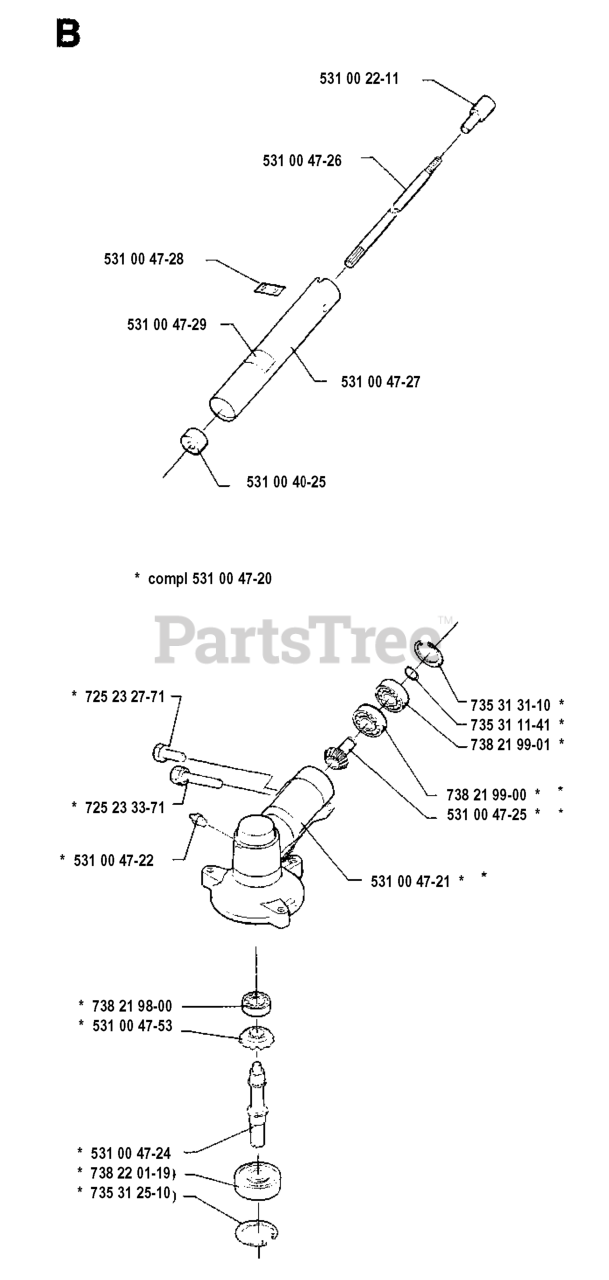

BEVEL GEAR & SHAFT Parts Diagram

  • Title

735 31 11-41

Husqvarna 735311141

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

531 00 47-26

Husqvarna 531004726

INNER SHAFT

$

$

Not available

531 00 40-25

Husqvarna 531004025

BUSHING

$

$

Not available

735 31 31-10

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 4 left!

0

531 00 47-53

Husqvarna 531004753

$

$

Currently unavailable

531 00 22-11

Husqvarna 531002211

ADAPT LOWER

$

$

Not available

531 00 47-27

Husqvarna 531004727

SHAFT TUBE

$

$

Not available

531 00 47-28

Husqvarna 531004728

DECAL

$

$

Not available

725 23 27-71

Husqvarna 725232771

SCREW
(Superseded to 503200003)

$6.49

$

Usually ships in 3-10 days

0

531 00 47-22

Husqvarna 531004722

GREASE FITTING

$

$

Not available

531 00 47-29

Husqvarna 531004729

DECAL

$

$

Not available

735 31 25-10

Husqvarna 735312510

RETAINING RING

$4.99

$

In Stock, only 1 left!

0

725 23 33-71

Husqvarna 7252333-71

Bolt

$

$

Currently unavailable

531 00 47-21

Husqvarna 531004721

GEAR HOUSING

$

$

Not available

738 21 99-01

Husqvarna 738219901

BALL BEARING 609Z

$11.99

$

Usually ships in 3-10 days

0

738 21 99-00

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 1 left!

0

531 00 47-24

Husqvarna 531004724

SHAFT

$

$

Not available

531 00 47-25

Husqvarna 531004725

BEVEL GEAR

$

$

Not available

738 22 01-19

Husqvarna 738220119

BALL BEARING 6201-2RS1
(Superseded to 503252301)

$26.99

$

Usually ships in 3-10 days

0

531 00 47-20

Husqvarna 531004720

ANGLE GEAR COMP

$

$

Not available

738 21 98-00

Husqvarna 738219800

BALL BEARING 8X22X7/608Z

$7.99

$

In Stock, only 1 left!

0
