125 LDX - Husqvarna String Trimmer (SN: 20082200001 - 20093400000) SHAFT & HANDLE Parts Diagram

String Trimmer

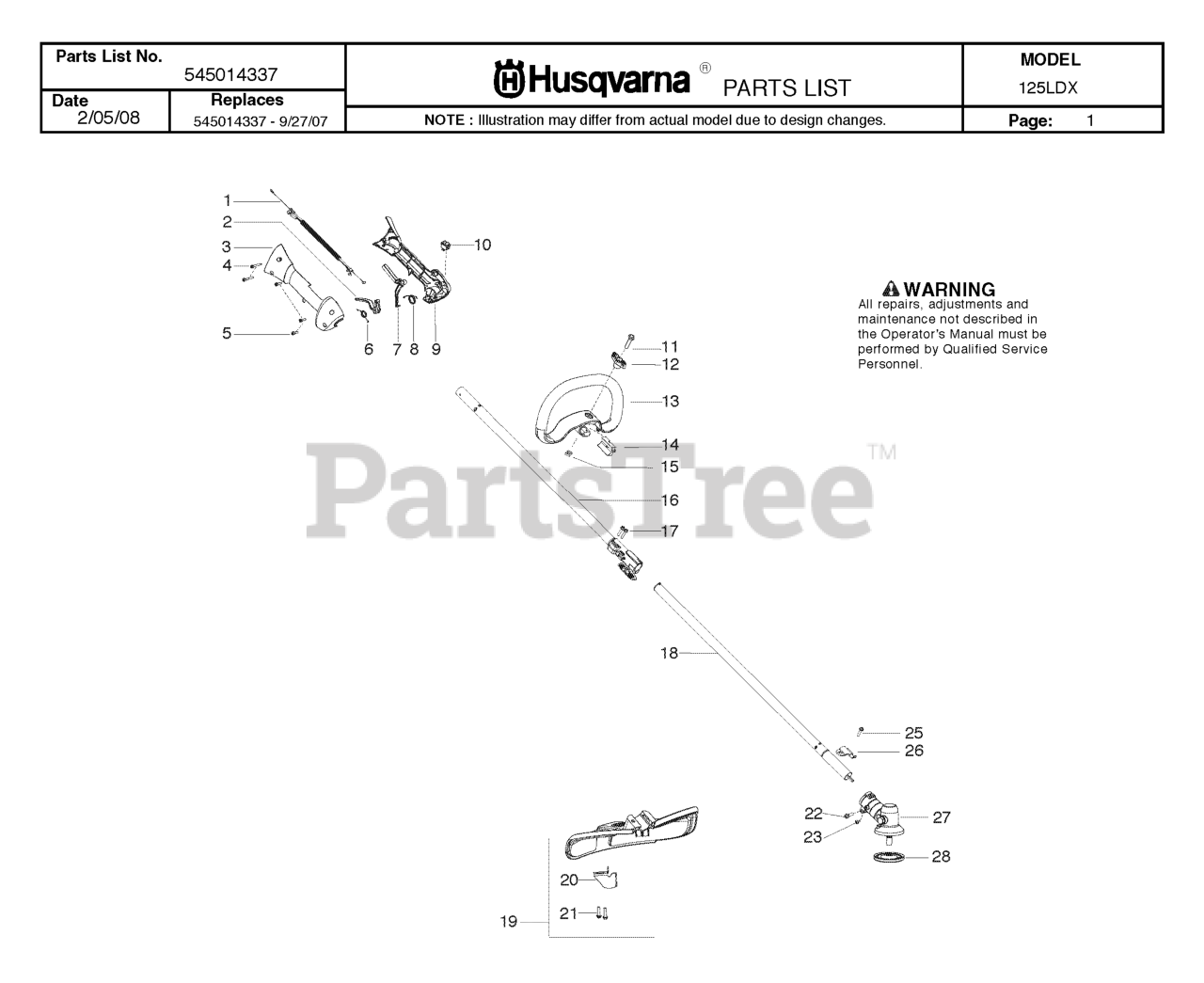

SHAFT & HANDLE Parts Diagram

  • Title

7

Husqvarna 530059804

THROTTLE LOCKOUT

$6.49

$

In Stock, Qty 8

0

15

Husqvarna 502197101

NUT

$8.99

$

In Stock, only 2 left!

0

5

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 545067001

HSG THROTTLE LH

$

$

Not available

18

Husqvarna 545006067

KIT DRIVESHAFT LOWER LDX

$109.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530052286

Limiter - Line

$

$

Not available

26

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.49

$

In Stock, Qty 11

0

19

Husqvarna 545030901

KIT COBI SHIELD

$34.99

$

In Stock, Qty 12

0

23

Husqvarna 545003902

SCREW

$4.99

$

In Stock, Qty 7

0

1

Husqvarna 545125301

ASSY-CABLE WIRE HARNESS

$37.99

$

In Stock, Qty 8

0

27

Husqvarna 530096295

ASSY GEARBOX

$80.99

$

In Stock, Qty 10

0

14

Husqvarna 503940301

SPACER PLASTIC

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 545144303

ASSY LOOP HANDLE
(Superseded to 545180809)

$22.99

$

Usually ships in 3-10 days

0

8

Husqvarna 545045601

SPRING LOCKOUT

$6.49

$

In Stock, Qty 5

0

24

Husqvarna 537338302

T25 10MM LH TRIMMER HEAD
(Superseded to 537338306)

$30.99

$

In Stock, Qty 20+

0

12

Husqvarna 503879001

KNOB

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 545066001

TRIGGER THROTTLE

$

$

Not available

-

Husqvarna 545096701

DECAL SHAFT WARN LOWER ROW

$

$

Not available

4

Husqvarna 530016448

SCREW

$6.49

$

In Stock, Qty 19

0

17

Husqvarna 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

10

Husqvarna 545030601

KIT SWITCH
(Superseded to 545049301)

$9.99

$

In Stock, Qty 17

0

6

Husqvarna 530016454

SPRING TRIGGER

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

25

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

28

Husqvarna 537234901

DRIVE DISC

$40.99

$

In Stock, only 3 left!

0

16

Husqvarna 545006066

DRIVE SHAFT

$

$

Not available

11

Husqvarna 725238051

SCREW M6X50

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

3

Husqvarna 545062001

HOUSING-THROTTLE RH

$

$

Not available
