1250 (2050630) - Cub Cadet Garden Tractor Noise Isolation Parts Diagram

Garden Tractor

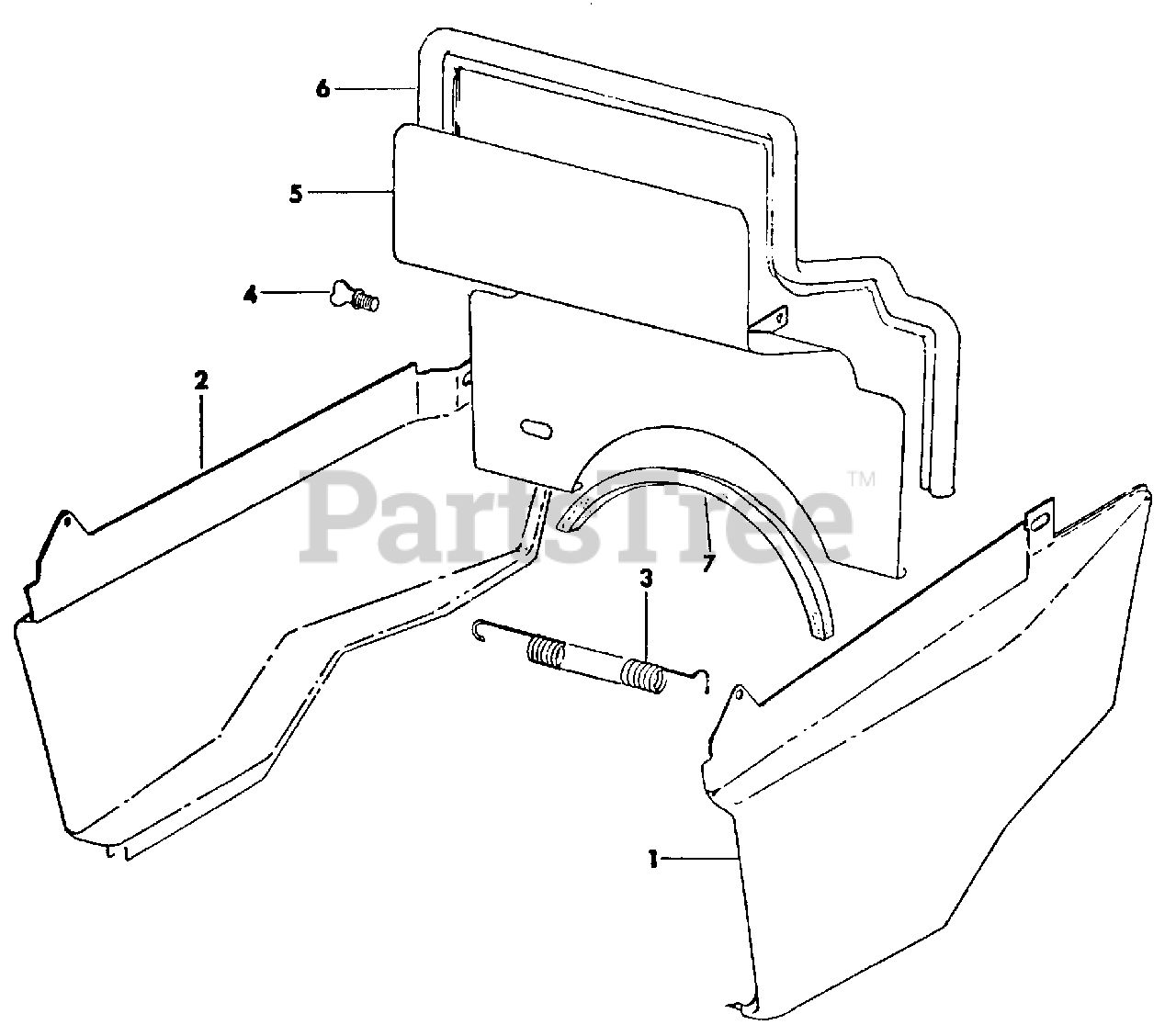

Noise Isolation Parts Diagram

  • Title

1

~NLA

Panel, LH Side

$

$

Not available

2

~NLA

Panel, RH Side

$

$

Not available

3

Cub Cadet IH-106260-C1

Spring, Front
(Superseded to IH-106260-C2)

$

$

Not available

4

Cub Cadet IH-62372-C1

Screw, Thumb
(Superseded to IH-62372-C2)

$

$

Not available

Cub Cadet IH-62373-C1

Washer, Panel

$

$

Not available

5

Cub Cadet IH-106501-C94

Deflector Assy, Heat

$

$

Not available

Screw, 1/4-20 X 1/2 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.99

$

In Stock, Qty 12

0

Cub Cadet 736-0463

Washer, .281 X .625 X .051

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 723-3004

Seal, Heat Baffle

$97.99

$

Usually ships in 3-6 days

0

7

~NLA

Gasket, Foam

$

$

Not available
