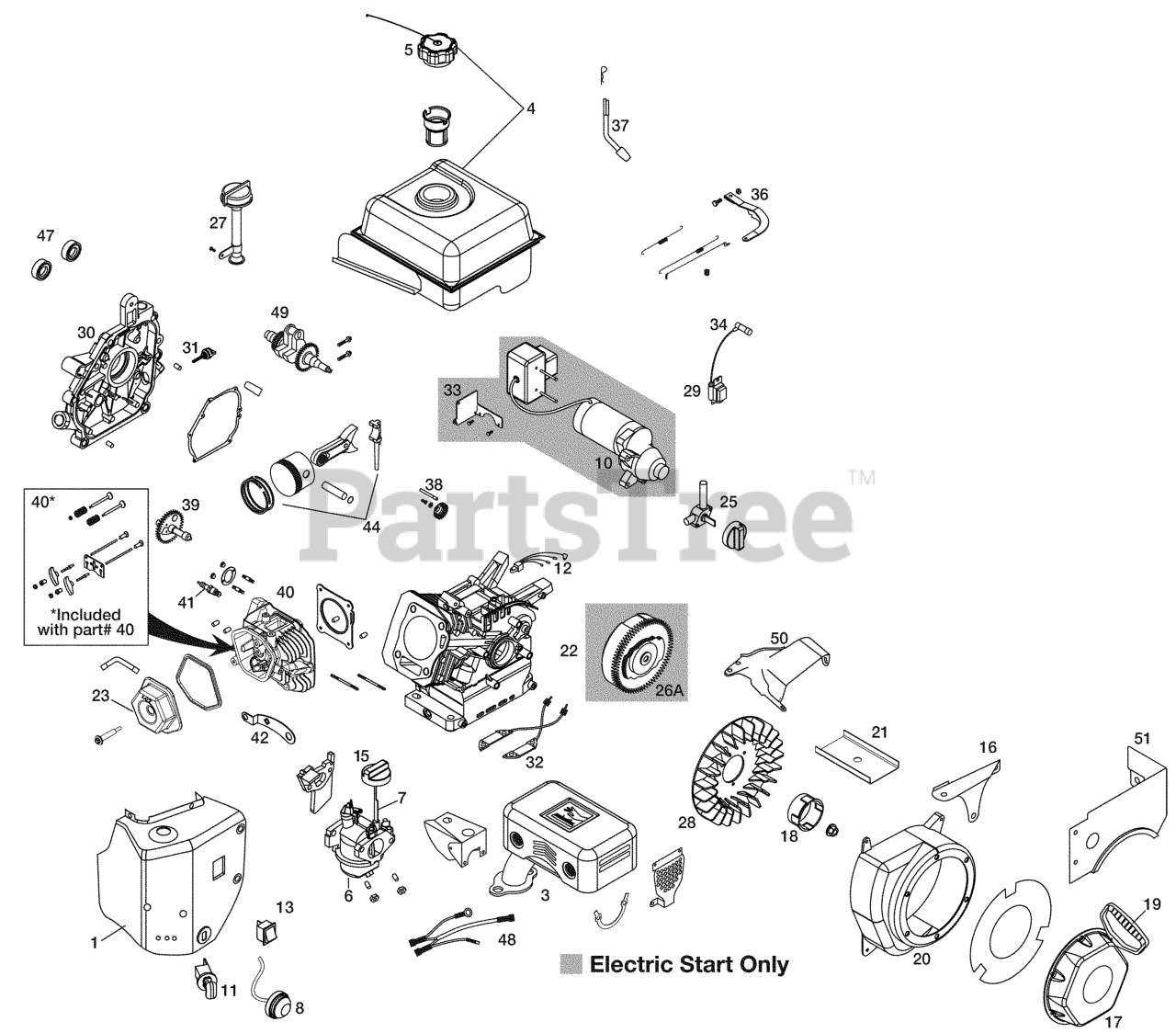

12524 SB (961930046-00) - Husqvarna 24" Snow Blower (2009-06) Engine Parts Diagram

24" Snow Blower

Engine Parts Diagram

  • Title

1

Husqvarna 532429206

HEATER.BOX.ASSY.SNOW(SKSN2100)

$79.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532429208

MUFFLER.ASSY.SNOW(SKSN4200)

$136.99

$

In Stock, only 1 left!

0

4

Husqvarna 532429209

FUEL.TANK.ASSY.SNOW(SKSN4300)

$136.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532429211

FUEL.TANK.CAP.SNOW(SKSN4301)
(Superseded to 532424942)

$20.99

$

In Stock, only 2 left!

0

6

Husqvarna 532429215

CARBURETOR.ASSY.SNOW(SKSN2302)
(Superseded to 585020405)

$

$

Not available

7

Husqvarna 532429216

CHOKE.LVR.CARB-SNOW(SKSN2303)

$

$

Not available

8

Husqvarna 532429218

PRIMER.BULB.ASSY(SKSN4304)
(Superseded to 595079601)

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532429220

ELECTRIC.START.ASSY(SKSN2400.2

$433.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532429221

KEY.SWITCH.ASSY.SNOW(SKSN4401)
(Superseded to 532424954)

$31.99

$

In Stock, only 1 left!

0

12

Husqvarna 532429222

CDI.BOX.ASSY.SNOW(SKSN4404)

$

$

Not available

13

Husqvarna 532429223

ON/OFF.SWITCH.SNOW(SKSN4403)

$22.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.49

$

In Stock, only 2 left!

0

16

Husqvarna 532429225

GOVERNOR.LINK.SHIELD(SKSN2501)

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532429226

RECOIL.START.ASSY.(SKSN2600)
(Superseded to 589524501)

$96.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532429227

STARTER.CUP.SMALLSNOW(SKSN2601

$22.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532429228

STARTER.GRIP.SNOW(SKSN2603.1)
(Superseded to 532443899)

$20.99

$

In Stock, only 2 left!

0

20

Husqvarna 532429229

HOUSING.BLOWER.ASM
(Superseded to 587142701)

$205.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532429231

SHIELD.CYLINDER.SNOW(SK4141010

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532429232

SHIELD.U/FYWHL.CHARG(SKSN4604)

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532429233

VALVE.COVER.SNOW(SK25914500)

$

$

Not available

25

Husqvarna 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$20.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532429288

FLYWHL.ASSY.ELECT.(SK2911701)

$

$

Not available

26A

Husqvarna 532429289

FLYWHL.ASSY.MANUL.(SK2911700)

$136.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532429237

HIGHOIL.FILL.ASSY.KIT(SKSN4911

$11.99

$

In Stock, only 2 left!

0

28

Husqvarna 532429238

FLYWHEEL.FAN

$20.99

$

In Stock, only 2 left!

0

29

Husqvarna 532429240

IGNITION.COIL.ASSY

$

$

Not available

30

Husqvarna 532429241

CRANKCASE.COVER.ASY(SK2913600)

$250.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532429242

NONREMVABLE.OIL.PLUG(SK4143715

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532429243

CHARGING.COIL.AC/DC(SK4141710)

$

$

Not available

33

Husqvarna 532429290

ELECTRIC.START.BRKT(SKSN4405)

$13.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532429291

SPARK.PLUG.BOOT(SK2913800.1)

$

$

Not available

36

Husqvarna 532429248

GOVERNOR.ARM.ASSY.(SKSN2502)

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532429250

GOVERNOR.SHAFT.(SK2913100)

$17.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532429292

GOVERNOR.GEAR.ASSY(SK2912900)

$28.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532429253

CAMSHAFT.LCT.291CC

$102.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532429254

CYLINDER.HEAD.ASSY(SK2911000)

$341.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532429255

SPARK.PLUG(SK2911550)
(Superseded to 532424939)

$15.99

$

In Stock, Qty 7

0

42

Husqvarna 532429257

CDI.BOX.BRKT.SNOW(SKSN4402)

$

$

Not available

44

Husqvarna 532429258

PISTON.AND.ROD.ASSY(SK2911400)

$113.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532429213

SHIELD.VAPOR(SKSN4606)

$36.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532429283

OIL.SEAL.KIT(SK2913900)

$51.99

$

In Stock, only 1 left!

0

48

Husqvarna 532429284

WIRE.HARNESS(SKSN4406)

$34.99

$

In Stock, only 3 left!

0

49

Husqvarna 532429285

CRANKSHAFT.LCT.291CC.SNOW

$

$

Not available

50

Husqvarna 532429286

RP TOP SHIELD
(Superseded to 532435579)

$20.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532429287

FUEL.TANK.SKIRT(SKSN2101)

$56.99

$

Usually ships in 3-10 days

0
