12530 HV (961930072-04) - Husqvarna 30" Snow Blower (2013-08) CHASSIS ENGINE PULLEYS Parts Diagram

30" Snow Blower

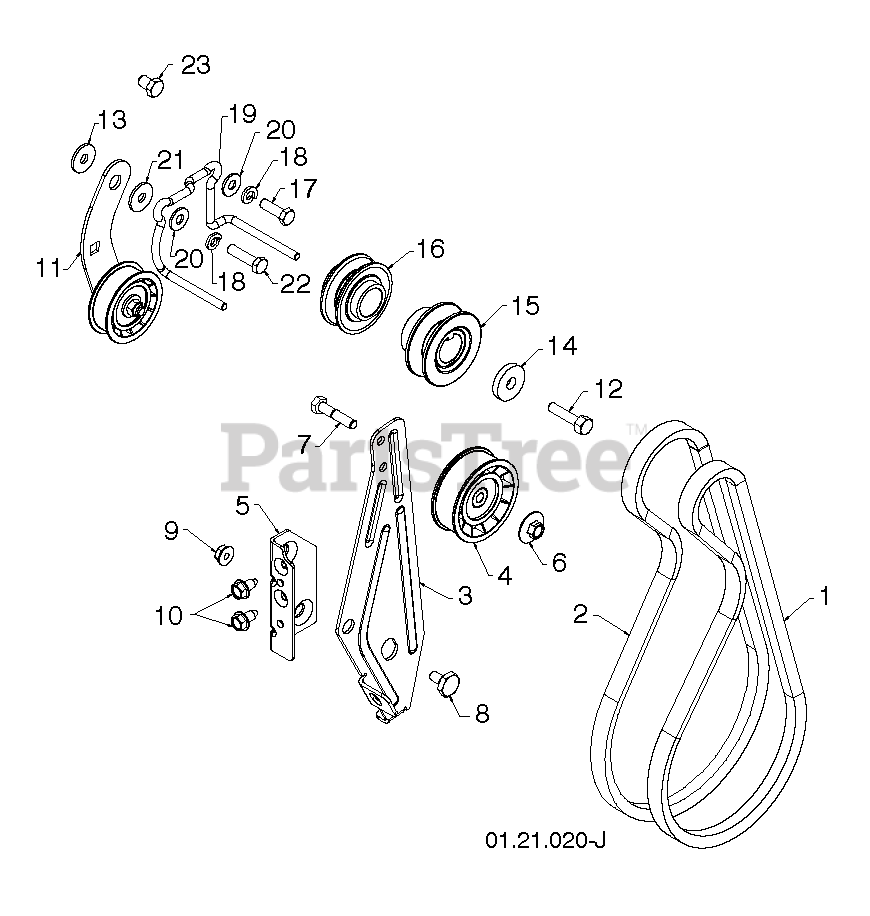

CHASSIS ENGINE PULLEYS Parts Diagram

  • Title

1

Husqvarna 532430784

BELT.V.IMPELLER

$36.99

$

In Stock, only 1 left!

0

2

Husqvarna 532427304

TRACTION BELT

$34.99

$

In Stock, only 2 left!

0

3

Husqvarna 584232402

ARM.IDLER BRAKE.CLEAR.ZINC

$

$

Not available

4

Husqvarna 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585284901

BRACKET.IDLER.PIVOT.ZINC
(Superseded to 532423990)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

$6.49

$

In Stock, Qty 18

0

7

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532424297

BOLT.SHOULDER.1/2X12

$

$

Not available

9

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 9

0

10

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 585238401

ARM.ASM.TRACTION.IDLER.

$44.99

$

In Stock, only 2 left!

0

12

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

14

Husqvarna 819132005

WASHER.400X1.25X5.

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585200201

PULLEY ASM.IMP.2.60

$

$

Not available

16

Husqvarna 585029301

PULLEY.ASM.ENG.TRACTION

$

$

Not available

17

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

18

Husqvarna 810040500

LOCKWASHER
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

19

Husqvarna 585058201

RB GUIDE.BELT.CHAIN.LS.SNOW
(Superseded to 585540501)

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532155415

WASHER.20X8.5

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna 874610520

CAPSCREW.HEXHD.5/16X1.25.

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 874760608

SCREW.3/8-16 X .750 (2 2)

$4.99

$

In Stock, only 1 left!

0
