12533 GC (31AH9576897) - Columbia 33" Snow Thrower (2011)

33" Snow Thrower

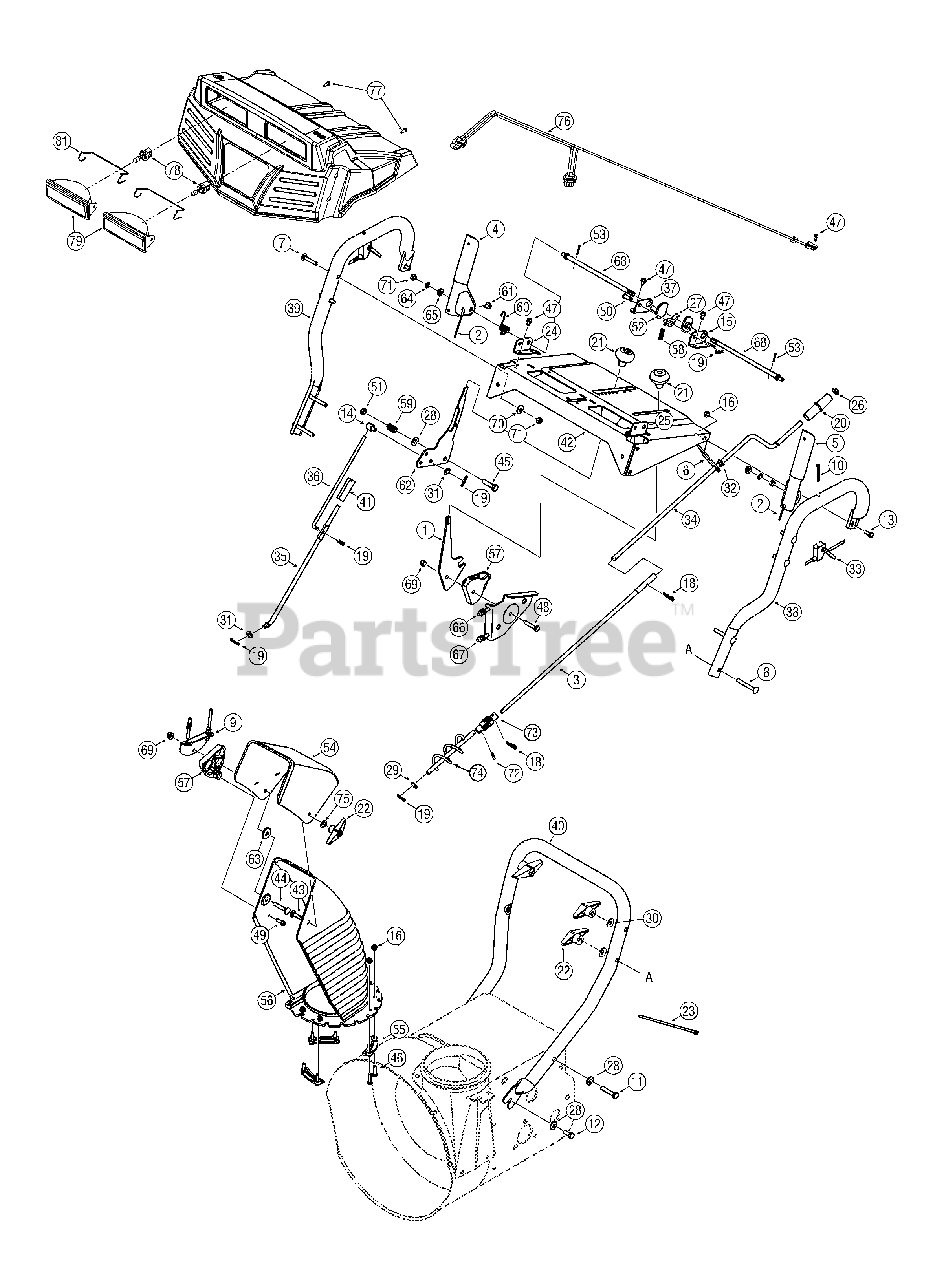

12533 GC (31AH9576897) - Columbia 33" Snow Thrower (2011) > Parts Diagrams (11) > Chute & Handle Panel

  • Title
784-5604A-0637

1

Chute Tilt Handle

Part# 784-5604A-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.90

646-0012

2

Cable Ass’y (Auger/Drive)

Part# 646-0012

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.03

684-04309A

3

Lower Chute Crank Assembly

Part# 684-04309A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $41.69

Variations

POWDER BLACK (0637)

ROD ASSY-CHUTE CRANK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $41.69

705-5218

4

Engage Handle RH Black

Part# 705-5218

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.18

705-5219

5

Engagement Handle LH

Part# 705-5219

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.48

705-5266-0637

6

Black Upper Chute Crank Support

Part# 705-5266-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.71

710-0458

7

Carriage Bolt 5/16-18 x 1.75" Lg.

Part# 710-0458

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.16

710-0572

8

Carriage Bolt 5/16-18 X 2.50

Part# 710-0572

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

784-5594

9

Cable Bracket Chute Tilt

Part# 784-5594

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.15

Variations

OLD CUB YELLOW (0498)

Cable Bracket

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.15

POWDER BLACK (0637)

Cable Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.15

CUB YELLOW-99 (0716)

Cable Bracket

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.15

710-1625

10

Screw, #10-24 x 1.75

Part# 710-1625

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

710-04682

11

Hex Screw 3/8-16 x 2.0 Gr. 5

Part# 710-04682

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

710-3118

12

Hex TT Screw 3/8-16 x .75

Part# 710-3118

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.82

710-3015

13

Hex Cap Bolt 1/4-20 x .75" Lg.

Part# 710-3015

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.90

911-0677

14

Adjustment Ferrule

Part# 911-0677

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.50

784-5679-0637

15

LH Handle Support Brkt. 5/8"

Part# 784-5679-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.48

712-04064

16

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

Part# 712-04064

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.88

914-0101

18

Internal Cotter Pin

Part# 914-0101

OEM Warranty Repair Part for White Outdoor

Not available

914-0104

19

Int. Cotter Pin .072 x 1.13" Lg.

Part# 914-0104

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

720-0201A

20

Knob 1.0 x 3.2

Part# 720-0201A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.73

720-04039

21

Shift Knob

Part# 720-04039

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

920-0284

22

Knob

Part# 920-0284

OEM Warranty Repair Part for White Outdoor

Not available

725-0157

23

Cable Tie

Part# 725-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.74

784-5682-0637

24

RH Handle Support Brkt. 3/8"

Part# 784-5682-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $21.39

784-5681

25

LH Handle Support Brkt. 3/8"

Part# 784-5681

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.82

Variations

POWDER BLACK (0637)

BRACKET-HANDLE SUP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

926-0100

26

Push Nut 3/8" Rod

Part# 926-0100

OEM Warranty Repair Part for White Outdoor

Not available

948-0363

27

Cam Lock Pawl

Part# 948-0363

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.42

736-0105

28

Cupped Washer .375 ID x .870 OD x .063

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

936-0185

29

Flat Washer .406" I.D. x .75" O.D.

Part# 936-0185

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

736-0242

30

Cupped Washer .345 ID x .88 OD x .06

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

936-0275

31

Flat Washer .34 ID x .688 OD x .065

Part# 936-0275

OEM Warranty Repair Part for White Outdoor

Not available

941-0475

32

Plastic Bushing .380 ID

Part# 941-0475

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

746-0950A

33

Steering Trigger

Part# 746-0950A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.69

747-0624-0637

34

Upper Chute Crank Assembly

Part# 747-0624-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $16.95

747-0983A

35

Lower Shift Rod

Part# 747-0983A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.92

747-0997

36

Upper Shift Rod

Part# 747-0997

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $49.07

784-5680-0637

37

RH Handle Support Brkt. 5/8"

Part# 784-5680-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.71

749-0989A-0637

38

Upper Handle LH - Black

Part# 749-0989A-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $74.24

749-0990A-0637

39

Upper Handle RH - Black

Part# 749-0990A-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $71.42

749-0991-0637

40

Lower Handle - Black

Part# 749-0991-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.31

950-0963

41

Connector - Shift Rod

Part# 950-0963

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.44

684-0102A

42

Handle Panel Support Ass’y

Part# 684-0102A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

Variations

OLD CUB YELLOW (0498)

PANEL ASSY:HANDLE

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

PANEL ASSY:HANDLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

MTD/TROY-BILT RED (0638)

PANEL ASSY:HANDLE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

RED METALLIC (0650)

PANEL ASSY:HANDLE

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

OYSTER GRAY (0662)

PANEL ASSY:HANDLE

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

YARDMAN GREEN (0665)

PANEL ASSY:HANDLE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

YARDMAN YELLOW (0674)

PANEL ASSY:HANDLE

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

POLO GREEN (0689)

PANEL ASSY:HANDLE

Part# POLO GREEN (0689)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

CUB YELLOW-99 (0716)

PANEL ASSY:HANDLE

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

SEARS RED (0721)

PANEL ASSY:HANDLE

Part# SEARS RED (0721)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

CRAFTSMAN RED (4044)

PANEL ASSY:HANDLE

Part# CRAFTSMAN RED (4044)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

710-0276

43

Carriage Bolt 5/16-18 x 1.00" Lg

Part# 710-0276

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0458

44

Carriage Bolt 5/16-18 x 1.75" Lg.

Part# 710-0458

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.16

710-0459A

45

Hex Scr 3/8-24 x 1.50

Part# 710-0459A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.15

710-0597

46

Screw 1/4-20 x 1.0

Part# 710-0597

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

710-0599

47

Hex Wash S-Tapp Scr 1/4-20 x .50

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0805

48

Hex Bolt 5/16-18 x 1,50" Lg. Gr. 5

Part# 710-0805 (Superseded to 710-0805A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0895

49

Hex Tapp Scr 1/4 x .75" Lg.

Part# 710-0895

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.63

711-0653

50

Clevis Pin .31 Dia. x 1.0" Lg.

Part# 711-0653

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.69

912-3020

51

Hex Nut 3/8-16 Gr. 5 Nylon

Part# 912-3020

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.42

748-0362

52

Cam Handle Lock

Part# 748-0362

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.82

914-0507

53

Cotter Pin 3/32 x .75

Part# 914-0507

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

731-0846C

54

Upper Chute

Part# 731-0846C

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $36.68

731-0851A

55

Chute Flange Keeper

Part# 731-0851A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

731-0903E

56

Lower Chute

Part# 731-0903E

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $34.84

731-1313C

57

Cable Guide

Part# 731-1313C

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.39

732-0145

58

Compression Spring .62 OD x 6.12" Lg.

Part# 732-0145

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

732-0193

59

Compression Spring .38 ID x .88 Lg

Part# 732-0193

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.31

732-0746

60

Torsion Spring

Part# 732-0746

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.22

935-0199A

61

Rubber Bumper

Part# 935-0199A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.53

784-5619B-0637

62

Shift Lever

Part# 784-5619B-0637

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.68

936-0231

63

Flat Washer .344 ID x 1.125 OD x .125

Part# 936-0231

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

936-0119

64

L-Wash 5/16 ID

Part# 936-0119

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

736-0509

65

Flat Washer (special) .350 sq. x .72 x .134

Part# 736-0509

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.87

946-0902

66

Chute Control Cable 66"

Part# 946-0902

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $34.77

946-0903

67

Chute Control Cable w/clip

Part# 946-0903

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.61

747-0877

68

Cam Rod

Part# 747-0877

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.98

712-04063

69

Hex L-Flanged Nut 5/16-18 Gr. F Nylon

Part# 712-04063

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

936-0159

70

Flat Washer .349 ID x .879 OD x .063

Part# 936-0159

OEM Warranty Repair Part for White Outdoor

Not available

912-3009

71

Hex Patch L-Nut 5/16-18

Part# 912-3009

OEM Warranty Repair Part for White Outdoor

Not available

715-04095

72

Spiral Pin .156 Diam x .80" Lg.

Part# 715-04095

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.52

684-04350

73

Joint Block Ass'y

Part# 684-04350

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.42

684-04308A

74

Chute Crank Assembly

Part# 684-04308A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.50

936-0159

75

Flat Washer .349 ID x .879 OD x .063

Part# 936-0159

OEM Warranty Repair Part for White Outdoor

Not available

725-05151

76

Wire Harness

Part# 725-05151

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $32.84

710-1003

77

Hex Tapp Wash Hd. Scr. #10 x 5/8

Part# 710-1003 (Superseded to 710-04669)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.39

925-1658

78

Bulb #890, 12 V, 27 Watt

Part# 925-1658

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $42.29

925-1672

79

Headlight Housing

Part# 925-1672

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $62.87

731-04069

80

Black Handle Panel

Part# 731-04069

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $57.69

747-1136

81

Retainer

Part# 747-1136

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.29
