12533 GC (31AH9776897) - Columbia 33" Snow Thrower (2014) Impeller Parts Diagram

33" Snow Thrower

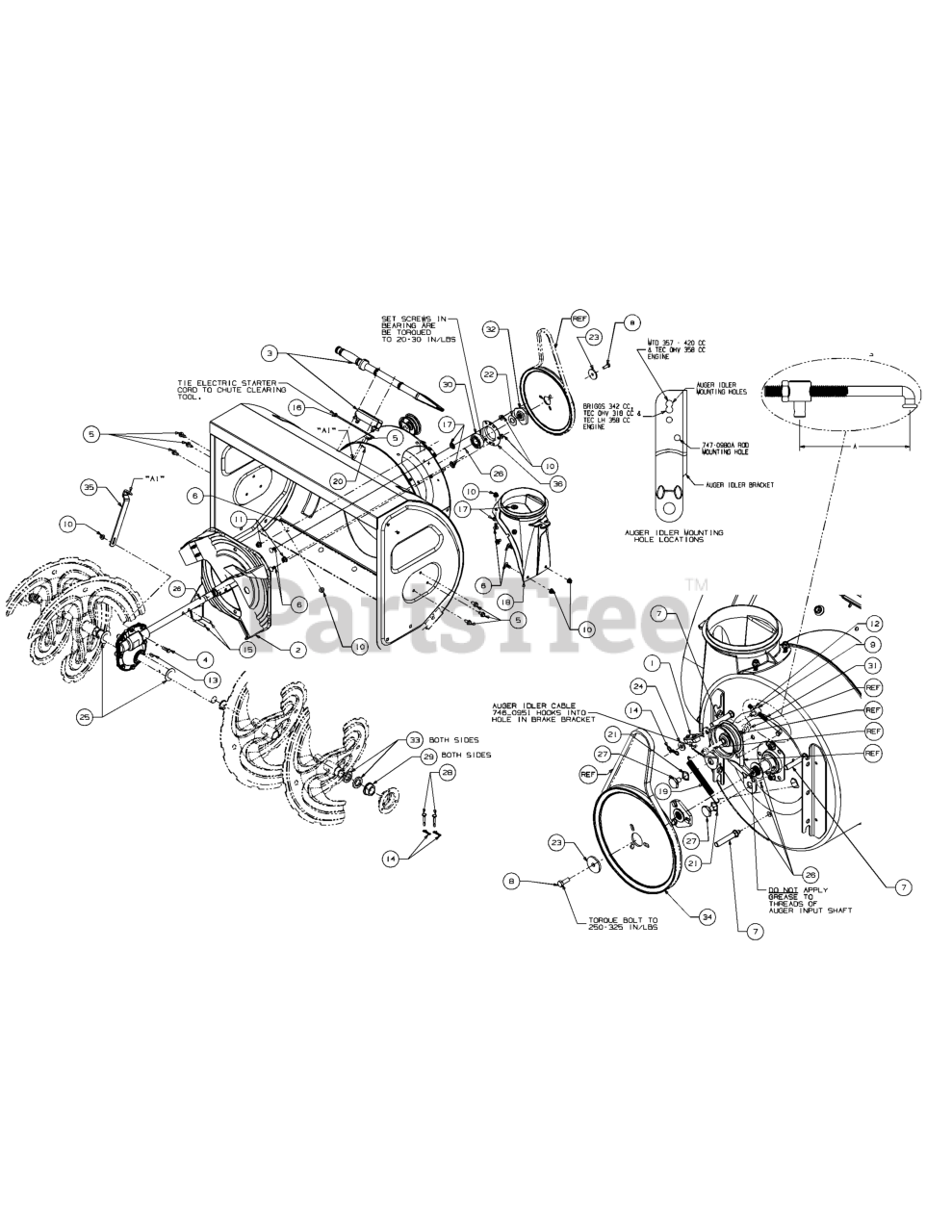

Impeller Parts Diagram

  • Title

1

MTD 918-0281A

Bracket Assy-Br

$60.99

$

In Stock, only 4 left!

0

2

MTD 684-0090B-0637

Impeller Asm-16"

$425.99

$

Usually ships in 3-6 days

0

3

MTD 931-2643

Tool-Cleanout

$18.99

$

In Stock, Qty 7

0

3

MTD 731-2635

Clip-Tool Mtg
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

4

MTD 710-0376

Screw-Hex Cap 5

$3.99

$

In Stock, Qty 17

0

5

MTD 710-04484

Screw

$3.49

$

In Stock, Qty 20+

0

6

MTD 710-0451

Carriage Bolt 5/16-18 X .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-04606A

Screw-5/16-18 Tt

$6.99

$

In Stock, only 2 left!

0

8

MTD 710-1245B

Screw-Hex Cap 5/1

$7.99

$

In Stock, only 4 left!

0

9

MTD 911-0677

Engagement Ferru

$16.99

$

In Stock, only 4 left!

0

10

MTD 712-04063

Nut-Flglk 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04065

Nut-Flange Lk.Nylo

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-3007

Nut-Hex Jam

$6.49

$

In Stock, Qty 6

0

13

MTD 914-0135

Key-Woodruff #91
(Superseded to 714-0135)

$

$

Not available

14

MTD 714-04040

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

15

MTD 915-0118

Pin-Spring Spir
(Superseded to 715-0118)

$

$

Not available

16

MTD 725-0157

Tie-Cable 7"

$3.49

$

In Stock, only 4 left!

0

17

MTD 926-04012

Nut-Push On
(Superseded to 726-04012)

$

$

Not available

18

MTD 731-1696B

Chute Adapter

$84.99

$

In Stock, only 2 left!

0

19

MTD 732-0858

Spring-Extension

$23.99

$

In Stock, Qty 6

0

20

MTD 936-0159

Washer-Fl
(Superseded to 736-0159)

$

$

Not available

21

MTD 736-0174

Washer-Wave .660 I

$6.49

$

Usually ships in 3-6 days

0

22

MTD 736-0188

Washer-Fl-.760Id X

$3.99

$

In Stock, Qty 20+

0

23

MTD 736-0505

Washer-Fl

$5.99

$

In Stock, Qty 6

0

24

MTD 936-3008

Washer-Fl.344

$6.49

$

In Stock, only 1 left!

0

25

MTD 736-3046A

Washer-Flat

$8.49

$

Usually ships in 3-6 days

0

26

N/A

Grease

Note: (purchase locally)

$

$

Not available

27

MTD 938-0281

Screw-Shld .625
(Superseded to 738-0281)

$

$

Not available

28

MTD 738-04155

Shear Pin .25X150

$1.99

$

In Stock, Qty 20+

0

29

MTD 941-0170

Bearing-Flange

$17.99

$

In Stock, only 2 left!

0

30

MTD 941-04024

Bearing-Self-Al

$60.99

$

In Stock, only 1 left!

0

31

MTD 747-0980A

Rod-Auger Idler

$44.99

$

Usually ships in 3-6 days

0

32

MTD 748-04067A

Pulley-Adapter .75

$24.99

$

Usually ships in 3-6 days

0

33

MTD 950-04020

Use 950-04020 Spacer

$11.99

$

In Stock, only 1 left!

0

34

MTD 756-04244A

Pulley-Auger 10.0

$56.99

$

Usually ships in 3-6 days

0

35

MTD 790-00264A-0637

Bracket-A

$18.99

$

Usually ships in 3-6 days

0

36

MTD 05244B

Bearing Housing

$22.99

$

In Stock, only 2 left!

0
