12579 - Troy-Bilt Hiller/Furrower Attachment MAIN ASSEMBLY Parts Diagram

Hiller/Furrower Attachment

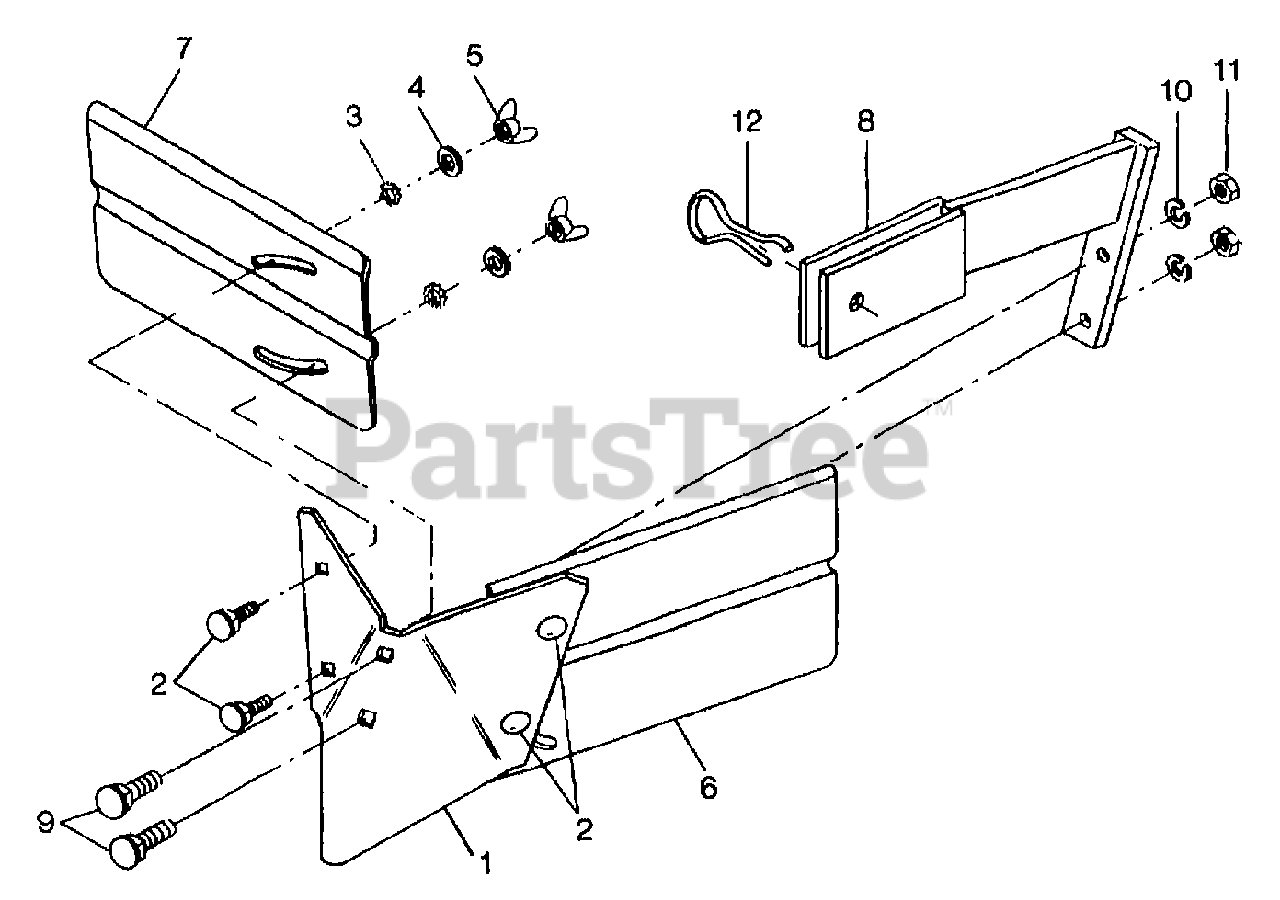

MAIN ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 1900771001

BLADE-HILLER/FURROWER

$69.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP

$

$

Not available

3

Troy-Bilt 1177548

WASHER-LK .312 EXT TOOTH
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

5

Troy-Bilt 9824

NUT-WING/LK 5/16-18 ZP
(Superseded to GW-9824)

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1900773001

WING-HILLER/FURROWER LH

$42.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1900774001

WING-HILLER/FURROWER RH

$53.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1900772001

BRKT-HILLER/FURROWER
(Superseded to GW-2636)

$175.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 9725

BOLT-CARR 3/8-16X1.5 ZP
(Superseded to 710-0431)

$4.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

12

MTD 9318

PIN-CLINCH .312DIA ZP

$

$

Not available

Troy-Bilt 12579

HILLER/FURROWER-SM FRAME

$

$

Currently unavailable
