12586 - Troy-Bilt Dozer/Snow Blade & Bumper Kit Complete MAIN ASSEMBLY Parts Diagram

Dozer/Snow Blade & Bumper Kit Complete

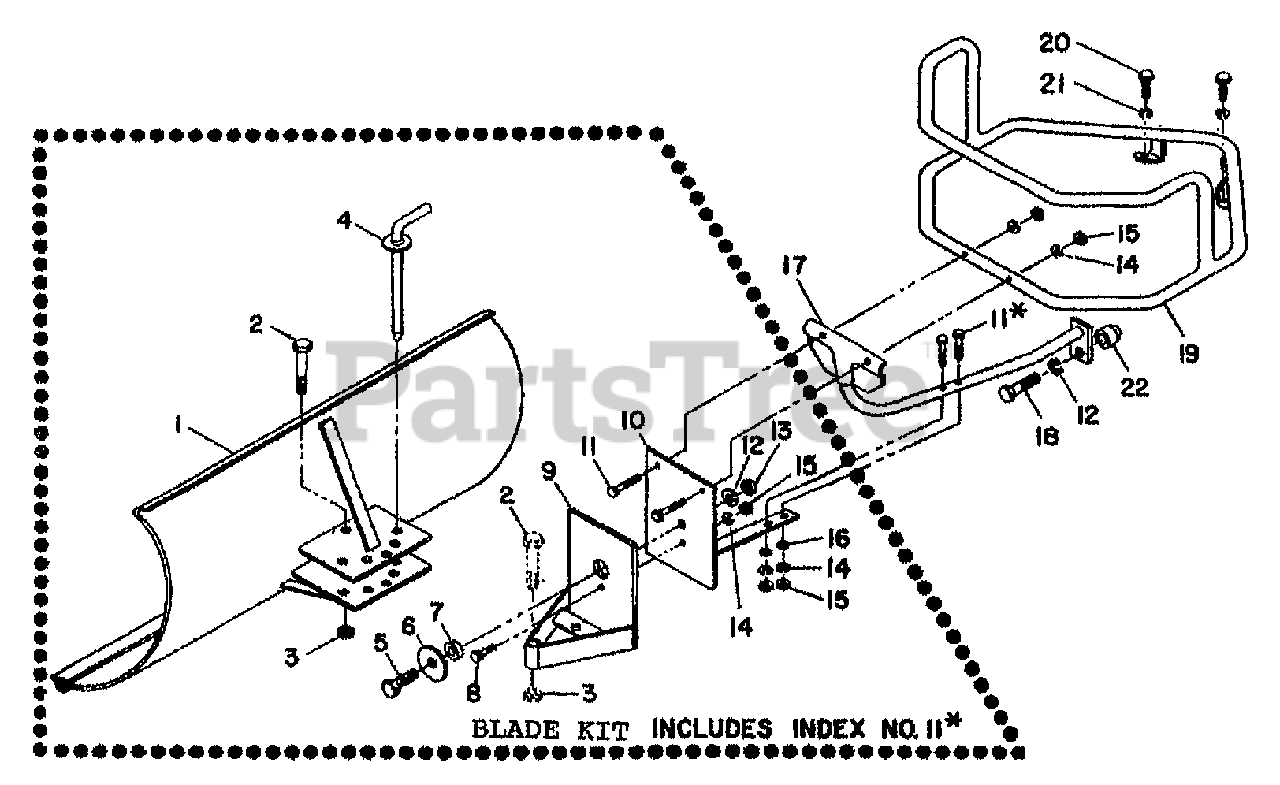

MAIN ASSEMBLY Parts Diagram

  • Title

1

MTD 1160

BLADE-DOZER PAINTED
(Superseded to GW-1160)

$

$

Not available

2

Troy-Bilt 1100057

SCR-HH 1/2-13X3.0 G5
(Superseded to 710-0182A)

$7.49

$

In Stock, only 2 left!

0

3

Troy-Bilt 1110110

NUT-H/LK 1/2-13
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 1161

INDEX PIN-DOZER PNT
(Superseded to GW-1158)

$

$

Not available

5

Troy-Bilt 1100064

SCR-HH 1/2-13X1.5 G5 ZP
(Superseded to 710-3181)

$6.49

$

In Stock, only 1 left!

0

6

MTD 9905

WASHER-PLAIN 1/2 ZP

$

$

Not available

7

MTD 1416

BUSHING-.75X.51X.41

$

$

Not available

8

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

9

MTD 1909773010

BRKT-SWIVEL PNT

$

$

Not available

10

MTD 1909774010

BRKT-MOUNTING T/B PNT

$

$

Not available

11

Troy-Bilt 1100779

SCR-HH 5/16-18X1.75
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 1186233

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

17

Troy-Bilt 1910730001

BRACE-BOTTOM

$77.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1909765

SCR-HH 1/2-13X1.5 G5 ZP
(Superseded to 710-3181)

$6.49

$

In Stock, only 1 left!

0

19

Troy-Bilt 1910731001

GUARD-BUMPER WRAP-AROUND

$200.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 1909748

SPACER-1.0X.546X.5

$3.49

$

Usually ships in 3-6 days

0
