12597 RB (960610341-00) - Poulan Pro Lawn Tractor (2011-12) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

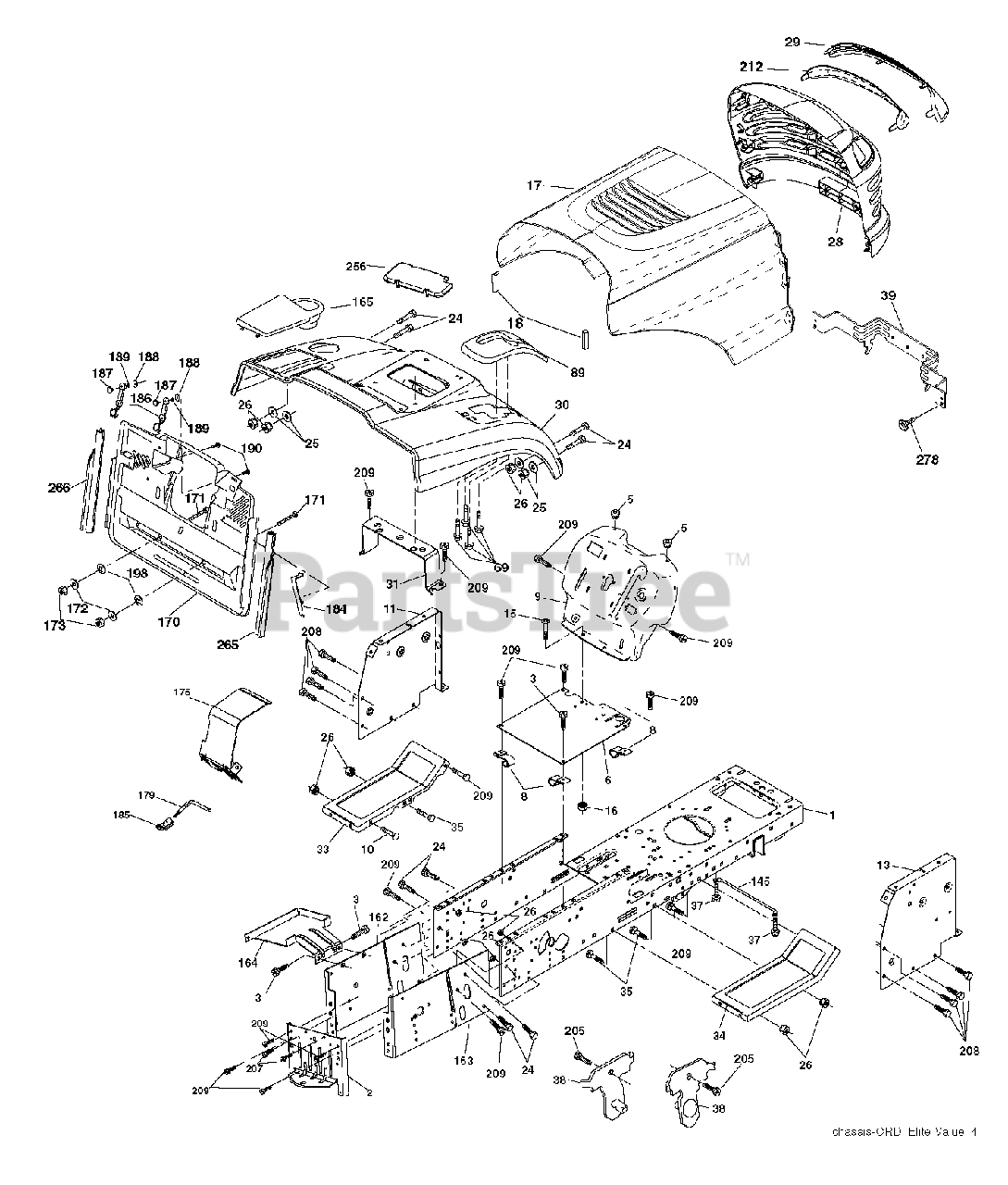

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Poulan 532174620

CHASSIS
(Superseded to 174620)

$136.99

$

Usually ships in 3-10 days

0

2

Poulan 532180384

(Superseded to 583101001)

$

$

Not available

3

Poulan 817060612

(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Poulan 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, Qty 5

0

6

Poulan 532184419

(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

8

Poulan 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532194688

FENDER LT SH
(Superseded to 532194672)

$28.99

$

Usually ships in 3-10 days

0

10

Poulan 872140608

(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

$11.99

$

Usually ships in 3-10 days

0

13

Poulan 532186952

(Superseded to 532186946)

$20.99

$

Usually ships in 3-10 days

0

15

Poulan 874180512

SCREW

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 873510500

(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Poulan 532190085

BOOT.STEERING.STEALTH

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 12

0

24

Poulan 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 532186706

HOOD.PNT.STL.ELITE
(Superseded to 532441532)

$102.99

$

Usually ships in 3-10 days

0

29

Poulan 532185846

LENS GRILL VALUE BAR LT CLEAR
(Superseded to 532185741)

$14.99

$

Usually ships in 3-10 days

0

30

Poulan 532197344

FENDER.PNT.CRD.MS-417.2005
(Superseded to 532441530)

$122.99

$

Usually ships in 3-10 days

0

31

Poulan 532165156

BRACKET SUPPORT FENDER
(Superseded to 165156)

$

$

Not available

33

Poulan 532185545

FOOTREST.RH.VGT
(Superseded to 532182508)

$27.99

$

Usually ships in 3-10 days

0

34

Poulan 532185546

$

$

Not available

35

Poulan 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 532181748

(Superseded to 583117401)

$9.99

$

Usually ships in 3-10 days

0

39

Poulan 532407807

BRACKET PIVOT

$26.99

$

Usually ships in 3-10 days

0

69

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

89

Poulan 532197339

CONSOLE.CRD.AUTO.BLACK

$14.99

$

Usually ships in 3-10 days

0

145

Poulan 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

162

Poulan 532180382

(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

163

Poulan 532180383

(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

164

Poulan 532165605

SUPPORT
(Superseded to 165605)

$

$

Not available

165

Poulan 532181356

$8.99

$

Usually ships in 3-10 days

0

170

Poulan 532199488

$

$

Not available

171

Poulan 872140620

BOLT
(Superseded to 596337801)

$3.99

$

In Stock, Qty 20+

0

172

Poulan 819132016

(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

173

Poulan 873510600

NUT **

$6.49

$

Usually ships in 3-10 days

0

175

Poulan 532188203

(Superseded to 583707801)

$24.99

$

Usually ships in 3-10 days

0

179

Poulan 532188202

(Superseded to 583170601)

$27.99

$

Usually ships in 3-10 days

0

184

Poulan 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$4.99

$

Usually ships in 3-10 days

0

185

Poulan 532441416

KNOB.BRAKE.PARKING.ROD

$7.49

$

Usually ships in 3-10 days

0

186

Poulan 532160793

LATCH ASSY

$

$

Not available

187

Poulan 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

188

Poulan 819061216

WASHER

$4.99

$

In Stock, Qty 20+

0

189

Poulan 810071000

LOCKWASHER

$4.99

$

In Stock, Qty 20+

0

190

Poulan 871081010

SCREW

$6.49

$

Usually ships in 3-10 days

0

198

Poulan 532168937

NUT

$4.99

$

In Stock, only 1 left!

0

205

Poulan 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

207

Poulan 817670508

SCREW, 5/16-18 X 1/2

$6.49

$

In Stock, only 2 left!

0

208

Poulan 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

209

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

212

Poulan 532183550

NO LONGER AVAILABLE
(Superseded to 583126601)

$12.99

$

Usually ships in 3-10 days

0

256

Poulan 532181361

$3.99

$

Usually ships in 3-10 days

0

265

Poulan 532185704

(Superseded to 583146701)

$21.99

$

Usually ships in 3-10 days

0

266

Poulan 532185703

(Superseded to 583146601)

$21.99

$

Usually ships in 3-10 days

0

278

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

--

Poulan 532005479

PLUG BUTTON T

$4.99

$

Usually ships in 3-10 days

0
