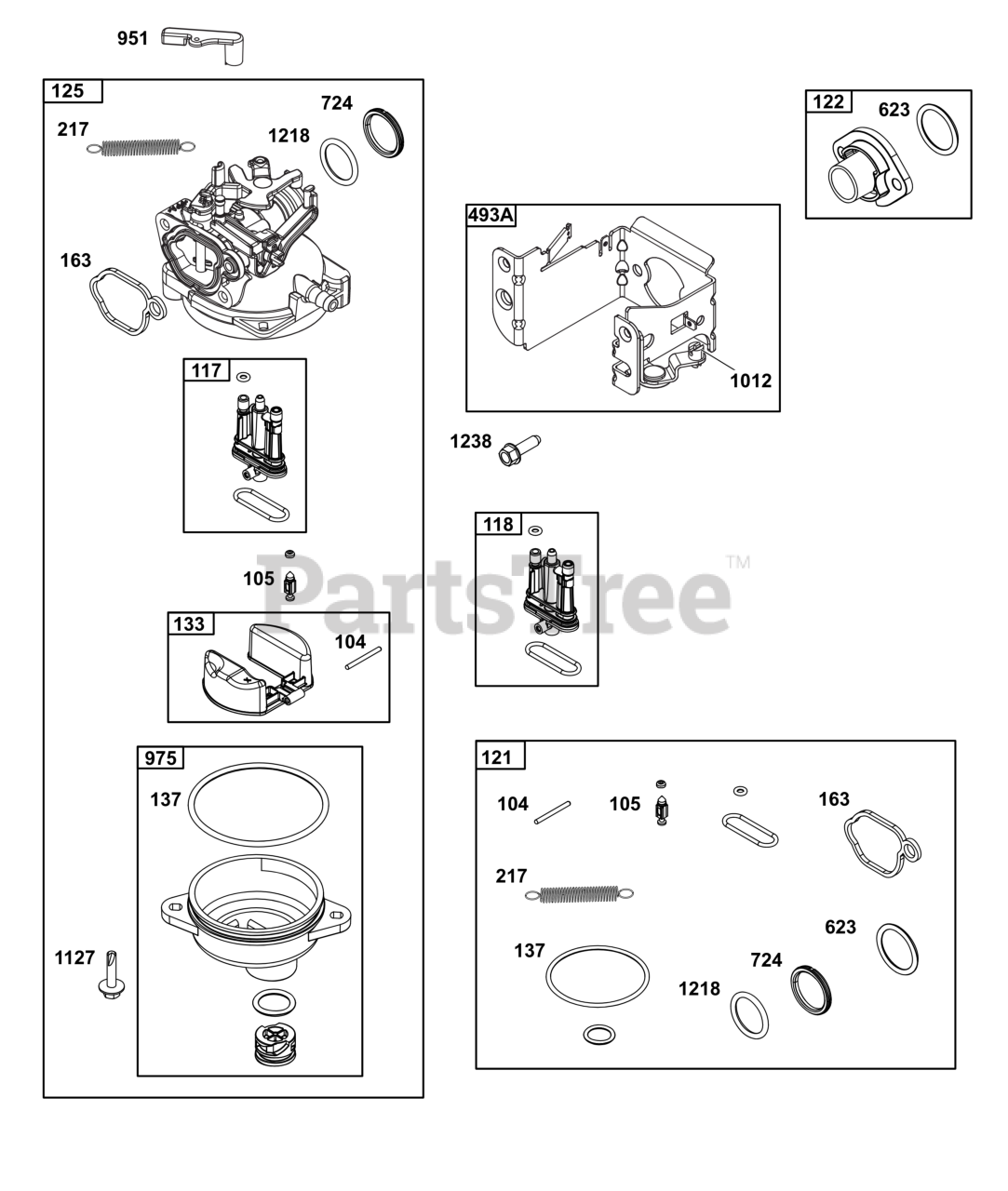

125P02-0085-F1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

Carburetor Group Parts Diagram

  • Title

104

Briggs & Stratton 590558

PIN, Float Hinge

$4.99

$

In Stock, only 2 left!

0

105

Briggs & Stratton 594581

VALVE, Float Needle

$14.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 597331

JET, Main

Note: (Standard)

$18.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 597332

JET, Main

Note: (High Altitude)

$18.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 594636

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$35.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 590549

SPACER, Carburetor

$11.99

$

In Stock, Qty 19

0

125

Briggs & Stratton 597327

CARBURETOR

$72.99

$

In Stock, Qty 6

0

133

Briggs & Stratton 591120

FLOAT, Carburetor

$15.99

$

In Stock, Qty 8

0

137

Briggs & Stratton 594633

GASKET, Float Bowl

$16.99

$

In Stock, only 4 left!

0

163

Briggs & Stratton 799580

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 20+

0

217

Briggs & Stratton 590740

SPRING, Choke Return

$9.49

$

In Stock, Qty 11

0

493A

Briggs & Stratton 597308

VALVE, Throttle

$17.99

$

Usually ships in 2-12 days

0

623

Briggs & Stratton 799581

SEAL, O-Ring

Note: (Carburetor Spacer)

$5.49

$

In Stock, Qty 20+

0

724

Briggs & Stratton 697478

RETAINER, Seal

$5.49

$

In Stock, only 4 left!

0

951

Briggs & Stratton 591104

LEVER, Choke

$11.99

$

In Stock, only 3 left!

0

975

Briggs & Stratton 594632

BOWL, Float

$19.99

$

In Stock, Qty 6

0

1012

Briggs & Stratton 797926

RETAINER, Link

$9.99

$

In Stock, only 2 left!

0

1127

Briggs & Stratton 590554

SCREW

Note: (Float Bowl To Carburetor Body)

$4.49

$

In Stock, only 2 left!

0

1218

Briggs & Stratton 270344S

SEAL, O-Ring

Note: (Carburetor)

$3.49

$

In Stock, Qty 6

0

1238

Briggs & Stratton 590562

SCREW

Note: (Carburetor Spacer)

$3.49

$

In Stock, Qty 6

0
