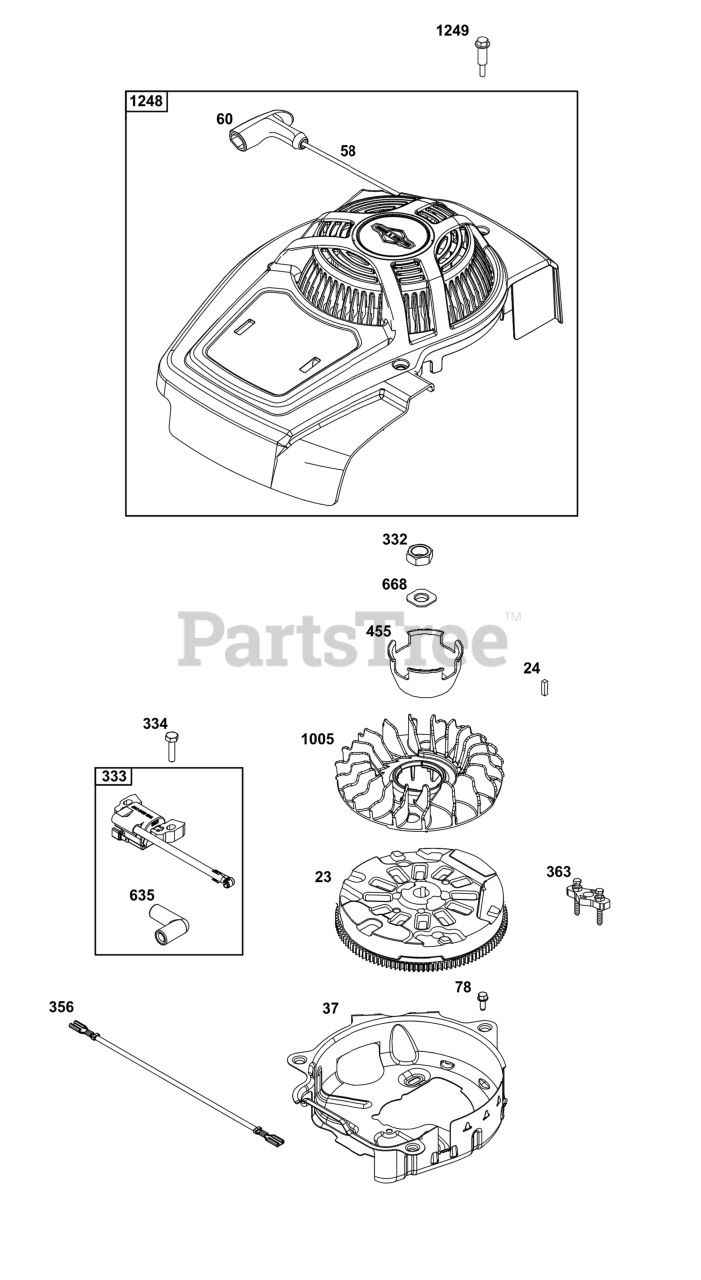

125P02-0085-F1 - Briggs & Stratton Vertical Engine Flywheel/Ignition/Starter Group Parts Diagram

Vertical Engine

Flywheel/Ignition/Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 597277

FLYWHEEL

$191.99

$

Usually ships in 2-12 days

0

24

KEY, Flywheel

Note: (Part information located in Crankshaft Group.)

$

$

Not available

37

Briggs & Stratton 595290

HOUSING, Blower

$42.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 591108

ROPE, Starter

$8.49

$

In Stock, Qty 18

0

60

Briggs & Stratton 281434S

GRIP, Starter Rope

$3.99

$

In Stock, only 2 left!

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$4.49

$

In Stock, Qty 11

0

332

Briggs & Stratton 690662

NUT

Note: (Flywheel)

$6.49

$

In Stock, only 4 left!

0

333

Briggs & Stratton 595291

ARMATURE, Magneto

$52.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 793454

SCREW

Note: (Magneto Armature)

$4.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 597293

WIRE, Stop

$5.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$28.99

$

In Stock, only 2 left!

0

455

Briggs & Stratton 593960

CUP, Flywheel

$11.99

$

In Stock, Qty 7

0

635

BOOT, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

668

Briggs & Stratton 590546

SPACER

$3.99

$

In Stock, Qty 11

0

1005

Briggs & Stratton 597278

FAN, Flywheel

$28.99

$

In Stock, only 1 left!

0

1248

Briggs & Stratton JUMPTO1248

BLOWER HOUSING/REWIND

Note: (Part information located in Blower Housing Group.)

$

$

Currently unavailable
