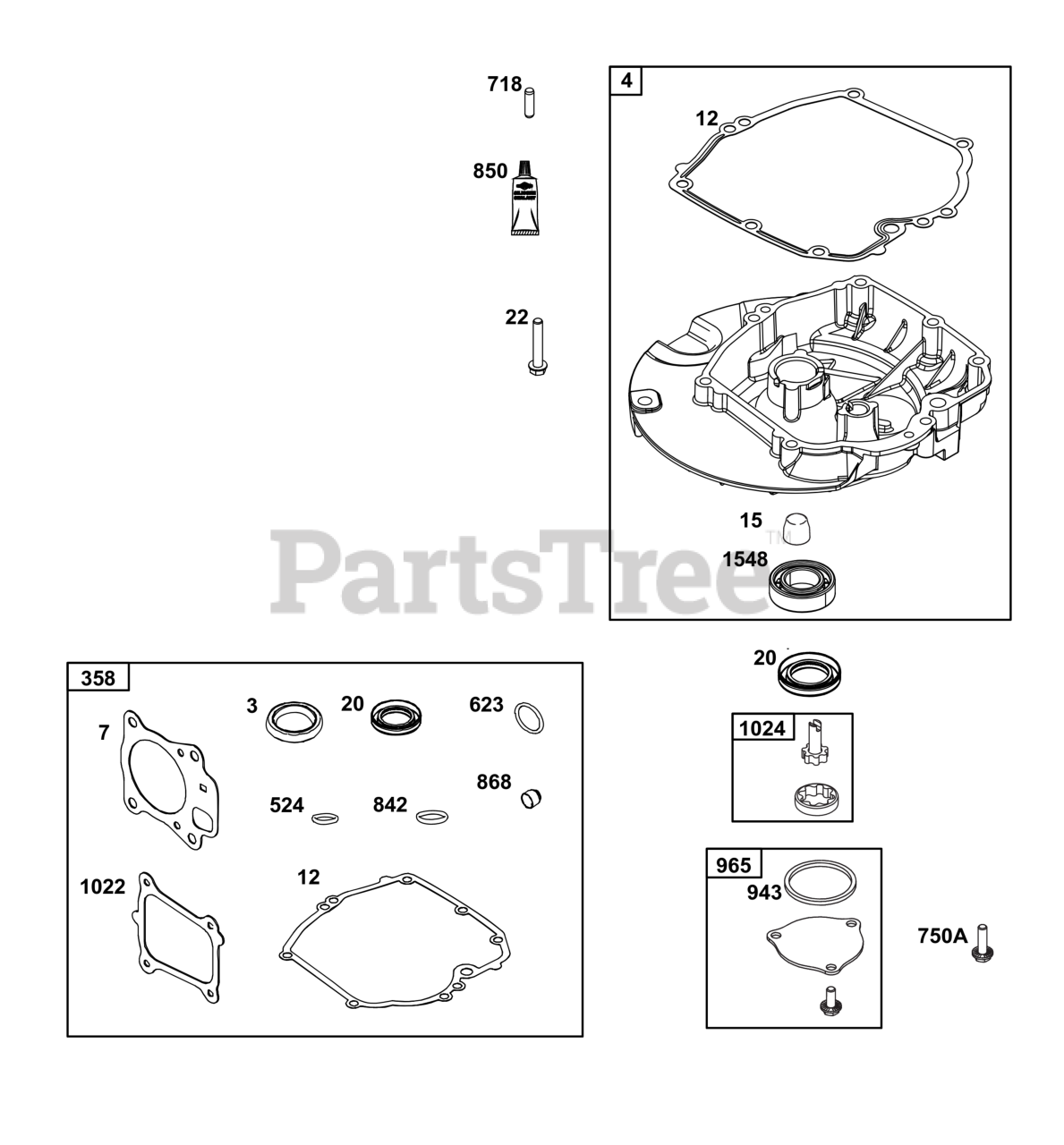

125P42-0031-H5 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump Group Parts Diagram

Vertical Engine

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

4

Briggs & Stratton 592941

SUMP, Engine

$130.99

$

Usually ships in 2-12 days

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 692232

GASKET, Crankcase

$6.49

$

In Stock, Qty 16

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

$6.49

$

In Stock, only 3 left!

0

20

Briggs & Stratton 399781S

SEAL, Oil

Note: (PTO Side)

$8.49

$

In Stock, Qty 13

0

22

Briggs & Stratton 691092

SCREW

Note: (Crankcase Cover/Sump)

$4.49

$

Usually ships in 2-12 days

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

524

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

623

SEAL, O-Ring

Note: (Part information located in Carburetor Group.)

$

$

Not available

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

750A

Briggs & Stratton 691147

SCREW

Note: (Oil Pump Cover) (#10-32x.45)

$4.49

$

Usually ships in 2-12 days

0

842

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, only 4 left!

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

943

Briggs & Stratton 692514

SEAL, O-Ring

$6.49

$

Usually ships in 2-12 days

0

965

Briggs & Stratton 692507

COVER, Oil Pump

$9.49

$

Usually ships in 2-12 days

0

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1024

Briggs & Stratton 692508

PUMP, Oil

$43.99

$

Usually ships in 2-12 days

0

1548

Briggs & Stratton 798538

BEARING, Ball

$33.99

$

In Stock, only 1 left!

0
