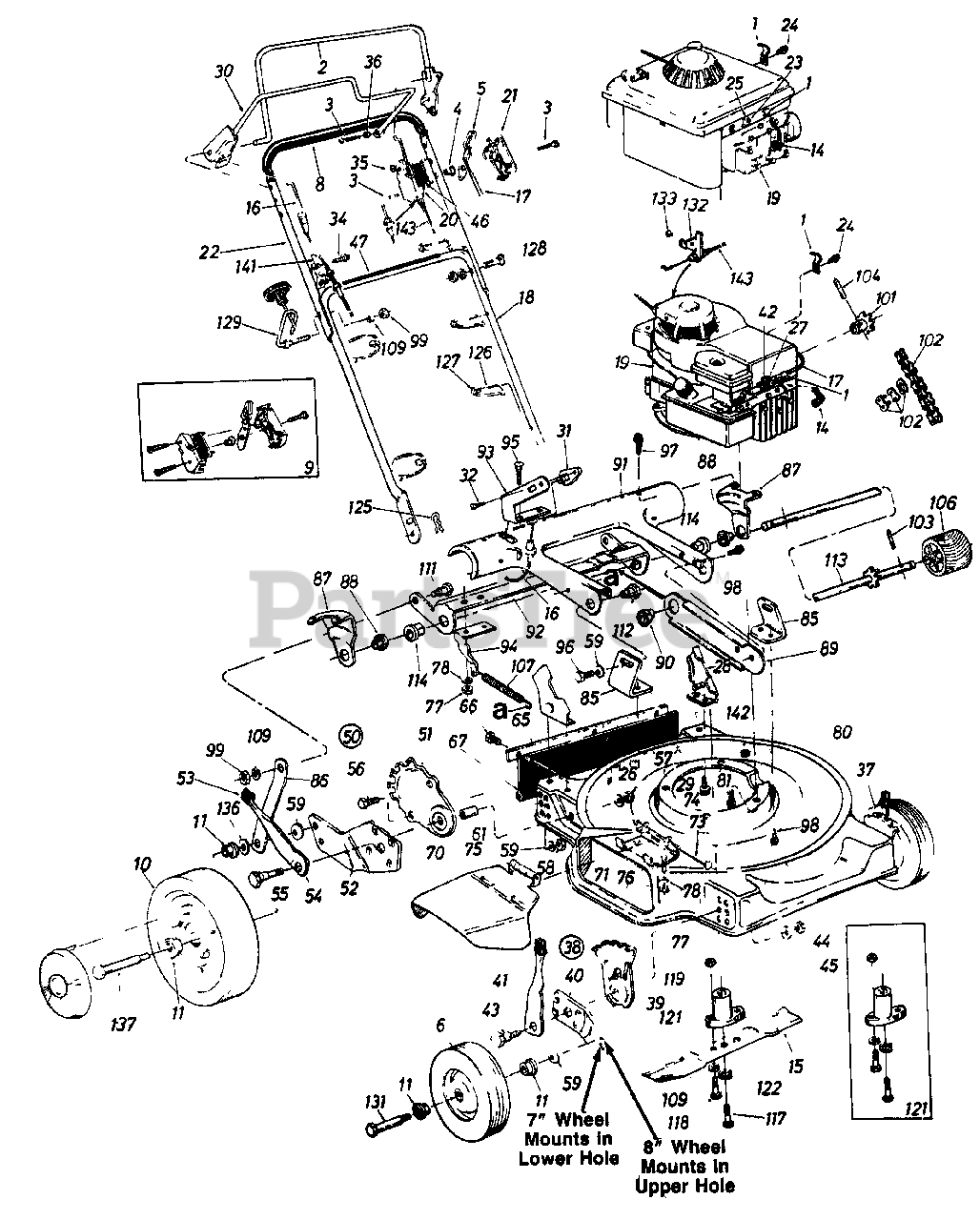

126-220-190 - White Outdoor Lawn Boss 22" Walk-Behind Mower (1986) Mower Assembly Parts Diagram

Lawn Boss 22" Walk-Behind Mower

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 12894

Casing Clamp

$

$

Not available

2

White Outdoor 14321

Control Handle Ass'y. L.H.

$

$

Not available

3

White Outdoor 710-0796

Truss Mach. Hi-B 0 Tap Scr. #12 x 1.5"

$5.49

$

In Stock, Qty 6

0

4

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

5

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

6

White Outdoor 734-0645

Front Wheel Ass'y. Comp.

$

$

Not available

8

718-0145

Grip

Note: (Optional)

$

$

Not available

9

White Outdoor 753-0430

Control Housing Comp.

$

$

Not available

10

White Outdoor 734-1204

Rear Wheel Ass'y Comp.

$

$

Not available

11

White Outdoor 741-0180

Fl Ball Brg. 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

White Outdoor 736-0169

L-Wash 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

White Outdoor 731-0124

Hub Cap

$

$

Not available

14

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

15

White Outdoor 742-0125

22" Blade
(Superseded to 942-0125B)

$

$

Not available

16

White Outdoor 746-0607

Clutch Cable w/ Spring 33"

$

$

Not available

17

White Outdoor 746-0632

Throttle Wire 53"
(Superseded to 946-0671A)

$13.99

$

In Stock, Qty 10

0

18

White Outdoor 749-0373

Lower Handle (Chrome)
(Superseded to 749-0928A)

$33.99

$

In Stock, Qty 10

0

19

Engine

$

$

Not available

20

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

21

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

22

White Outdoor 749-0536

Upper Handle (Chrome)
(Superseded to 749-0538E-0637)

$

$

Not available

23

White Outdoor 710-0227

Hex AB-Tap Scr. #8 x .50"

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

25

White Outdoor 751-0442

Casing Clamp

$

$

Not available

26

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 710-0429

Hex "B"-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

28

White Outdoor 12935

Handle Brkt. Ass'y L.H.

$

$

Not available

29

White Outdoor 710-0603

Hex B-Tap Scr. 5/16-18 x .5"

$4.49

$

Usually ships in 3-6 days

0

30

White Outdoor 16391

S.P. Bail Ass'y.

$

$

Not available

31

White Outdoor 746-0606

Barrel Cable Hold-Down R.H.

$

$

Not available

32

White Outdoor 710-0429

B-Tap Scr. #10 x .38 Lg.
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

?33

White Outdoor 12936

Handle Brkt. Ass'y R.H.

$

$

Not available

34

White Outdoor 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75"

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 736-0370

Spr-Wash. .206 I.D. x .448

$

$

Not available

36

White Outdoor 750-0649

Spacer .23 I.D. x .30 O.D.

$

$

Not available

37

White Outdoor 14579

Front Height Adj. Ass'y. L.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

38

White Outdoor 14578

Front Height Adj. Ass'y. R.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

39

White Outdoor 15261

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

40

White Outdoor 15262

Pivot Bar
(Superseded to 15262B)

Note: (7" Wheel Mounts in Lower Hole)(8" Wheel Mounts in Upper Hole)

$13.99

$

Usually ships in 3-6 days

0

41

White Outdoor 14832

Spring Lever Ass'y. w/ Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

42

White Outdoor 751-0369

Casing Clamp

$

$

Not available

43

White Outdoor 738-0507

Shld. Bolt .50 Dia. x .430
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

45

White Outdoor 736-0356

Bell-Wash. .39 I.D. x 1.38 O.D
(Superseded to 936-0356)

$

$

Not available

46

777-5774

Control Label

$

$

Not available

47

777-5776

Instruction Label

$

$

Not available

50

White Outdoor 14762

Rear Height Adj. Ass'y. R.H.

$

$

Not available

14763

Rear Height Adj. Ass'y. L.H.

Note: (Not Shown)

$

$

Not available

51

White Outdoor 14764

Index Plate
(Superseded to 14764C)

$7.99

$

Usually ships in 3-6 days

0

52

White Outdoor 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

White Outdoor 14766

Pivot Bar L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

53

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

54

White Outdoor 732-0417

Spring Lever
(Superseded to 732-0417A)

$12.99

$

Usually ships in 3-6 days

0

55

White Outdoor 738-0528

Shld. Bolt .50 Dia. x .433

$

$

Not available

56

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

57

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

58

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

59

White Outdoor 736-0105

Bell-Wash. .40 I.D. x .88 O.D.

$3.99

$

In Stock, Qty 20+

0

61

White Outdoor 750-0503

Spacer .383 I.D. x .503 O.D.
(Superseded to 950-0503)

$

$

Not available

65

White Outdoor 14846

Retaining Strip

$

$

Not available

66

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 X .62
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

67

White Outdoor 731-0575

Rear Flap Ass'y.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

70

White Outdoor 14944

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$67.99

$

In Stock, Qty 12

0

71

White Outdoor 11130

Adapter Plate

$

$

Not available

73

White Outdoor 711-0555

Pivot Pin

$

$

Not available

74

White Outdoor 726-0106

Push Nut 1/4"

$3.99

$

Usually ships in 3-6 days

0

75

White Outdoor 732-0253

Torsion Spring

$

$

Not available

76

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50 Lg.*
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

77

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

78

White Outdoor 736-0329

L-Wash. 1/4 I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

80

White Outdoor 14999

22" Deck Ass'y.

$

$

Not available

81

White Outdoor 710-0654

Hex TT-Tap Scr. 3/8-16 x 1.0
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

85

White Outdoor 14759

Pivot Brkt.

$

$

Not available

86

White Outdoor 16005

Link

$

$

Not available

87

White Outdoor 14757

Axle Brkt.

$

$

Not available

88

White Outdoor 741-0180

Fl. Ball Brg. 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

89

14877

Brg. Support

$

$

Not available

90

White Outdoor 741-0180

Fl. Ball Brg. 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

91

White Outdoor 16319

Pinion-Pivot Cover

$

$

Not available

92

White Outdoor 16332

Drive Engagement Cam

$

$

Not available

93

16534

Engagement Arm L.H.

$

$

Not available

94

16536

Spring Bracket

$

$

Not available

95

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

96

White Outdoor 710-0168

Hex Bolt 3/8-16 x .50 Lg.*

$3.99

$

Usually ships in 3-6 days

0

97

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 X .62
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

98

White Outdoor 710-0892

Hex AB-Tap 1/4 X .62"
(Superseded to 910-0892)

$

$

Not available

99

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

101

White Outdoor 713-0308

1OT Sprocket Ass'y.

$

$

Not available

102

White Outdoor 713-0311

#48 Chain 1/2" Pitch 50 Links
(Superseded to 913-0311)

$31.99

$

Usually ships in 3-6 days

0

White Outdoor 713-0122

Master Link
(Superseded to 913-0122)

Note: (Service Only)

$

$

Not available

103

White Outdoor 715-0246

Spring Pin Spir. 3/16 Dia. x 1.25
(Superseded to 915-0246)

$6.49

$

In Stock, Qty 9

0

104

White Outdoor 715-0247

Spring Pin Spir. 3/16 Dia. x 1.0
(Superseded to 915-0247)

$

$

Not available

106

White Outdoor 731-0807

Drive Pinion

$

$

Not available

107

White Outdoor 732-0428

Extension Spring 4.25 Lg.
(Superseded to 732-0428B)

$11.99

$

In Stock, Qty 6

0

109

White Outdoor 736-0119

L-Wash. 5/16 I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

111

White Outdoor 738-0155

Shld. Bolt .437 Dia. x .162
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

112

White Outdoor 738-0529

Shld. Nut .625 Dia. x .165
(Superseded to 938-0529)

$10.99

$

In Stock, Qty 5

0

113

White Outdoor 738-0530

Pinion Shaft w/ 7T Sprocket

$

$

Not available

114

White Outdoor 741-0484

Fl. Ball Brg. .501 I.D.
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

117

White Outdoor 710-0331

Hex Bolt 3/8-24 x 2.25

$6.49

$

In Stock, Qty 8

0

118

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.0 Spec.

$3.99

$

In Stock, Qty 11

0

119

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

121

753-0348

Blade Adapter Kit

$

$

Not available

122

White Outdoor 736-0217

L-Wash. 3/8 I.D. H.D.

$3.99

$

In Stock, Qty 13

0

125

White Outdoor 714-0104

Intern. Cot. Pin 5/16 Dia.

$3.99

$

In Stock, Qty 20+

0

126

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

127

White Outdoor 726-0241

Cable Anchor
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

128

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

129

White Outdoor 710-0842

Rope Guide Bolt

$

$

Not available

131

White Outdoor 710-0347

Front Axle Bolt

$4.99

$

In Stock, Qty 20+

0

132

White Outdoor 14924

Cable Bracket

$

$

Not available

133

White Outdoor 728-0171

Pop Rivet .156" Dia. x .379

$

$

Not available

136

White Outdoor 736-0192

Fl-Wash. .531 I.D. x .93 O.D.

$3.99

$

In Stock, only 2 left!

0

137

White Outdoor 738-0144

Rear Axle Bolt
(Superseded to 938-0144)

$

$

Not available

141

White Outdoor 16309

Cable Brkt.
(Superseded to 16309A)

$

$

Not available

142

White Outdoor 731-0564

Plastic Plug

$

$

Not available

143

White Outdoor 746-0476

Control Cable 39" (Green)
(Superseded to 946-0476A)

$

$

Not available

8222-000-6

Hardware Pack

$

$

Not available
