126-367-190 - White Outdoor Lawn Boss 22" Walk-Behind Mower (1986) Mower Assembly Parts Diagram

Lawn Boss 22" Walk-Behind Mower

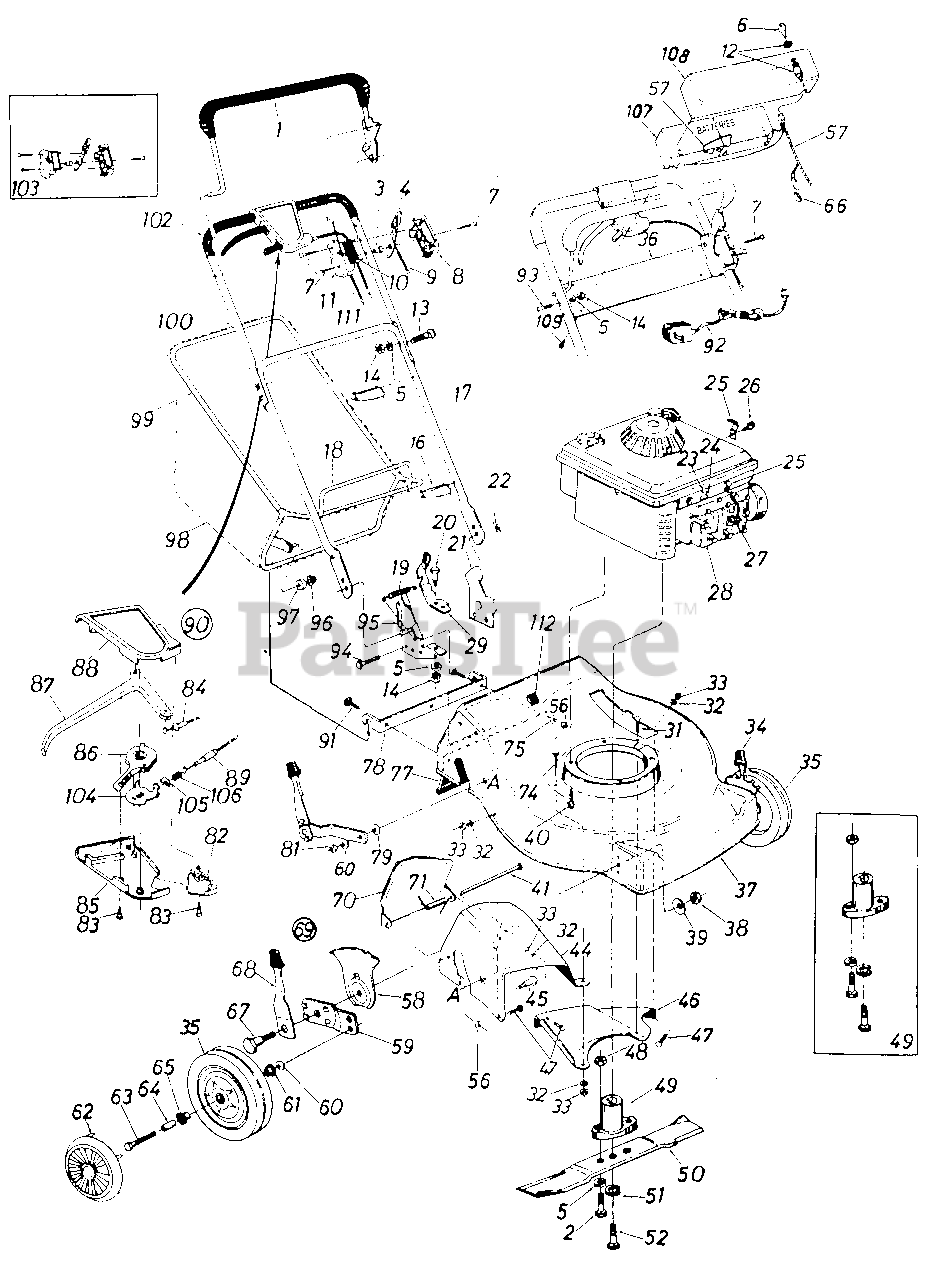

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 731-0609

L.H. Bail Ass'y.

$

$

Not available

2

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$3.99

$

In Stock, Qty 11

0

3

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

4

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

5

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

7

White Outdoor 710-0796

Truss Mach. Hi-B 0 Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, Qty 6

0

8

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

9

White Outdoor 746-0633

Throttle Control Wire 58"
(Superseded to 946-0674A)

$17.99

$

In Stock, Qty 5

0

10

777-5774

Control Label

$

$

Not available

11

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

12

White Outdoor 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

13

White Outdoor 710-0405

Carr. Bolt 5/16-18 x 1.75"
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

16

White Outdoor 726-0241

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

17

White Outdoor 749-0505

Lower Handle
(Superseded to 749-0907B)

$46.99

$

In Stock, Qty 7

0

18

White Outdoor 14582

Lower Frame Ass'y.

Variations

White Outdoor 14582-0637

No Longer Available FRAME-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

19

White Outdoor 732-0357

Extension Spring
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

20

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

21

14158

Handle Brkt. Ass'y. L.H.

$

$

Not available

22

White Outdoor 714-0104

Hairpin Cotter 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 751-0442

Casing Clamp

$

$

Not available

24

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

25

White Outdoor 12894

Cable Clip

$

$

Not available

26

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

27

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

28

Engine

$

$

Not available

29

White Outdoor 14845

Lock Lever w/ Knob

$

$

Not available

31

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

33

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

34

White Outdoor 14579

Height Adj. Ass'y. L.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

35

White Outdoor 734-0645

Front Wheel Ass'y. Comp.

$

$

Not available

36

16542

Lower Battery Tray

$

$

Not available

37

White Outdoor 16327

22" Deck Ass'y.

Variations

White Outdoor 16327-0638

No Longer Available DECK ASSEMBLY-22IN - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

38

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

39

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

White Outdoor 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

41

White Outdoor 738-0386

Hinge Pin

$

$

Not available

44

White Outdoor 14236

Rear Chute R.H.

$

$

Not available

45

White Outdoor 738-0430

Shld. Bolt.500" Dia.

$10.99

$

In Stock, Qty 5

0

46

14014

Rear Baffle L.H.

$

$

Not available

47

White Outdoor 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

48

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

49

753-0348

Blade Adapter Kit

$

$

Not available

50

White Outdoor 742-0125

22" Blade
(Superseded to 942-0125B)

$

$

Not available

51

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$3.99

$

In Stock, Qty 13

0

52

White Outdoor 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.49

$

In Stock, Qty 8

0

56

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

57

725-1230

Wire Harness

$

$

Not available

58

White Outdoor 15261

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

59

White Outdoor 15262

Wheel Pivot Bar
(Superseded to 15262B)

$13.99

$

Usually ships in 3-6 days

0

60

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

61

White Outdoor 741-0267

Flg. Ball Brg. 3/8" I.D.

$

$

Not available

62

White Outdoor 731-0124

Plastic Hub Cap

$

$

Not available

63

White Outdoor 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$4.99

$

In Stock, Qty 20+

0

64

White Outdoor 750-0434

Spacer .375" I.D.

$6.49

$

Usually ships in 3-6 days

0

65

White Outdoor 741-0484

Flg. Ball Brg. 1/2" I.D.
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

66

White Outdoor 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

67

White Outdoor 738-0507

Shld. Bolt .50" Dia. x .430
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 14832

Spring Lever Ass'y. w/ Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

69

White Outdoor 14578

Height Adj. Ass'y. R.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

70

White Outdoor 13407

Chute Door

$

$

Not available

71

White Outdoor 732-0346

Torsion Spring

$

$

Not available

74

White Outdoor 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.49

$

Usually ships in 3-6 days

0

75

White Outdoor 736-0211

Fl-Wash. .285" I.D. x 1.25"

$6.49

$

In Stock, Qty 8

0

77

White Outdoor 731-0664

Rear Flap

$

$

Not available

78

White Outdoor 14012

Grass Catcher Hitch Brkt.

$

$

Not available

79

White Outdoor 736-0219

Bell-Wash. .40" I.D. x 1.13"
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

81

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 731-0763

Cable Mounting Cap

$

$

Not available

83

White Outdoor 710-0841

Flat "C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$3.99

$

Usually ships in 3-6 days

0

84

White Outdoor 746-0466

S.P. Cable x 53" Lg.
(Superseded to 946-0466)

$

$

Not available

85

White Outdoor 731-0762

3-Sp. S.P. Control Lower Cover

$

$

Not available

86

White Outdoor 717-0822

Shimano 3-Sp. Shift Lever

$

$

Not available

87

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

88

White Outdoor 731-0761

3-Sp. S.P. Control Upper Cover

$

$

Not available

89

White Outdoor 717-0823

Shimano 3-Sp. Solid Shift Cable

$

$

Not available

90

White Outdoor 753-0417

Clutch Control Hsg. Comp.

$

$

Not available

91

White Outdoor 710-0703

Carr. Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

92

White Outdoor 725-0727

Battery Charger
(Superseded to 925-0727)

$72.99

$

In Stock, only 1 left!

0

93

White Outdoor 710-0671

Carr. Bolt 5/16-18 x 1.38"

$

$

Not available

94

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.49

$

In Stock, Qty 9

0

95

14752

Handle Brkt. Ass'y. R.H.

$

$

Not available

96

White Outdoor 726-0100

Push Nut 3/8" Rod

$3.99

$

In Stock, Qty 8

0

97

White Outdoor 731-0430

Plastic Roller

$

$

Not available

98

White Outdoor 764-0171

Grass Bag
(Superseded to 964-0171B)

$

$

Not available

99

White Outdoor 749-0278

Catcher Upper Frame

$

$

Not available

100

749-0437

Upper Handle

$

$

Not available

102

718-0145

Grip

$

$

Not available

103

White Outdoor 753-0431

Control Housing Comp.

$

$

Not available

104

White Outdoor 717-0827

Shimano 3-Sp. Shift Lever Brkt.

$

$

Not available

105

717-0829

Shimano 3-Sp. Cable Spring Brkt.

$

$

Not available

106

717-0828

Shimano 3-Sp. Cable Mounting Spring

$

$

Not available

107

White Outdoor 725-1105

Battery Pack

$

$

Not available

108

731-0809

Battery Tray

$

$

Not available

109

White Outdoor 710-0969

Truss Mach. Hi-Riser Tap Scr. 1" Lg.

$4.49

$

In Stock, only 3 left!

0

111

White Outdoor 746-0477

Clutch Control Cable
(Superseded to 946-0477A)

$

$

Not available

112

White Outdoor 731-0564

Plug

$

$

Not available

8367-000-6

Hardware Pack

$

$

Not available
