126-560-190 - White Outdoor Lawn Boss 26" Walk-Behind Mower (1986) Deck Assembly Parts Diagram

Lawn Boss 26" Walk-Behind Mower

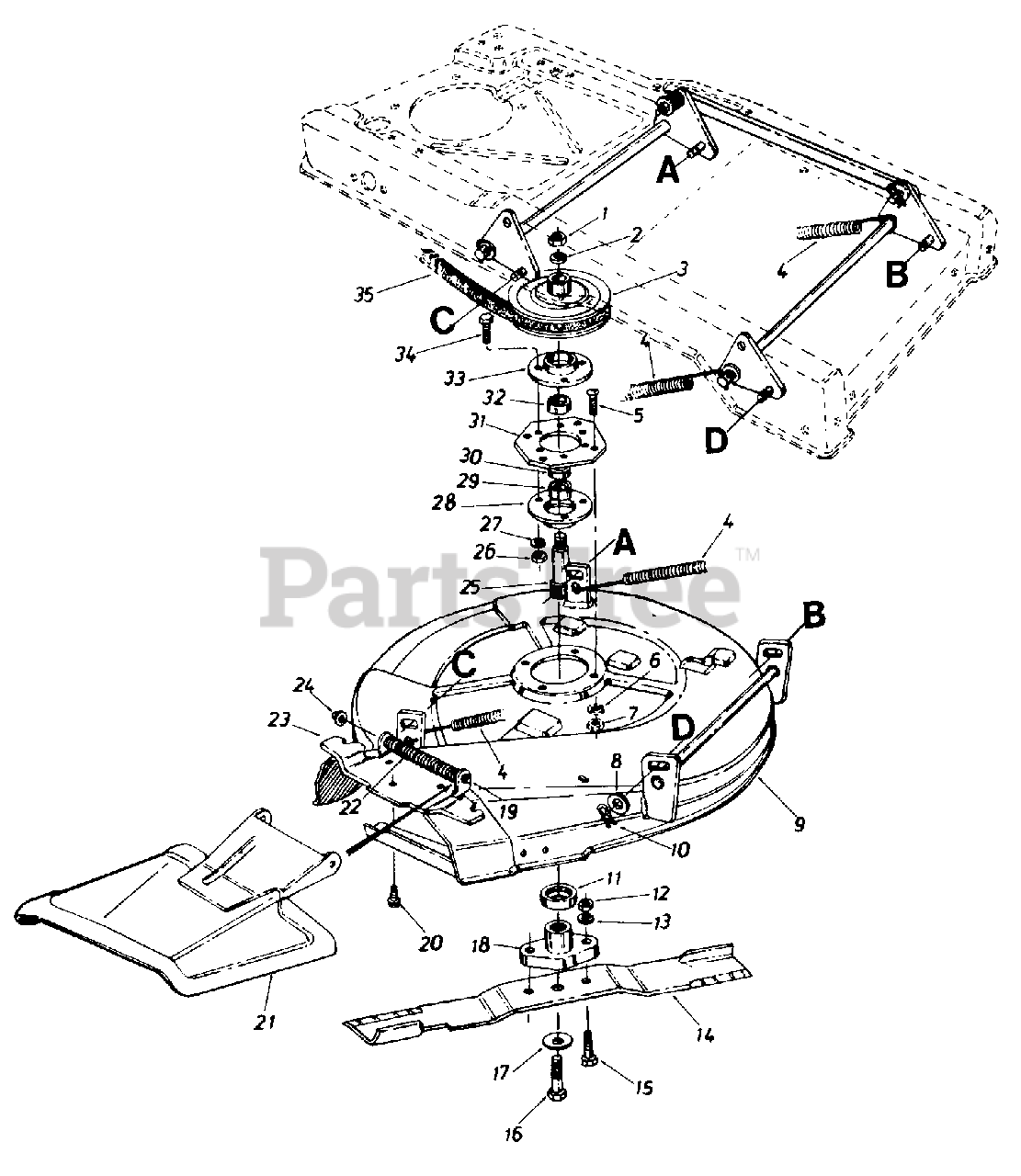

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 712-0318

Hex Jam Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 11

0

2

White Outdoor 736-0317

Bell-Wash. .630" l.D. x 1.25" O.D.

$8.49

$

In Stock, Qty 20+

0

3

756-0484

5/8" "V"-Pulley .75" I.D. x 9.5"

$

$

Not available

4

White Outdoor 732-0529

Extension Spring .56" O.D. x 10.5

$

$

Not available

5

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

8

White Outdoor 736-0272

Fl-Wash. .510" I.D. x 1.0" O.D.

$5.49

$

In Stock, Qty 20+

0

9

16499

26" Deck Ass'y.

$

$

Not available

10

White Outdoor 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

11

White Outdoor 13703

Bearing Shield

$

$

Not available

12

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

13

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 742-0147

Blade 26"
(Superseded to 942-0147)

$

$

Not available

15

White Outdoor 710-0888

Hex Bolt Special 5/16-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 8

0

16

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.99

$

In Stock, Qty 18

0

17

White Outdoor 736-0356

Bell-Wash. .391" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

18

White Outdoor 748-0300

Blade Adapter

$14.99

$

In Stock, Qty 20+

0

19

White Outdoor 711-0571

Hinge Pin

$

$

Not available

20

White Outdoor 710-0599

Hex Wash. Hd. TT-Scr. 1/4-20

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 11571

Chute Cover Ass'y.

$

$

Not available

22

White Outdoor 732-0261

Torsion Spring

$

$

Not available

23

White Outdoor 11396

Adapter Plate

$

$

Not available

24

White Outdoor 726-0106

Cap Speed Nut 1/4" Rod

$4.49

$

Usually ships in 3-6 days

0

25

White Outdoor 738-0578

Blade Spindle 4.42" Lg.

$

$

Not available

26

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

27

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 08253

Bearing Housing 1.85
(Superseded to 08253B)

$20.99

$

In Stock, only 4 left!

0

29

White Outdoor 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

30

White Outdoor 750-0456

Spacer 1.0" O.D. x .790" I.D. x.350" Lg.

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 16490

Spindle Mounting Plate

$

$

Not available

32

White Outdoor 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

33

White Outdoor 15296

Open Brg. Housing 1.85
(Superseded to 15296A)

$9.49

$

In Stock, Qty 11

0

34

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 754-0326

"V"-Belt
(Superseded to 954-0326)

$59.99

$

Usually ships in 3-6 days

0
