126-6122 - Exmark Ultra Vac Bagger for Radius Mower (SN: 402082300 - 404314158) (2018) Bagger Top and Mounting Assembly Parts Diagram

Ultra Vac Bagger for Radius Mower

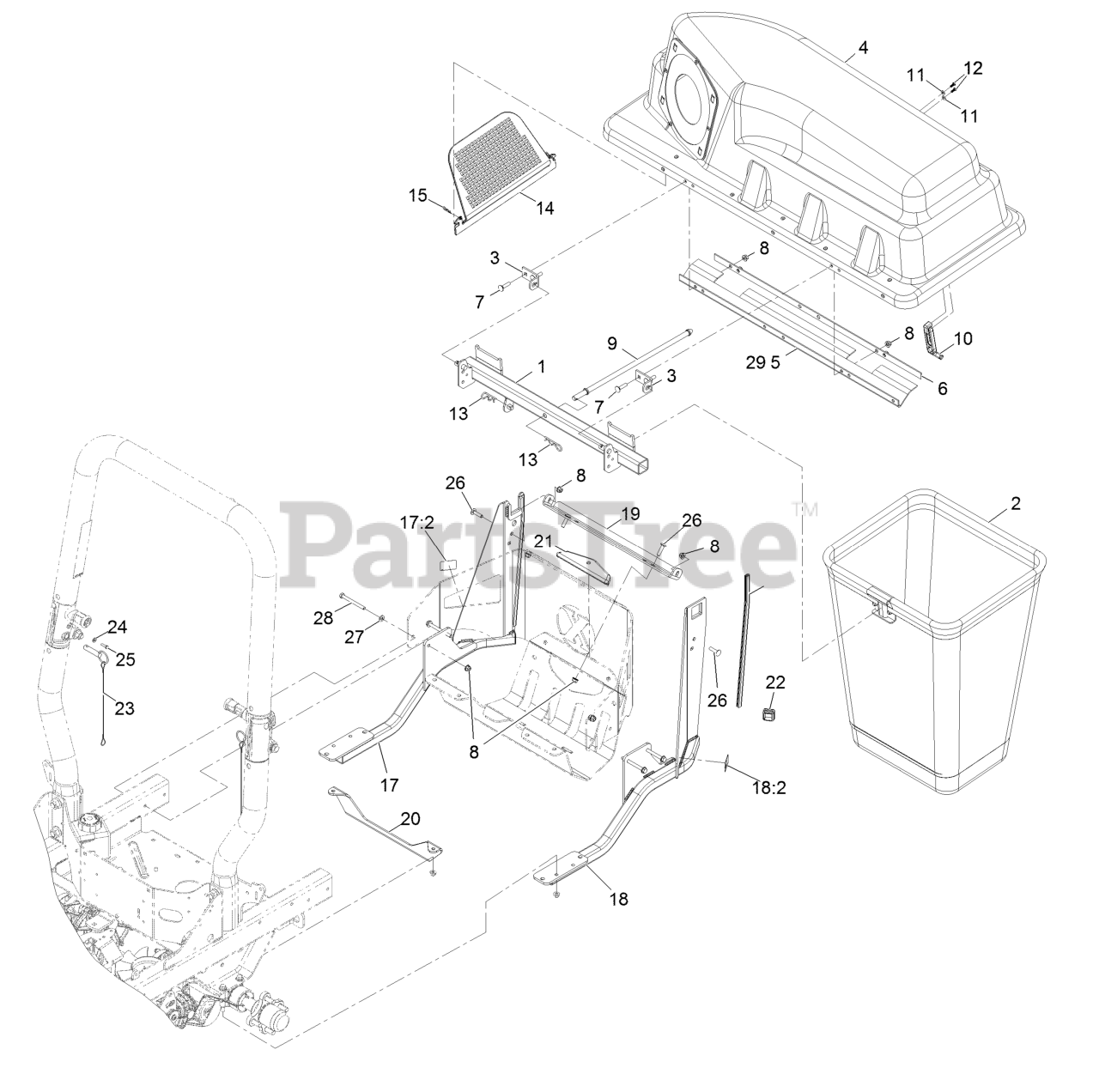

Bagger Top and Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-4783-03

Frame Pivot ASM

$174.99

$

Usually ships in 3-6 days

0

2

Exmark 116-0754

Bag And Frame ASM

$185.99

$

In Stock, only 2 left!

0

3

Exmark 112-3987

Bracket-Pivot, Hopper

$7.99

$

Usually ships in 3-6 days

0

4

Exmark 116-4537

Bagger Hood ASM

$499.99

$

Usually ships in 3-6 days

0

5

Exmark 116-4126

Seal

$31.99

$

In Stock, only 2 left!

0

6

Exmark 116-4127-03

Plate-Backing

$21.99

$

Usually ships in 3-6 days

0

7

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-6491

Rod-Hold Down, Hood

$56.99

$

Usually ships in 3-6 days

0

10

Exmark 116-4992

Latch-Rubber

$49.99

$

In Stock, only 1 left!

0

11

Exmark 3256-77

Washer-Flat

$2.49

$

In Stock, only 2 left!

0

12

Exmark 107-7461

Screw-Plastite

$1.49

$

In Stock, only 3 left!

0

13

Exmark 3290-355

Pin-Hair

$2.49

$

In Stock, Qty 20+

0

14

Exmark 112-3993

Screen-Bagger

$29.99

$

In Stock, only 2 left!

0

15

Exmark 3290-307

Pin-Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

17

Exmark 126-9662

RH Bagger Support ASM

$247.99

$

Usually ships in 3-6 days

0

17:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

18

Exmark 126-9663

LH Bagger Support ASM

$247.99

$

Usually ships in 3-6 days

0

18:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

19

Exmark 126-7612-03

Angle-Support

$35.99

$

Usually ships in 3-6 days

0

20

Exmark 126-5672-03

Support-Transmission

$35.99

$

Usually ships in 3-6 days

0

21

Exmark 126-8299

Cover-Hitch

$7.99

$

Usually ships in 3-6 days

0

22

Exmark 126-9159

Plug

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 106-9951

Hitch Pin ASM

$51.99

$

In Stock, only 2 left!

0

24

Exmark 3256-14

Washer-#10 Std

$0.99

$

In Stock, Qty 20+

0

25

Exmark 32104-4

Screw

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 3230-29

Screw-CARR

$2.99

$

In Stock, Qty 5

0

27

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

28

Exmark 126-8742

Screw-HH

$1.49

$

In Stock, only 4 left!

0

29

Exmark 126-9923

Strip-Trim

$7.99

$

0
